Specifications
BX1-2 ac arc welding machine/equipment1.moving coil type transformer,suitable for 220v/380v AC supply
2.automatic temperature
eDON-let arc connect the world

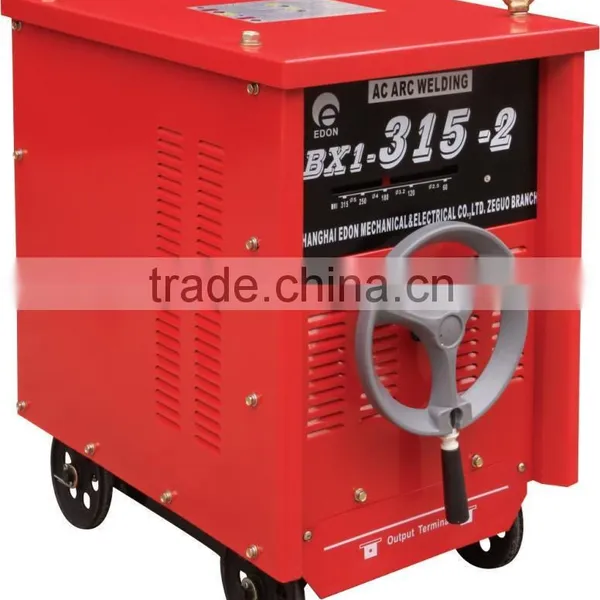

BX1-2 ac arc welding machine/equipment
pass ISO9001system,and CCC certificate
our guarantee-your select
compact,light,easy to carry
Provided with automatic temperature protector and air-cooling unit,and high efficiency and safety
Application:
suitable for welding ferrous metal workpiece with general AC electrode
parameter:
ITEM |
BX1-200-2 |
BX1-250-2 |
BX1-315-2 |
BX1-400-2 |
BX1-500-2 |
BX1-630-2 |
Iput voltage(V) |
380/220 |
380/220 |
380/220 |
380 |
380 |
380 |
Frequency(hz) |
50 |
50 |
50 |
50 |
50 |
50 |
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
Current range(A) |
50-200 |
50-250 |
65-315 |
80-400 |
100-500 |
125-630 |
Rated input capacity(KVA) |
12.2 |
15.8 |
23.2 |
30.3 |
39.5 |
50.4 |
No-load voltage(V) |
58 |
60 |
70 |
72 |
75 |
76 |
Duty cycle(%) |
35 |
35 |
35 |
35 |
35 |
35 |
Usable electrodes(mm) |
2-3.2 |
2-4 |
2.5-5 |
2.5-5.8 |
3.2-6 |
3.2-8 |
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
Insulation class |
F |
F |
F |
F |
F |
F |
N.w/G.w(Copper)(KG) |
65/72 |
75/83 |
81/92 |
95/104 |
106/118 |
125/139 |
N.w/G.w(AL)(KG) |
62/70 |
68/76 |
72/80 |
81/90 |
95/107 |
112/125 |
Carton size(mm) |
520*420*690 |
520*420*690 |
585*445*695 |
585*445*695 |
645*485*770 |
645*485*770 |
