Help CenterDinghua DH-5860 Pratical and Popular Bga Tool Stand for zd Electric Car Led Bulb Xbox 360 Motherboard
Related Products
-
Dinghua DH-A1 BGA Kit Bga Chip Removal Machine Rework Vga Gpu Cpu MotherboardUS$ 399 - 1,599MOQ: 1 Set -
Dinghua DH-C1 Infrared BGA Welding Soldering Machine for Ps4 Console 500gb Latest 5g Mobile Phone in PakistanUS$ 299 - 1,199MOQ: 1 Set
-
Dinghua DH-A1 Bga Rework Kit Laptop Xbox 360 IPad Diagnostic Station With Desoldering Wick for Computer in ChinaUS$ 599 - 1,599MOQ: 1 Set
-
Dinghua DH-A1 Bga Machine Laptop Chip Desoldering Computer tv Welding for Price Check South AfricaUS$ 899 - 1,599MOQ: 1 Set
-
South Bridge Repair Low Cost BGA Reflow Station DH-G200US$ 1 - 4,199MOQ: 1 Set
Soldering iron stand/tool reworking bga chip, electrical car and other boards made in accross the world

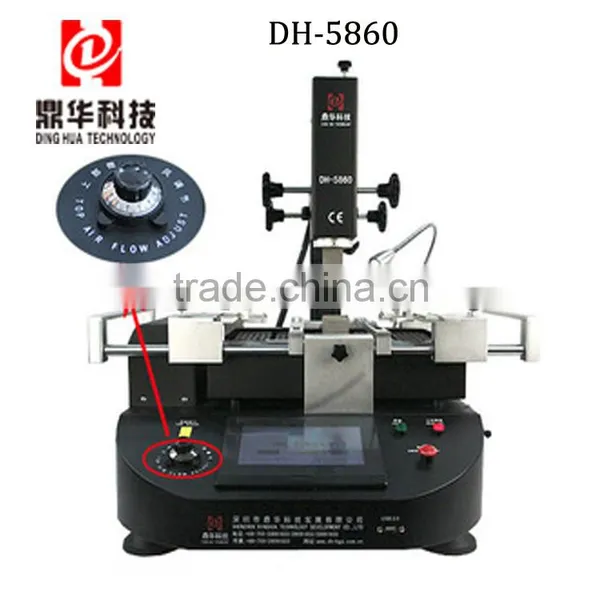

DH-5860 Main Functions
1. Adopt linear slide which makes X, Y, Z axis all can do micro adjust or rapid positioning, with high precision, easy operation.
2. High definition touch screen (Taiwan) , PCL control, can save multiple groups profile, password protection and modify function, equipped with instant temperature curve analysis function;
3. There are 3 independent heating areas. The 1st and 2nd are hot-air heaters, the 3rd is IR preheating.
4. Offer all kinds of hot-air nozzle, it can rotate 360°. With magnet, easy to install and change, customized is available;
5. K-type thermocouple (closed loop), heating independently, temperature precision within ± 3degree.

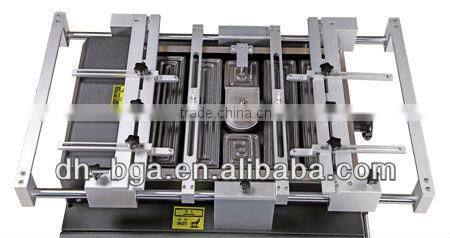

6. V-groove PCB support can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair.
7. powerful cross-flow fan rapidly cool the PCB board to improve efficiency; Also built-in vacuum pump and external vacuum suction pen, pick up the chips rapidly.
8. After finishing de-soldering & soldering, There is an alarming and alarming in advance.
9. CE certificate, with emergency stop and Automatic power-off protection device when abnormal accident happens;with a double overheating protection control.
DH-5860 Specification
Total Power |
4800W |
Top heater |
800W |
Bottom heater |
Second heater 1200W, IR preheating 2700w |
Power |
AC220V±10% 50/60Hz |
Dimensions |
L635*W600*H560 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2°C |
PCB size |
Max 450*550 mm Min 20*20 mm |
BGA chip |
2*2~80*80 mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1 pc (optinal) |
Net weight |
45KG |

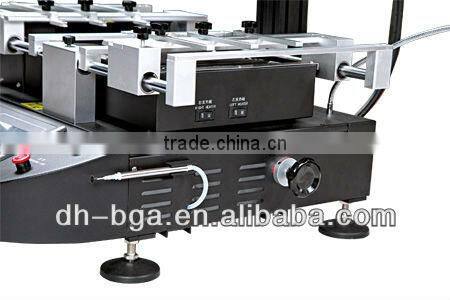

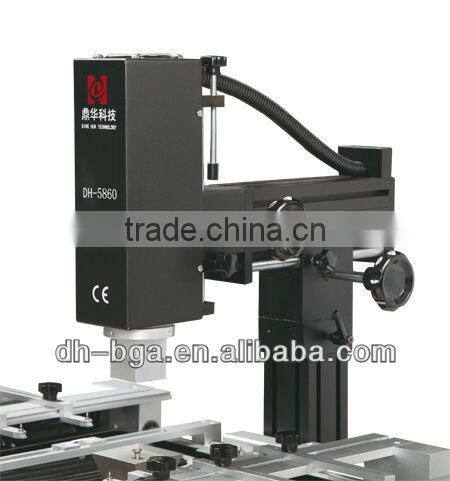

Related details photos
SHIPPING
EMS,DHL,UPS,TNT,FEDEX,CHINA POST,AIR FREIGHT,SEA FREGHT
The shipping cost are weight-based .
Normally,it takes about 3 working days to USA and 4 days to European countries ,and more than 3 days for slow expresses. We can ship as your request and help to find the most cost-efficient and fast way
Once upon delivery, We will send your tracking Number immediately
HOW TO ORDER
1.Tell us which model,quantity you need to order
2.We will make PI for your order
3.After PI confirmation, we will send the goods to you ASAP when we get your payment
4.Send the tracking number to you until you get your goods
PAYMENT TERMS
1.Paypal
2.Western Union
3.T/T
