Silicon Dispensing Robot Controller/silicon Sealant Cartridge Filling Machine TH-2004D-300KG

Silicon Dispensing Robot Controller/silicon Sealant Cartridge Filling Machine TH-2004D-300KG thumbnail-1
Silicon Dispensing Robot Controller/silicon Sealant Cartridge Filling Machine TH-2004D-300KG thumbnail-2

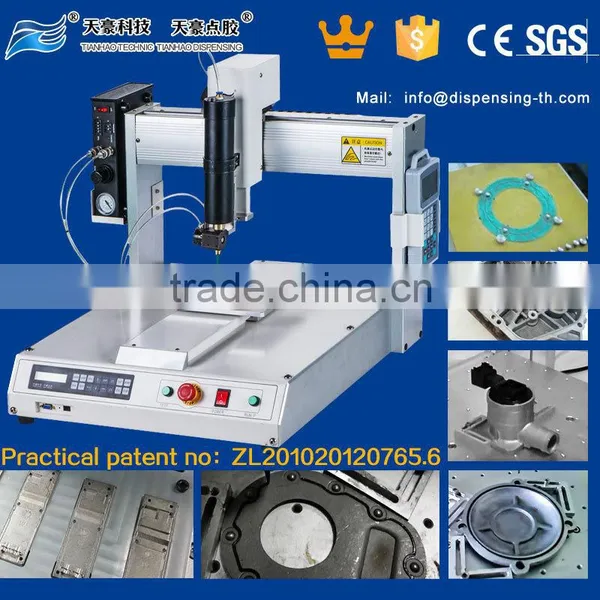

Silicon Dispensing Robot Controller/silicon Sealant Cartridge Filling Machine TH-2004D-300KG photo-1

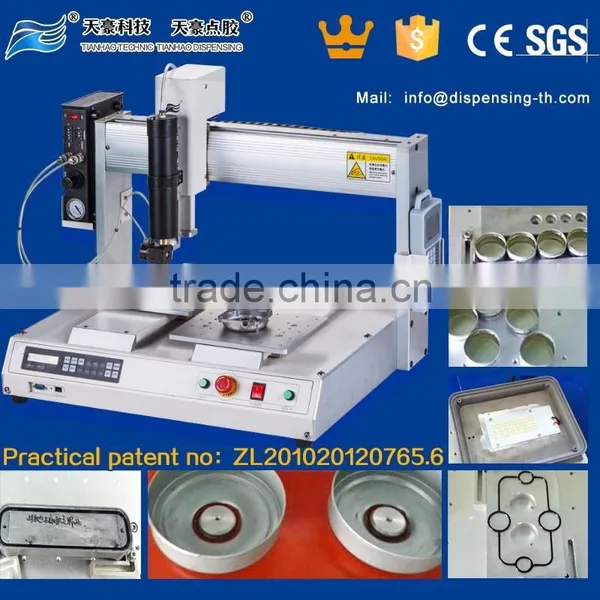

Silicon Dispensing Robot Controller/silicon Sealant Cartridge Filling Machine TH-2004D-300KG photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Tianhao Dispensing
Model Number:
TH-2004D-KG
Contact Supplier Request Quote Chat Now
Cixi Tianhao Electric Technic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Tianhao Dispensing
Model Number TH-2004D-KG



Model:

TH-2004D-300KG   silicon dispensing robot controller/silicon sealant cartridge filling machine



TH-2004D-300KG silicon robotic dispensing equipment with pneumatic cartridge dispenser,3D dispensing of adhesives, silicones,glue automatic dispensing ,Usually in 300ml.400ml.500ml.600ml polyethylene-aluminum packed silicones robotic dispensing.

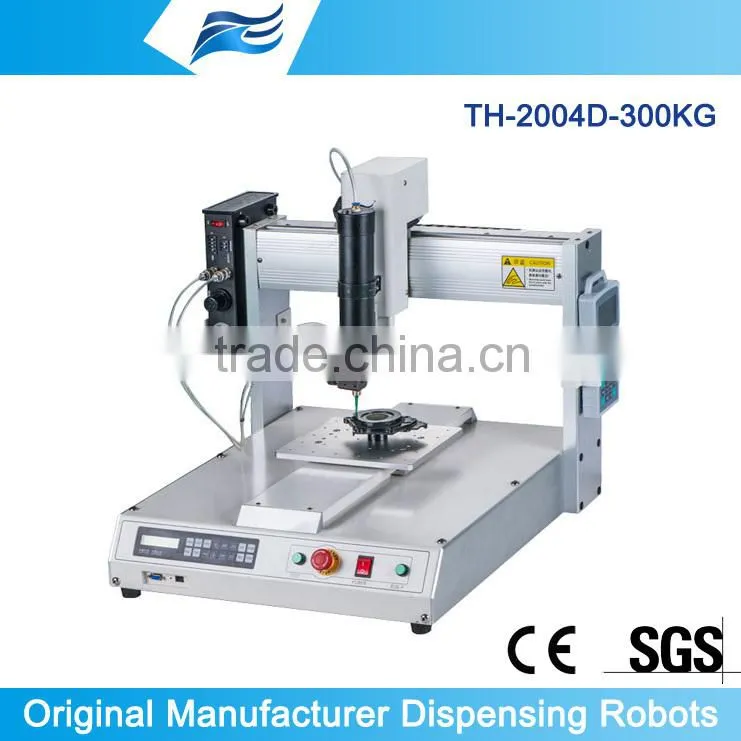

Product pictures:   silicon dispensing robot controller/silicon sealant cartridge filling machine



silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG





Sales Points/Focus and Structure picture


this machine main using for silicon dispensing.the dispensing speed speed faster old equipment
Usually in 300ML.400ml.500ml.600ml polyethylene-aluminum packed silicon dispensing and coating glue.
E.g.. Glass glue, silicon glue, seal glue.
other our equipment with brake motors, when have no electric, the Z axis no possible down.




1. Have rapid emptying and transient back to the lock function, the glue can easily be turned off and not provide residue.

2. As different material can be packed it’s required to select a differential feed system, eg.hard pack, soft pack, bottled.

3. A Professional dispensing software combination of feed system and arm running control to achieve the synchronization control.Teach Pendant Chinese/English edit programs interface



Z-axis have brake motors, greatly increasing the stability of the equipment and its motion accuracy.when that 6kg maximum z axis load will remain in a upper position after switching off the power.



5. User-friendly design features a lightweight, attractive appearance, easy to learn. Interpolates lines or arcs for three-dimensional dispensing.,Continuous path motion for precise XYZ dispensing. The right deposit, in the right place — every time.





6.Single machine can operate.Avoid staff misuse, or change has set a good program,When you finish the program edit by the soft control key directly control robot work without the need for an external Teach Pendant.



7.Easy maintenance. Even if the teaching Pendant and liquid controller have problems, there will not have no affect the machine ‘s work.Single machine can operate.



8.Increase the parameters display with programmer, which will provide you more intuitive operation.



9.Tianhao graphics editing software can import such as NC, AI, DXF, JPG, BMP and other format files ,CAD file directly change to the dispensing path.



10.the Z-axis have brake motors, greatly increasing the stability of the equipment and its motion accuracy.when that 6kg maximum z axis load will remain in a upper position after switching off the power.



11.Each axis with 2 linear guide rail will provide you better stability.



12.As customer production require add the I / O interface, easy add other equipment device,Flexible power supply design for overseas use.





13.XY/Z Maximum Load 15KGS/6KGS



14.Repeatability: +-0.01 mm/ axis,3 axis  synchronous work get +-0.01 mm/axis, other competitors no possible 3 axis get this precision at same time.



15.Transmission:new timing belt/precision linear Guides.



16..Drive System: new precision micro-stepper motor.

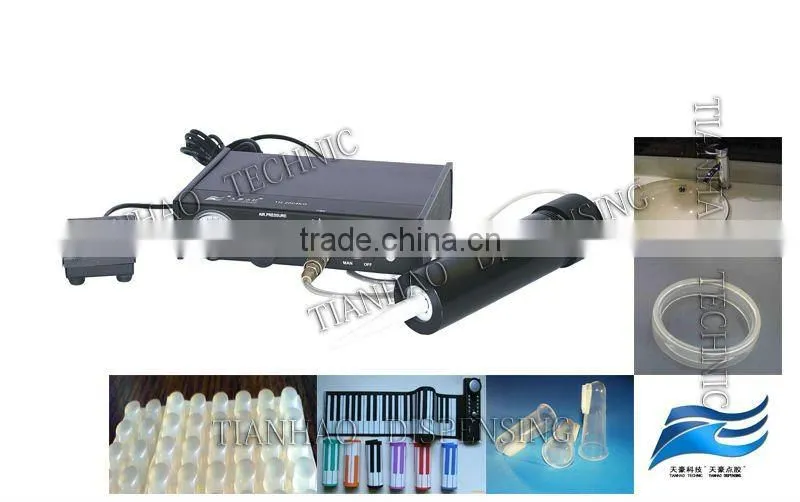

Feed system:

Standard :300ml 500ml 600ml cartridge silicon



Main specification



ITEM

TH-2004D-300KG

TH-2004D-400KG

TH-2004D-500KG

X/Y/Z working range

300 x 300 x 100mm

400 x 400 x 100mm

500 x 500 x 100mm

Standard

CE Approved

XY/Z Maximum Load

15 kg / 6 kg

XY/Z  Speed

0.1-800/350 mm/Axis

Repetitiveness

±0.01mm/Axis

Data memory capacity

999programs

Display way

LCD display

Drive System

Precision micro-stepper motor

Transmission

Timing Belt/ Precision Linear Guides

Edit Programming

 Handheld Programmer

I/O Signals

4 Inputs / 4 Outputs

Patterns

 Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting

Power Supply

AC110V/220V Internal conversion

Working Temperature

0-40°C

Relative Humidity

20-90% (no condensation)

Dimensions (W x D x H) mm

65X55X65

75x64x65

84x75x78

Weight

41kgs

46kgs

54kgs



Complete accessories dispensing kit



No

Name

ITEM

QTY

Part#

1

TH-2004D Robotic

TH-2004D

1pcs

TH-2004D

2

Liquid dispenser

TH-2004KG

1pcs

TH-2004K

3

Dispensing signal line

3core-4core

1pcs

TH-DSL02

4

Dispenser fix frame

TH

1pcs

TH-DXF03

5

Teach pendant/fix frame

TH

1pcs

TH-DT001

6

Teach pendant Cable line

TH

1pcs

TH-DTC01

7

Fix broad with valve

TH

1pcs

THDXF04

8

Silicon valve

TH-300J

1pcs

TH-600J

9

     Air tube

     using for valve

     2pcs

THA

10

needle

TH

10PCS

TH

11

POWER cord 220V220V

220V

2pcs

THP06

12

Air tube

6X4mm

1pcs

THA

13

Tool

TH

1set

TH-T04

14

Jig

As sample

1set

THC

15

Screw

TH

1set

TH-DS05

16

     Connect Drawing

TH

1pcs



17

Manual operation

TH

1pcs



18

     CD

TH

1pcs



19

     Ex-work Report

TH

1PCS



20

     Machinery certificate

TH

1PCS



21

Warranty card

TH

1PCS



22

CE certificate

TH

1pcs





Package:



Items per Carton:

1 Units / Carton

Package Measurements:



65X55X65

CM

Gross Weight:

41KG

silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG



Delivery in 3 workday after received your payment

Shipping ways by TNT.ups,dhl.fedex

Loading port:Ningbo or shanghai





Our Service: Your satisfactory, our pursuit!

1,Your inquiry will be replied in 24 hours.

2,Offer free spare parts and service within one year of warranty,

3,Technology Support Provide Demo operation video for training; If you have time,

welcome to our company, Will arrange engineers to show you the operation.

4, Professional after-sales service team;

5,Give great discount to AGENCY to ensure agents profit.

Our product can help you to achieve the goal :

  • Increase production efficiency
  • Promotion processing precision control
  • Improve product quality
  • lower production costs, reduce rejected product
  • Eliminate material waste

Available Dispensed Material

UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.

Application Area

1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.

2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.





Related products



silicon dispenser





silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG



OUR CERTIFICATE



We provide 1 years warranty of product and shipment with one set fitting to you

silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG





Factory Show

silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG



Production room

silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG

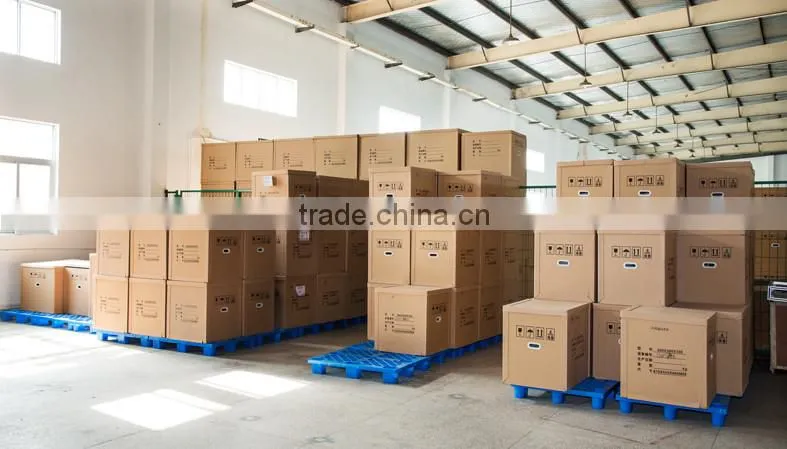

Warehouse

silicon dispensing robot controller/silicon sealant cartridge filling machine TH-2004D-300KG

Our advantages:



1. Original Manufacturer/factory



2. High reputation around the china



3. 10 years experience of glue dispensing machine



4. Best quality and good work



5. High grade components



6. Special dispensing software, both Chinese and English interface



7. Professional service and technology support



8. All models with CE approved;



9. OEM services accepted



Our product:

  • 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision ,high efficiency production processes control
  • Dispenser.mix/meter dispensing system - for manual assembly processes
  • Threadlocking adhesives coating machine-suitable for thread coating processes
  • Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
  • Valve, tank-for automated production lines
  • Highest quality dispensing tips ,syringe barrels
  • Other disposable components
