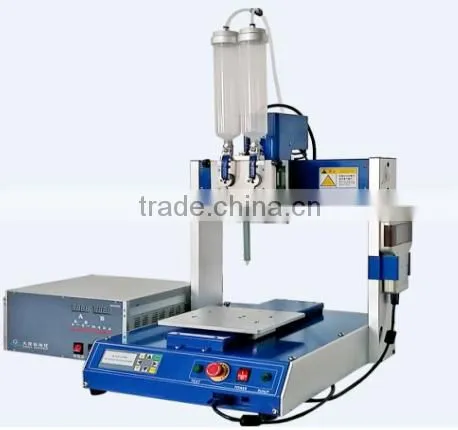

Peristaltic pump AB glue dispensing robot
Introduction:
Equipped with dual Peristaltic pump mixing quantitative control system,it can realize dispensing process with adjustable ratio(the viscosity is lower than 20000cps ,AB glue with ratio 1:1-1:20).DaHua’s robot can dispense pattern of dots ,strips,arcs and patterns on different planes or curved surface with automatic control panel.With the advantage of high precision quantitative liquid material and glue control system and excellent repeatability for precise application.
1.Equipped with separate stepper motor control the pump running speed,finish precision mixing/metering,dispensing.
2.The dispensing valve and tank are in digital temperature control mode,the highest temperature can reach 80℃.
3.There will be less waste because of dynamic mixing way.
4.Equipped with intelligent microcomputer,the minimum is 0.01g glue per 0.1second.
5.It can realize dispensing process with adjustable ratio(the viscosity is lower than 20000cps ,AB glue with ratio 1:1-1:20),such as epoxy resin.
6.It can match different pipes,also,mix without air bubbles.
7.Our robot can replace manual operation by high precision programming of dots ,strips,arcs and patterns on different planes or curved surfaces.
8.Easy to operate and edit program,you can learn how to operate within half an hour.
Application
Generally suitable for battery,electric capacity,motor bearing,adapter,dispensing glue inside power supply and crystal sign etc.
specification:
X/Y/Z working range: 300 x 300 x 100mm
Standard : the factory standard
XY/Z Maximum Load : 8 kg / 2 kg
XY/Z Speed: 0.1-800/350mm/Axis
Repeatability: ±0.02mm/Axis
Data memory capacity : it can store 10000 profiles,8000 traces in each profile.
Display way :LCD display
Safety protection:photoelectric sensor
Edit Programming :hand-held programmer
I/O Signals: 4 Inputs / 4 Outputs
Patterns : dots/strips/arcs/3D track
Power Supply: AC220V/350W
Working Temperature: 0 ~40℃
Relative Humidity: 20~90% (no condensation)
Complete accessories dispensing kit other relation product
NO |
Name |
QTY |
ITEM |
1 |
TH-2004D1 Robotic |
1pcs |
TH-2004D1 |
2 |
Teach pendant/ fix frame |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Dispenser |
1pcs |
Custom |
5 |
Dispenser fix frame |
1set |
TH-DXF03 |
6 |
peristaltic pump valve |
1set |
|
7 |
Dispensing tip |
10pcs |
|
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
Ex-work Report |
1pcs |
|
11 |
Machinery certificate |
1pcs |
|
12 |
Warranty card |
1pcs |
|
13 |
CE certificate |
1pcs |
|
14 |
catalogue |
1pcs |
|
Drawing:
