Automatic Benchtop Dispensing Equipment/automatic Dispensing Machine

Automatic Benchtop Dispensing Equipment/automatic Dispensing Machine thumbnail-1

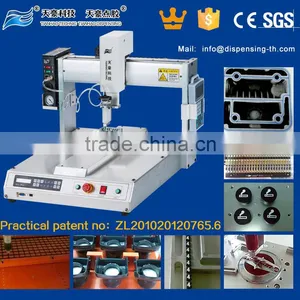

Automatic Benchtop Dispensing Equipment/automatic Dispensing Machine thumbnail-2
Automatic Benchtop Dispensing Equipment/automatic Dispensing Machine photo-1

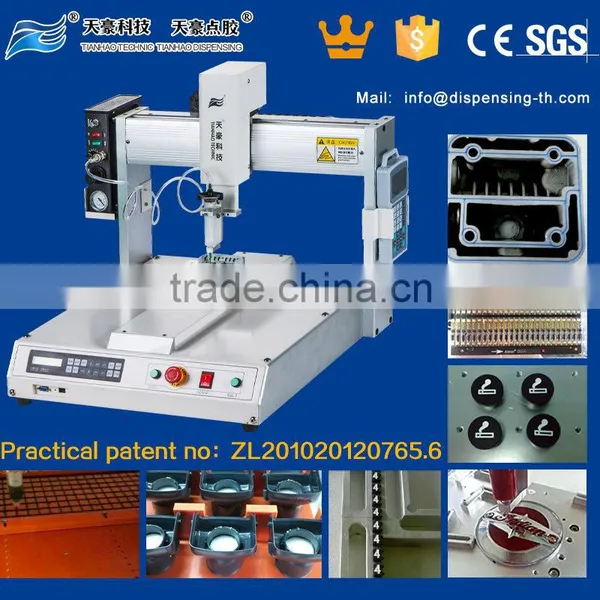

Automatic Benchtop Dispensing Equipment/automatic Dispensing Machine photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
TianHao Dispensing
Contact Supplier Request Quote Chat Now
Cixi Tianhao Electric Technic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name TianHao Dispensing
Model Number TH-2004D-K
Voltage 220V/110V
Power(W) 350w
Weight 45kgs
Dimension(L*W*H) Packing Size L65*W55*H65cm
Certification SGS
Warranty 1 Year
After-sales Service Provided Overseas service center available
Product Description

Product Application

Tianhao is the china’s leading precision dispensing equipment and systems manufacturer. Be found in 2001year,Our engineered fluid control systems are trusted for applying controlled amounts of adhesives, sealants, lubricants and other assembly fluids that increase productivity for nearly every industrial manufacturing process.

Tianhao offer a wide range of diversity, reasonable price and on-time delivery.

Applied Industry

Industries Aerospace

Automotive,Electronics

General Manufacturing

Medical Device

Alternative Energy

Application

Bonding

Dispensing-cold material and adhesive

Dispensing-fluid-general(Super glue,Glue,Fast dry glue,Polyurethane glue,White glue

Gasketing-silicon,Silicone adhesive,Silver cream.grease

Gluing-liquid adhesive

Filling-oil,ab glue,Epoxy, resin

Coating-uv glue,Anaerobic adhesive

Sealing-sealants

Soldering-solder paste,solid

Spraying-low viscosity material,paint

SPECIFICATIONS FOR TH-2004D automatic benchtop dispensing equipment/automatic dispensing machine

Main parameters
model
TH-2004D-K
X/Y/Z working range
300 x 300 x 100mm,400 x 400 x 100mm,500 x 500 x 100mm
XY/Z Maximum Load
10 kg / 5 kg
XY/Z Speed
800/350 mm/Axis
Repetitiveness
±0.02mm/Axis
Software
Edit Programming
Handheld Programmer
Data memory capacity
999 programs
Patterns
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting

Hardware
Drive System
Precision micro-stepper motor
Transmission
Timing Belt/ Precision Linear Guides
Display way
LCD display

Main Features

Function

1) Processing with bonding, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.

2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.


Our product can help you to achieve the goal :

Increase production efficiency

Promotion processing precision  control

Improve product quality

lower production costs, reduce rejected product

Eliminate material waste

Certifications
Detailed Images

Machine Parts

Name: key button and LCD Screen

Single machine can operation,then save the teahpend,Avoid staff misuse, or change has set a good program.The teach pedant is portable, place it in a safe place, in case of staff misuse.

Main Features

The frame and pillar material imported 6063Aluminum Profiles,the Casing with laser cutting metal plate and car painting process

Machine Parts

Name: z axis brake motor
Custom-made type micro step motor.Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy, when that 6kg maximum z axis load will remain in a upper position after switching off the power.

Main Features

Name: Rail
Brand: THK
Each axis Use imported THK high precision double rail.The XYZ axis with 2 linear guide rail, more stable. X, Y, Z axis equipped with imported bilinear guides and precision stepper motors,which run more stable than similar products, the load is higher.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
65 (L) * 55 (W) * 60(D)
Weight
45kgs



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
