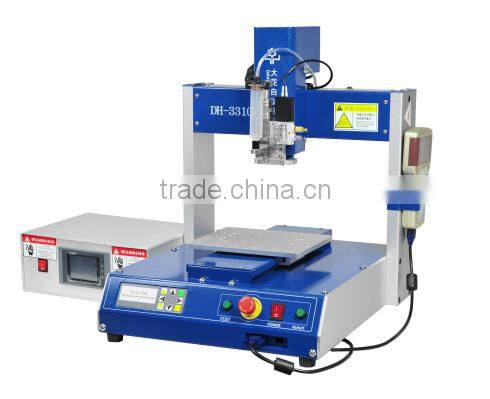

Dahua high speed spraying robot
Introduction:
Dahua’s precision spraying robot is more efficient than normal dispensing robot,it saves some time on axis Z through control the amount of liquid material and spray distance.It solved the problem that dispensing liquid with height difference and dead space.
Features:
1.It can dispense glue in dots,strips,circles etc.
2.Our robot has high working speed and efficiency,the maximum is 200 dots per second.
3. Easy to operate and edit program,you can learn how to operate within half an hour.
4.It is easy to install our robot,it can work steadily through high intensity,the perpendicularity of axis X,Y,Z is high,the array of product is precision.
5.Our robot has a large capacity which can store 9999 files.And you can backup files in computer because of the connection.
6.Our working panel contains the function of correction on original point,it can work separately without regulator which is convenient to manage for factories.
Parameters with high speed spraying valve
Suitable viscosity:100-20000cps
Minimum diameter:0.1mm
Minimum amount of glue(water):0.0001g
Maximum speed:200 dots per second
Dispensing range:0.1mm-15mm
Accuracy of quantitative:±1%
Spraying Nozzle:0.1mm--2mm
Application
Suitable for middle and low viscosity liquid material on product surface finish sparying and sealing technology, main application optical electronics, microelectronics, new energy and other fields.Mainly used in electronic industry, lighting industry, communications industry, new energy and other fields.
specification:
X/Y/Z working range: 300 x 300 x 100mm
Standard : the factory standard
XY/Z Maximum Load : 8 kg / 2 kg
XY/Z Speed: 0.1-800/350mm/Axis
Repeatability: ±0.02mm/Axis
Data memory capacity : it can store 10000 profiles,8000 traces in each profile.
Display way :LCD display
Safety protection:photoelectric sensor
Edit Programming :hand-held programmer
I/O Signals: 4 Inputs / 4 Outputs
Patterns : dots/strips/arcs/3D track
Power Supply: AC220V/350W
Working Temperature: 0 ~40℃
Relative Humidity: 20~90% (no condensation)
Complete accessories dispensing kit other relation product
NO |
Name |
QTY |
ITEM |
1 |
TH-2004D1 Robotic |
1pcs |
TH-2004D1 |
2 |
Teach pendant/ fix frame |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Dispenser |
1pcs |
customs |
5 |
Dispenser fix frame |
1set |
TH-DXF03 |
6 |
valve |
1set |
|
7 |
Dispensing tip |
10pcs |
|
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
Ex-work Report |
1pcs |
|
11 |
Machinery certificate |
1pcs |
|
12 |
Warranty card |
1pcs |
|
13 |
CE certificate |
1pcs |
|
14 |
catalogue |
1pcs |
|
Drawing:
Our factory
Warehouse
