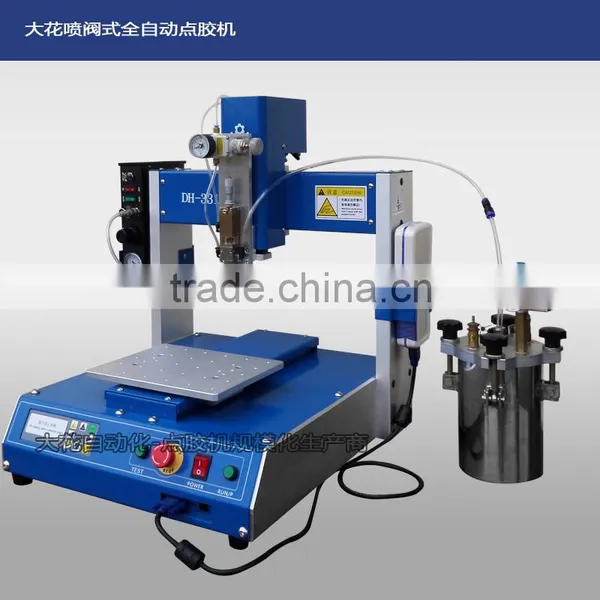

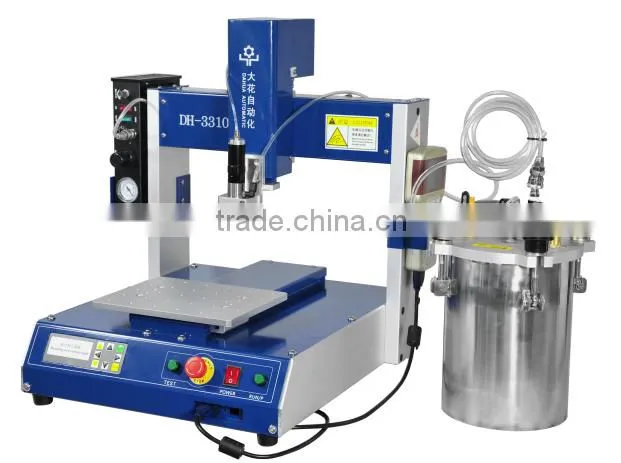

Dahua benchtop spaying robot/dispenser robot
Introduction:
Dahua’s robot is equipped with spray valve which can spray liquid onto products evenly.DaHua’s robot can dispense patterns of dots ,strips,arcs and on different planes or curved surface with automatic control panel.With the advantage of high precision quantitative liquid material control system and excellent repeatability for precise application.
Features:
1.The glue can be atomized and sprayed onto products evenly through our spray valve.
2.Equipped with imported precision pressure regulating valve ,the height of the valve can be adjusted to avoid the liquid material splashing.
3.The spray width range from 2mm to 20mm.
4.Dahua’s robot can dispense pattern of dots ,strips,arcs and patterns on different planes or curved surface with automatic control panel.
5.Easy to operate and edit program,you can learn how to operate within half an hour.
Application
Generally suitable for spraying oil ,paint and glue onto PCB,plastic film,metal components etc.
specification:
X/Y/Z working range: 300 x 300 x 100mm
Standard : the factory standard
XY/Z Maximum Load : 8 kg / 2 kg
XY/Z Speed: 0.1-800/350mm/Axis
Repeatability: ±0.02mm/Axis
Data memory capacity : it can store 10000 profiles,8000 traces in each profile.
Display way :LCD display
Safety protection:photoelectric sensor
Edit Programming :hand-held programmer
I/O Signals: 4 Inputs / 4 Outputs
Patterns : dots/strips/arcs/3D track
Power Supply: AC220V/350W
Working Temperature: 0 ~40℃
Relative Humidity: 20~90% (no condensation)
Complete accessories dispensing kit other relation product
NO |
Name |
QTY |
ITEM |
1 |
TH-2004D1 Robotic |
1pcs |
TH-2004D1 |
2 |
Teach pendant/ fix frame |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Dispenser |
1pcs |
customs |
5 |
Dispenser fix frame |
1set |
TH-DXF03 |
6 |
valve |
1set |
|
7 |
Dispensing tip |
10pcs |
|
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
Ex-work Report |
1pcs |
|
11 |
Machinery certificate |
1pcs |
|
12 |
Warranty card |
1pcs |
|
13 |
CE certificate |
1pcs |
|
14 |
catalogue |
1pcs |
|
Drawing:
Our factory
Warehouse
