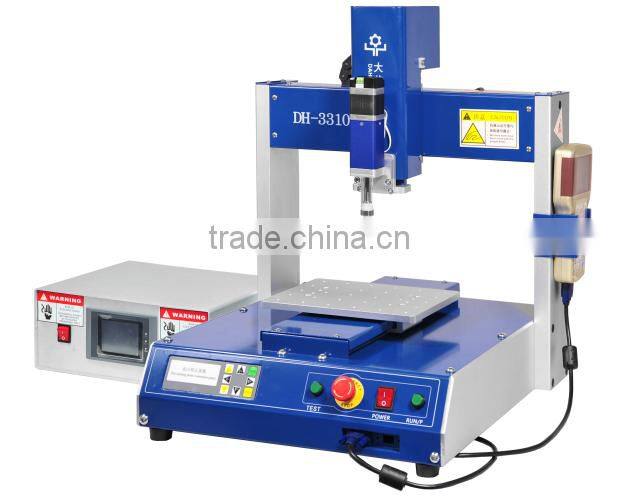

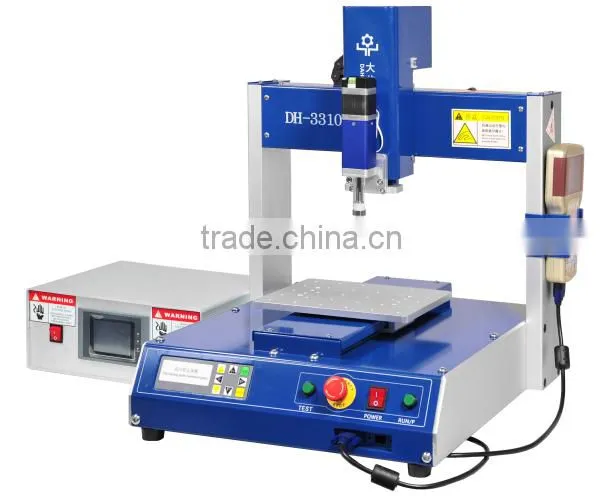

Help CenterDahua High Speed Dot Dispensing Robot/dispenser Robot
Related Products
-
AB Glue Automatic Dispensing Robot With Dynamic MixingNegotiableMOQ: 1 Set -
3 Axis Adhesives and Dispensing Systems VisonNegotiableMOQ: 1 Piece
-
Xyz Robot Desktop Automatic Dispensing System With Vison SystemNegotiableMOQ: 1 Piece
-
Three Axis Automated Dispensing Machinery With Vison SystemNegotiableMOQ: 1 Piece
-
Four Axis Dispening Robot/dispensing Machine TH-2004D-300RUS$ 8000.00 - 8000.00MOQ: 1 Piece
Piston metering valve dispensing robot
Introduction:
Equipped with piston metering valve easy for precision dispensing on product,the valve no need air pressure, by precision step motor let piston control the speed, then meet production require with precision dispensing volume, as like using for precision medical infusion.
Features:
1.Robot can dispense quantitative glue every time and the working speed can be adjusted.
2.The pipe is totally transparent,you can watch the whole process of the liquid material entering piston and dispensing.
3.Dispensing valve has a good appearance and easy to install.
4.Easy to operate and edit program,you can learn how to operate within half an hour.
5.Robot is easy to install our robot,it can work steadily through high intensity,the perpendicularity of axis X,Y,Z is high,the array of product is precision.
6.Dahua robot has a large capacity which can store 9999 files.And you can backup files in computer because of the connection.
ing panel contains the function of correction on original point,it can work separately without regulator which is convenient to manage for factories.
Parameters for valve:
The minimum quantitative:0.001g
Accuracy of quantitative:±0.1%
The maximum dispensing amount:you can set the dispensing amount in advance.
Suitable viscosity:0-2000cps
Application
Suitable for any liquid material with low viscosity.
specification:
X/Y/Z working range: 300 x 300 x 100mm
Standard : the factory standard
XY/Z Maximum Load : 8 kg / 2 kg
XY/Z Speed: 0.1-800/350mm/Axis
Repeatability: ±0.02mm/Axis
Data memory capacity : it can store 10000 profiles,8000 traces in each profile.
Display way :LCD display
Safety protection:photoelectric sensor
Edit Programming :hand-held programmer
I/O Signals: 4 Inputs / 4 Outputs
Patterns : dots/strips/arcs/3D track
Power Supply: AC220V/350W
Working Temperature: 0 ~40℃
Relative Humidity: 20~90% (no condensation)
Complete accessories dispensing kit other relation product
NO |
Name |
QTY |
ITEM |
1 |
TH-2004D1 Robotic |
1pcs |
TH-2004D1 |
2 |
Teach pendant/ fix frame |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Dispenser |
1pcs |
Customer |
5 |
Dispenser fix frame |
1set |
TH-DXF03 |
6 |
metering valve |
1set |
|
7 |
Dispensing tip |
10pcs |
|
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
Ex-work Report |
1pcs |
|
11 |
Machinery certificate |
1pcs |
|
12 |
Warranty card |
1pcs |
|
13 |
CE certificate |
1pcs |
|
14 |
catalogue |
1pcs |
|
Drawing:
