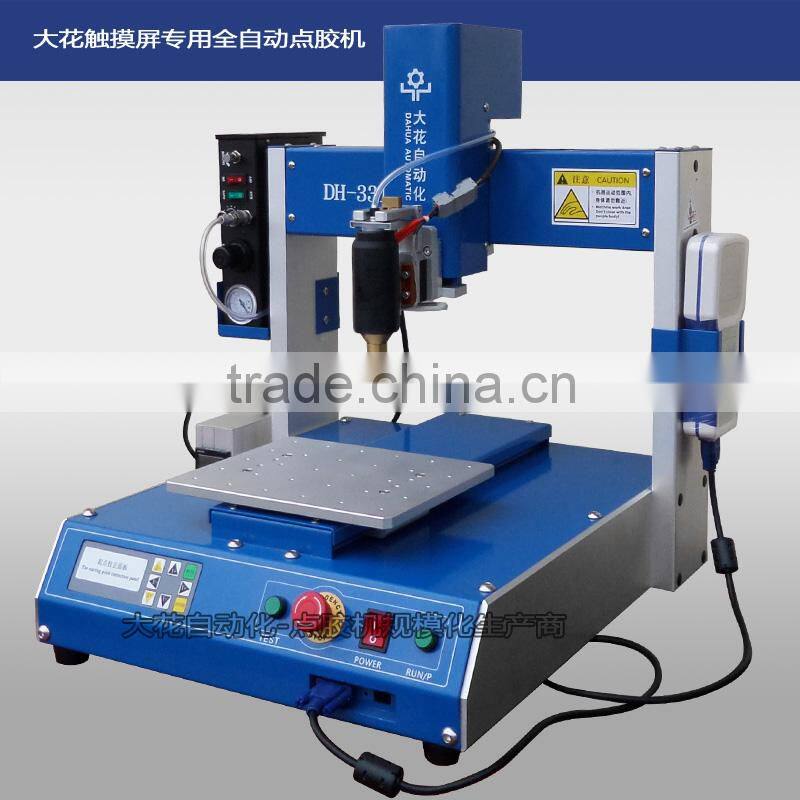

Dahua touchscreen automatic dispensing robot
Introduction:
Equipped with 30cc barrel type heating dispensing control system,it can dispense with solid glue such as hot melt adhesive.DaHua’ robot can dispense glue with high precision programming of dots ,strips,arcs and patterns on different planes or curved surface.With the advantage of high precision quantitative liquid material control system and excellent repeatability for precise application.
Features
1. 30cc barrel type hot melt adhesive can be put into heater,when the solid glue melt,it can be used directly.
2.Equipped with temperature control device,the solid glue can be heated constantly.
3.Dahua’s robot can dispense patterns of dots ,strips,arcs and patterns on different planes or curved surface.
4.Easy to operate and edit program,you can learn how to operate within half an hour.
Application
Generally suitable for mobile phone touchscreen,laptop touchscreen,navigator etc.
specification:
X/Y/Z working range: 300 x 300 x 100mm
Standard : the factory standard
XY/Z Maximum Load : 8 kg / 2 kg
XY/Z Speed: 0.1-800/350mm/Axis
Repeatability: ±0.02mm/Axis
Data memory capacity : it can store 10000 profiles,8000 traces in each profile.
Display way :LCD display
Safety protection:photoelectric sensor
Edit Programming :hand-held programmer
I/O Signals: 4 Inputs / 4 Outputs
Patterns : dots/strips/arcs/3D track
Power Supply: AC220V/350W
Working Temperature: 0 ~40℃
Relative Humidity: 20~90% (no condensation)
Complete accessories dispensing kit other relation product
NO |
Name |
QTY |
ITEM |
1 |
TH-2004D1 Robotic |
1pcs |
TH-2004D1 |
2 |
Teach pendant/ fix frame |
1pcs |
TH-DT001 |
3 |
Teach pendant Cable line |
1pcs |
TH-DTC01 |
4 |
Dispenser |
1pcs |
TH-2004Kj |
5 |
Dispenser fix frame |
1set |
TH-DXF03 |
6 |
valve |
1set |
|
7 |
Dispensing tip |
10pcs |
|
8 |
POWER cord 220V |
1pcs |
TH-DP06 |
9 |
Manual operation |
1pcs |
|
10 |
Ex-work Report |
1pcs |
|
11 |
Machinery certificate |
1pcs |
|
12 |
Warranty card |
1pcs |
|
13 |
CE certificate |
1pcs |
|
14 |
catalogue |
1pcs |
|
Drawing:

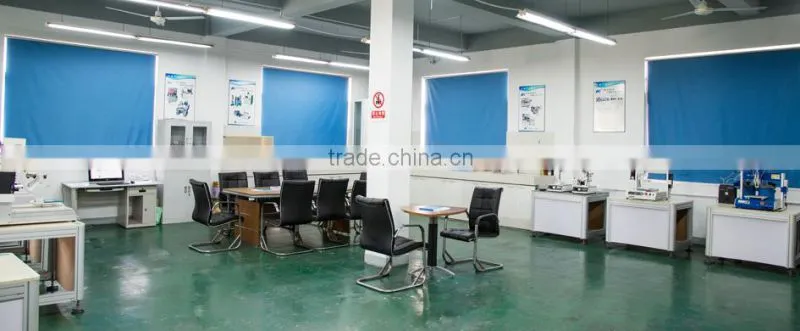

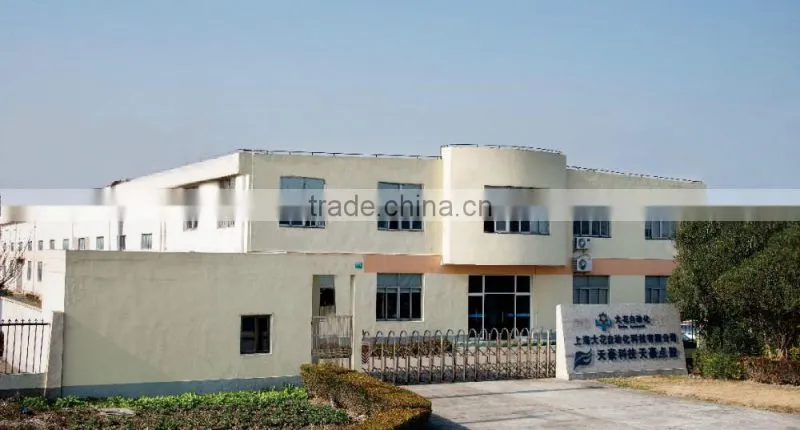

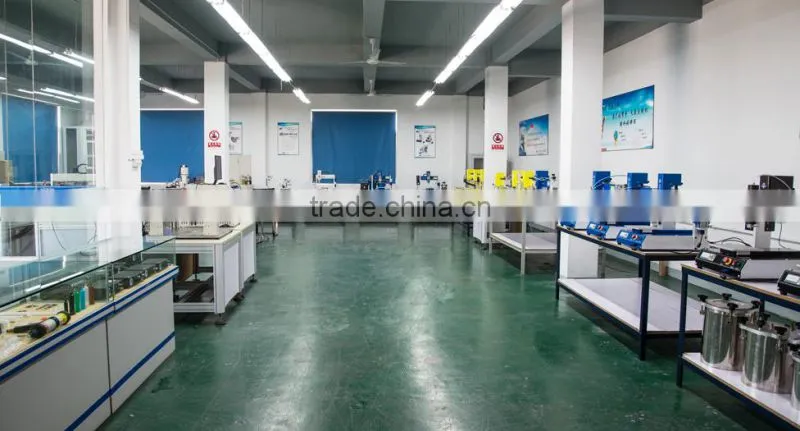

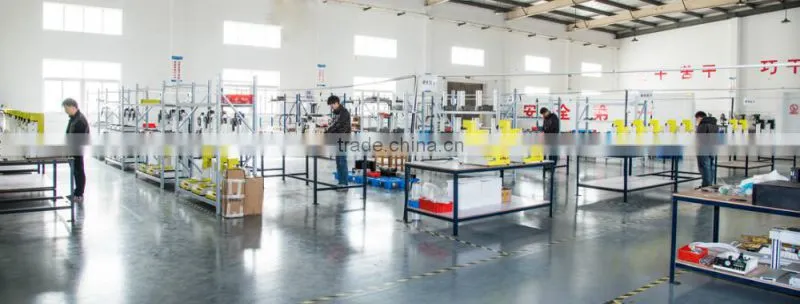

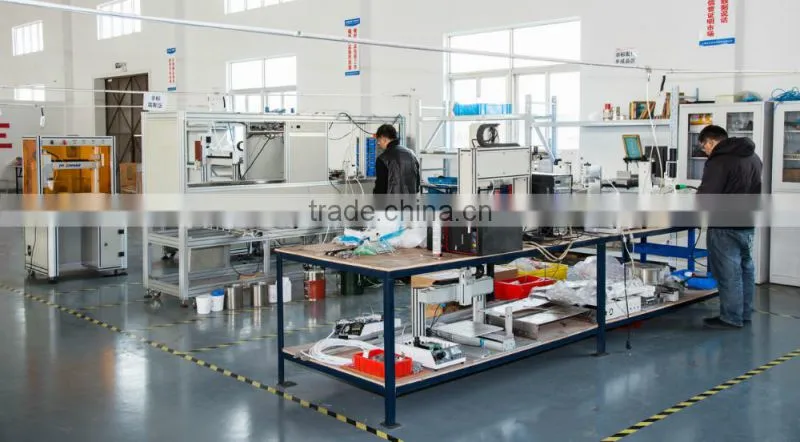

Our factory

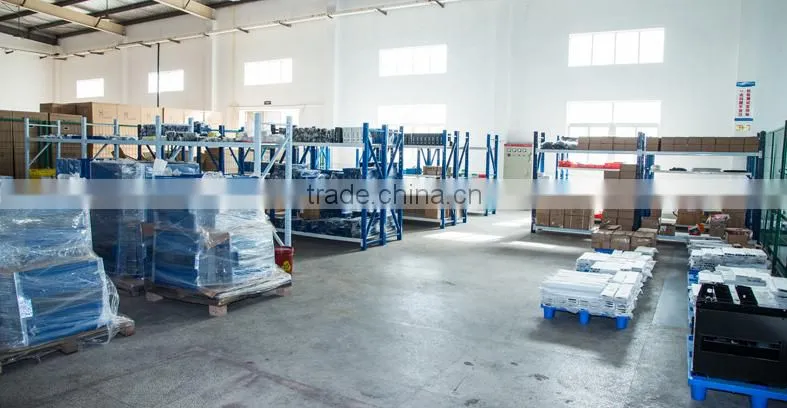

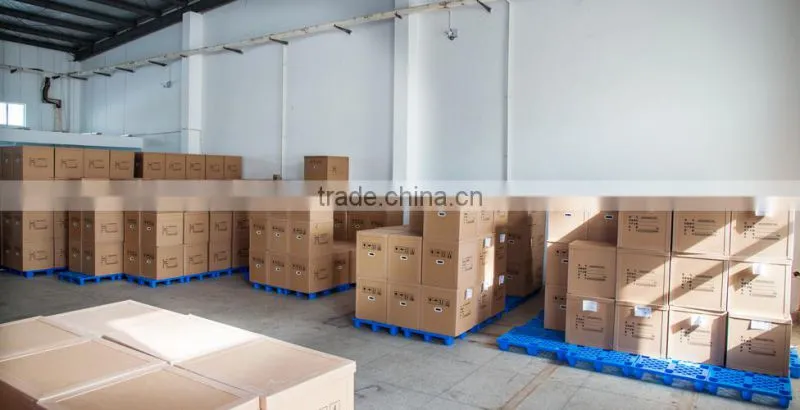

Warehouse
