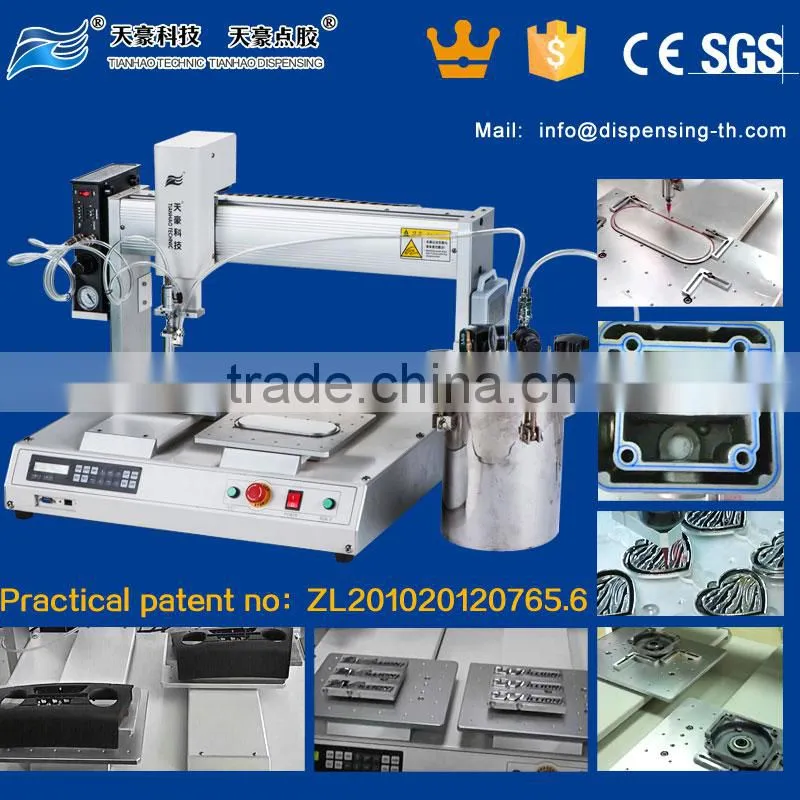

Automated Dispensing Mchinery/automated Dispensing Unit

Name: Automated Dispensing Mchinery/automated Dispensing Unit
Brand: TianHao Dispensing
SKU: 115382807
Availability: InStock

Automated Dispensing Mchinery/automated Dispensing Unit thumbnail-1

Automated Dispensing Mchinery/automated Dispensing Unit photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

TianHao Dispensing

Contact Supplier Request Quote Chat Now

Cixi Tianhao Electric Technic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO OR SANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name TianHao Dispensing

Model Number TH-2004D-530y

Voltage 220V/110V

Power(W) 350w

Weight 45kgs

Dimension(L*W*H) Packing Size L65*W55*H65cm

Certification SGS

Warranty 1 Year

After-sales Service Provided Overseas service center available

Product Description

Product Application

Applied Industry

Industries Aerospace

Automotive,Electronics

General Manufacturing

Medical Device

Alternative Energy

Application

Bonding

Dispensing-cold material and adhesive

Dispensing-fluid-general(Super glue,Glue,Fast dry glue,Polyurethane glue,White glue

Gasketing-silicon,Silicone adhesive,Silver cream.grease

Gluing-liquid adhesive

Filling-oil,ab glue,Epoxy, resin

Coating-uv glue,Anaerobic adhesive

Sealing-sealants

Soldering-solder paste,solid

Spraying-low viscosity material,paint

SPECIFICATIONS FOR TH-2004D automated dispensing mchinery/automated dispensing unit
Main parameters	model	TH-2004D-K
	X/Y/Z working range	300 x 300 x 100mm,400 x 400 x 100mm,500 x 500 x 100mm
	XY/Z Maximum Load	10 kg / 5 kg
	XY/Z Speed	800/350 mm/Axis
	Repetitiveness	±0.02mm/Axis
Software	Edit Programming	Handheld Programmer
	Data memory capacity	999 programs
	Patterns	Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
Hardware	Drive System	Precision micro-stepper motor
	Transmission	Timing Belt/ Precision Linear Guides
	Display way	LCD display

Main Features

Our product can help you to achieve the goal :

Increase production efficiency

Promotion processing precision control

Improve product quality

lower production costs, reduce rejected product

Eliminate material waste

Certifications

Detailed Images

Machine Parts

Name: key button and LCD Screen

Single machine can operation,then save the teahpend,Avoid staff misuse, or change has set a good program.The teach pedant is portable, place it in a safe place, in case of staff misuse.

Main Features

The frame and pillar material imported 6063Aluminum Profiles,the Casing with laser cutting metal plate and car painting process

Machine Parts

Name: z axis brake motor
Custom-made type micro step motor.Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy, when that 6kg maximum z axis load will remain in a upper position after switching off the power.

Main Features

Name: Rail
Brand: THK
Each axis Use imported THK high precision double rail.The XYZ axis with 2 linear guide rail, more stable. X, Y, Z axis equipped with imported bilinear guides and precision stepper motors,which run more stable than similar products, the load is higher.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	65 (L) * 55 (W) * 60(D)
Weight	45kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
