GYT series Eight-Colour Flexographic Printing Machine
Characters:
Product Description:
This printing machine, adopting photosensitive resin as printing plate, is commonly known as the flexographic printing machine. It is suitable for printing packing materials such as polyethylene, polypropylene bag, cellophane and roll paper, etc.
It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Performance and Features:
1. Low speed and full load startup; Stable running by tension control when increasing and decreasing speed, noise is decreased.
2. High dots presentation rate under high speed; Clear and vivid stratification of screen printing; Strong stereo effect and accurate registering
3. Aluminum roller adopts the Japan semi-sealing small bearing; Flinty oxidation, static and dynamic balancing treatments are conducted; Low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5. With the air exhaust, blowing and heating settings; The heating system adopts the central thermostatic control system and group management, also with the cold air forming devices
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Auto tension control
9.Unwind with auto deviation correction systen(EPC)
10.EDGE position control
Main technician:
| printing width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm |
| printing color | 8 color (PC:8+0,7+1,6+2,4+4) |
|||||||
| printing length | pneumatic/hydraulic pree control | |||||||
| mechanical speed | 80m/min | |||||||
| printing speed | 60m/min | |||||||
| anilox cylinder | ceramic anilox cylinder 50-1000 LP | |||||||
| register precision | Longitude:±0.25mm,Transverse±0.25mm | |||||||
| Un/rewinder Diameter | Φ750mm | |||||||
| Master Motor | 3.7kw | 3.7kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 11kw |
| rewinder motor | 1.5kw | 1.5kw | 2.2kw | 3.0kw | ||||
| Electrical Heater | 20kw | 22kw | 24kw | 26kw | 28kw | 30kw | 32kw | 34kw |
| Blower Power | 1.5kw*2 | 1.1kw*4 | 1.1kw*4 | 1.1kw*4 | 1.5kw*4 | 1.5kw*4 | 2.2kw*4 | 2.2kw*4 |
| centrifugal blower |
0.37kw | 0.37kw | 0.55kw | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw |
| inking motor | 0.37kw | 0.37kw | 0.37kw | 0.37kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Master Frequency Converter | DALTA(TAIWAN) | |||||||
| Bearing | MADE IN CHINA | |||||||
| unilater bearing | MADE INCHINA | |||||||
| Weight | 5500kg | 5750kg | 6000kg | 6250kg | 6500kg | 6750kg | 7000kg | 7300kg |
| master power | 26kw | 28kw | 30kw | 33kw | 37kw | 40kw | 42kw | 46kw |
| Dimension | 4800*1850*3200mm | 4800*2050*3200mm | 4800*2250*3200mm | 4800*2450*3200mm | 4800*2650*3300mm | 4800*2850*3050mm | 4800*3050*3300mm | 4800*3250*3300mm |
Technical Parameters are subject to chang without prior notice!

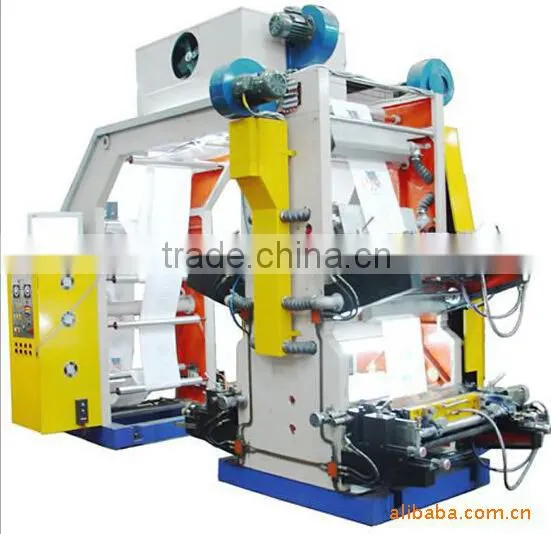

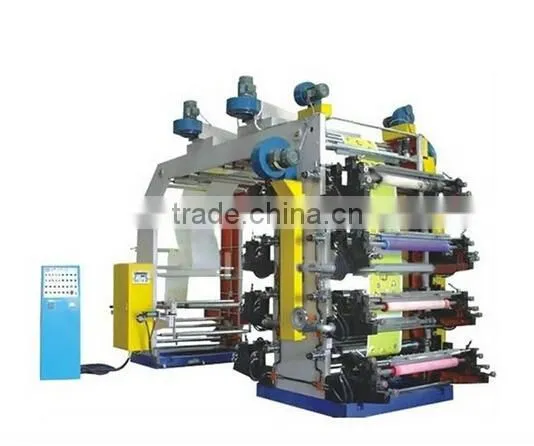

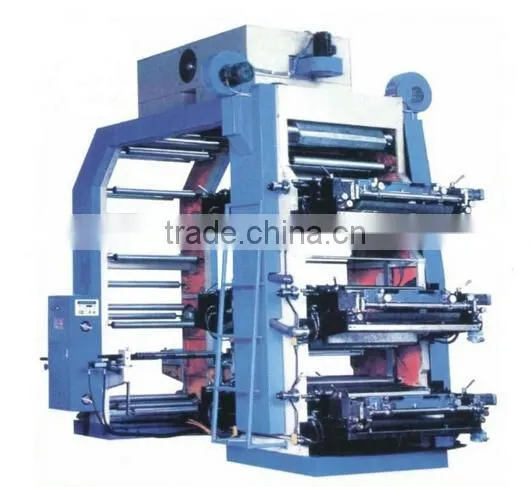

View more picture about the printing machine:

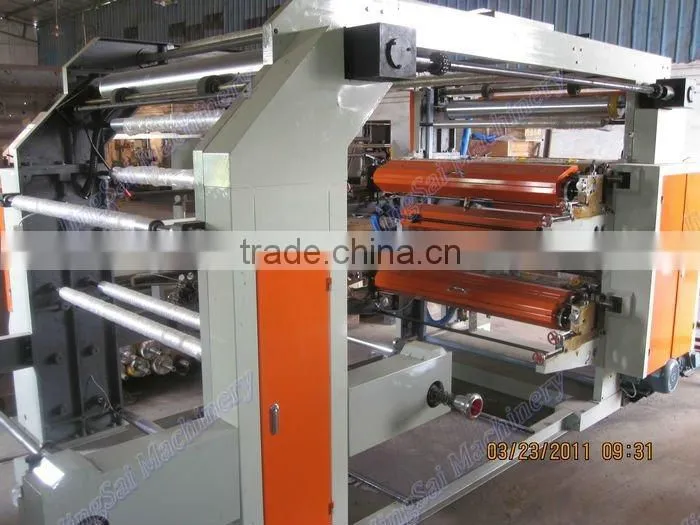

Machine front side:
Our Capacity:
1)Sales Market:Domestic and Overseas markets
2)About QC: Excellence, quality first is our philosophy
3)Main Products:Plastic machinery specially in blown film machines
Our Service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!
