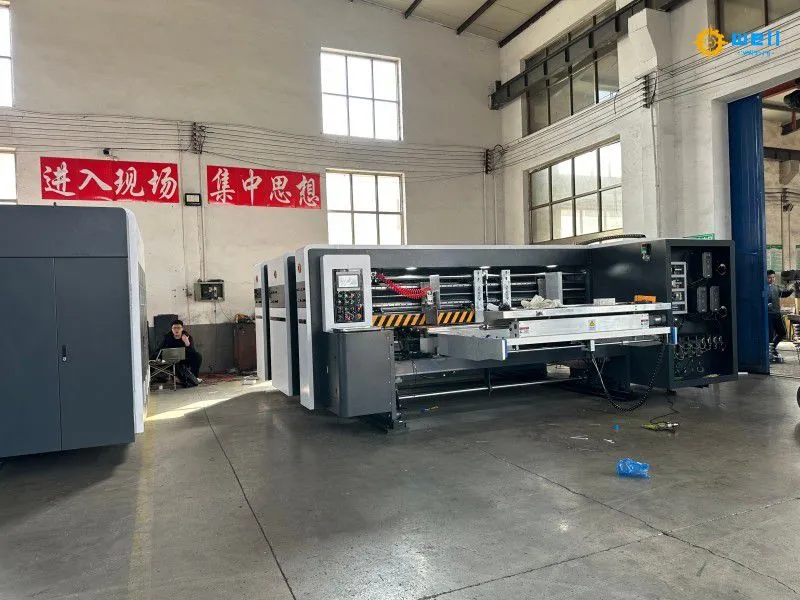

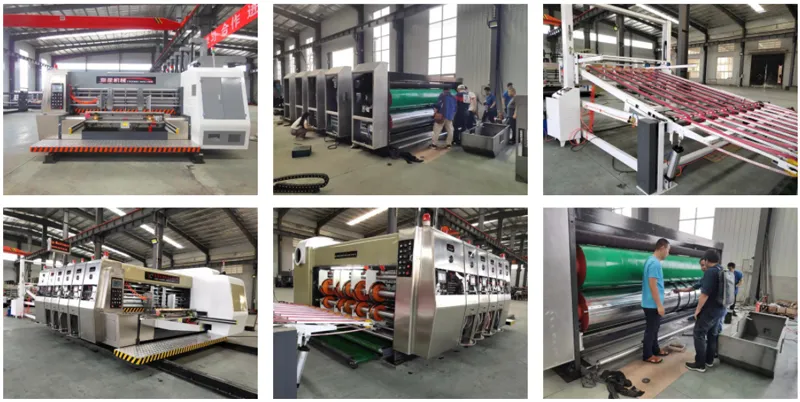

The Automatic Flexo Printing Slotting Die Cutting Machine is core equipment for carton packaging, integrating printing, slotting, die cutting and creasing. With high precision, speed and full automation, it is widely used in large-scale corrugated carton production in food, e-commerce, logistics and other industries, suitable for both mass and customized production. Below are its detailed specifications.
I. Core Basic Specifications

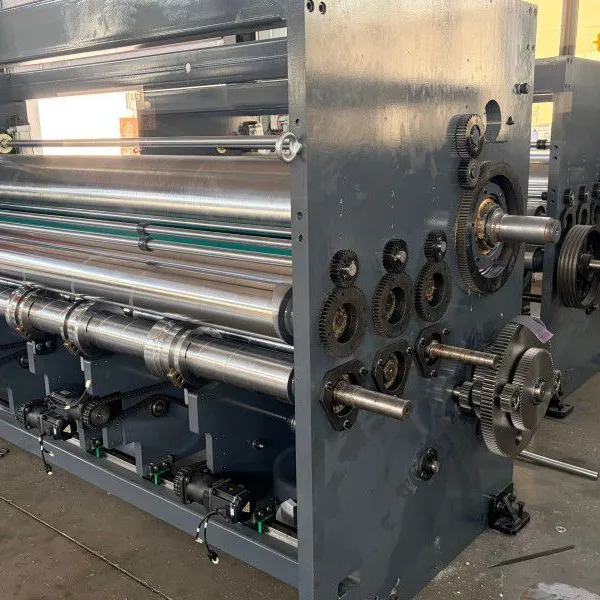

Adopting a modular design, the main structure is made of high-strength steel with quenching and chrome plating; the transmission gear hardness is above 60HRC for stable operation. It complies with international safety standards, fits 380V industrial voltage, and has a total power of 90KW-141KW (varies by model).
It supports 1-6 color flexographic printing with eco-friendly water-based ink and an ink circulation system to reduce waste. Machine size: length 6600mm-15000mm, width 4240mm-5800mm; net weight 8000kg-28000kg, requiring a flat, solid installation ground.
II. Key Technical Parameters (Table)
Parameter Category |
Specifications |
Remarks |
Printing Colors |
1-6 colors |
Flexographic printing, water-based ink |
Total Power |
90KW-141KW |
Depends on the model |
Voltage Requirement |
380V (Industrial Voltage) |
Complies with international safety standards |
Transmission Gear Hardness |
Above 60HRC |
Quenched and chrome-plated, wear-resistant |
Machine Length |
6600mm-15000mm |
Varies by model |
Machine Width |
4240mm-5800mm |
Adapts to different factory spaces |
Net Weight |
8000kg-28000kg |
Requires flat and solid installation ground |
III. Printing & Processing Specifications

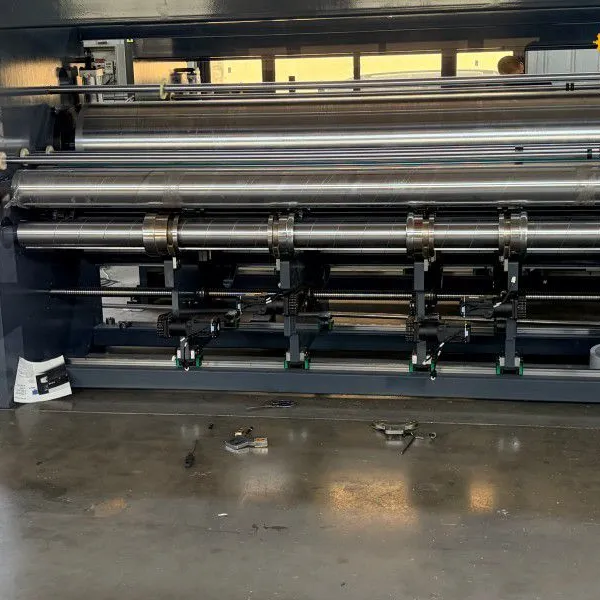

Printing speed: 80-200 sheets/min, max printing width 1600mm-2500mm; registration error ≤±0.1mm for clear printing. Slot width: 3-15mm, slot depth: 5-30mm, adjustable for different carton sizes.
Die-cutting precision is ±0.15mm with smooth edges; adjustable creasing avoids paper breaking. Equipped with automatic paper feeding and collecting system for continuous production and higher efficiency.
IV. Additional Configuration & Performance Advantages

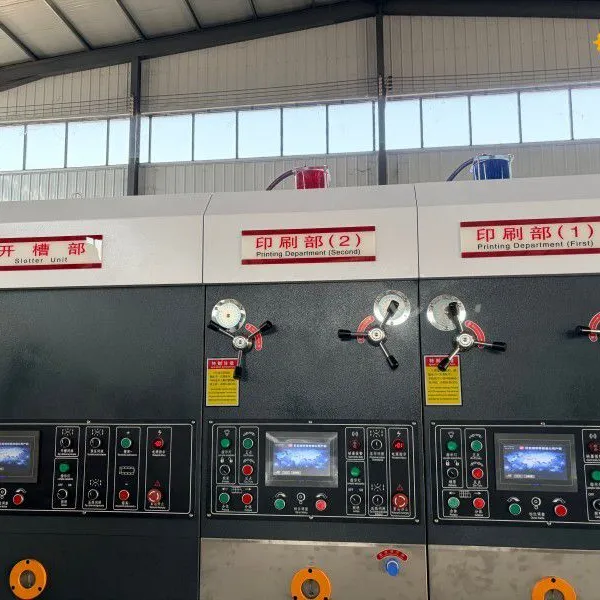

It has an intelligent touch screen control system for parameter setting, fault alarm and production statistics. The ink circulation system reduces waste by 15%-20%, meeting green production requirements.
Main components are well-known brand products for high reliability. Modular design facilitates maintenance; customized configurations (e.g., film lamination, embossing) are available to expand application scope.
In summary, this machine features complete specifications, high precision, efficiency and adaptability, solving traditional carton processing problems and supporting large-scale, high-quality production.
