QPM Series High Speed Flexo Printing Machine With Servo Motor for Paper and Film

QPM Series High Speed Flexo Printing Machine With Servo Motor for Paper and Film photo-1

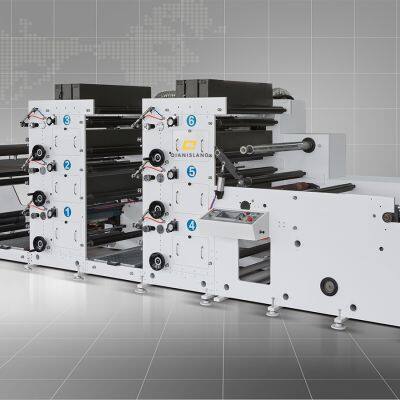

QPM Series High Speed Flexo Printing Machine With Servo Motor for Paper and Film photo-2

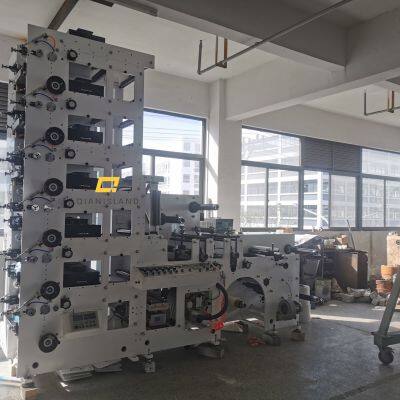

QPM Series High Speed Flexo Printing Machine With Servo Motor for Paper and Film photo-3

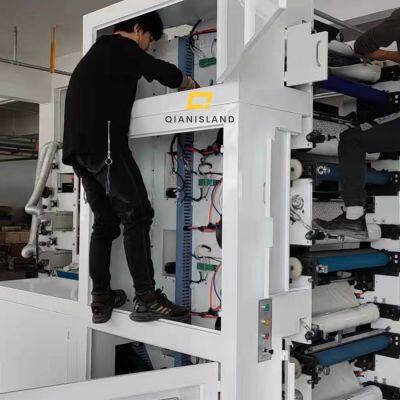

QPM Series High Speed Flexo Printing Machine With Servo Motor for Paper and Film photo-4

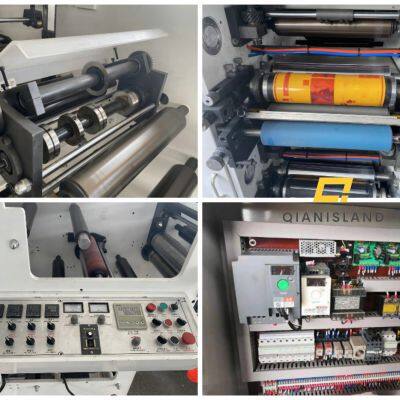

QPM Series High Speed Flexo Printing Machine With Servo Motor for Paper and Film photo-5
US$ 10000 - 30000 MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
1 year
Structure:
Stacked
After-sales Service:
full life
Payment & Shipping
Payment Methods:
Port of Shipment:
all China port
Delivery Detail:
45 days
Warranty 1 year
Structure Stacked
After-sales Service full life
Anilox Roller Metal Anilox Roller
Dryer UV& IR
Embossing Structure Platen Press
Printing Speed Other, 70-80m/min
Trademark QianIsland
Origin China

QPM Series Flexo Printing Machine is an ideal machine to print different materials, such as film, aluminum foil, paper, self-adhesive stickers, etc.

Specification

Model

QPM-320

QPM-650

QPM-850

QPM-1200

Max Paper Width

330mm

660mm

860mm

1210mm

Max Printing Width

320mm

650mm

850mm

1200mm

Printing Length

175-450mm

175-450mm

175-450mm

220-620mm

Max Unwinding Diameter

600mm

1000mm

1200mm

1200mm

Max Rewinding Diameter

600mm

1000mm

1200mm

1200mm

Alignment Precision

±0.1mm

±0.1mm

±0.1mm

±0.12mm

Speed

80-100m/min

120m/min

100m/min

100m/min

Material

20-300gsm Paper/ Film

30-300gsm Paper/ Film

30-300gsm Paper/ Film

30-300gsm Paper/ Film

Power Supply

380V, 50hz, 3P

380V, 50hz, 3P

380V, 50hz, 3P

380V, 50hz, 3P



Electrical configurations

Switching Power Supply

MEANWELL

Intermediate Relay

Schneider

Circuit Breaker

Schneider

Contactor

Schneider

Control Button

Schneider



Details

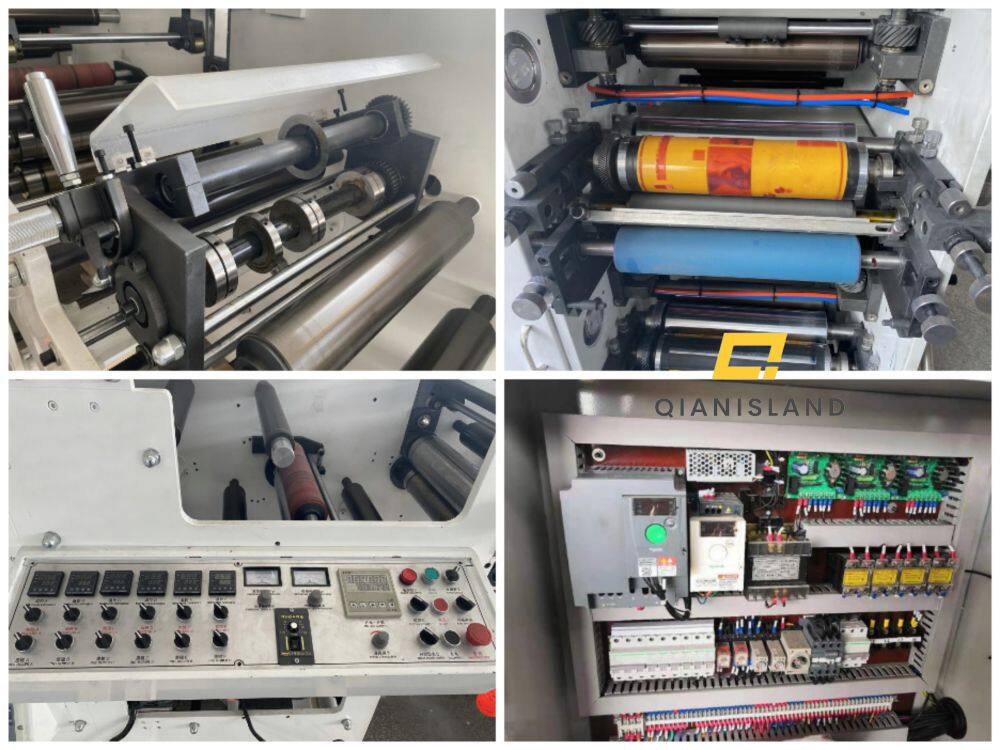

QPM Series Flexo Printing Machine-detail

Feature

1.Bearing adopts Japanese NSK.

2.When the roll paper is used up, the machine is shut down automatically.

3. Using an independent motor to control the paper collection automatically, to ensure the stability of the winding tension and high-speed operation accuracy.

4.Adopt PLC to control the whole machine.

5. When the paper is less, automatic alarm and deceleration shutdown.

6. Set up the capacity in advance, when complete, the machine will shutdown automatically.

7.Counting function includes count meter and count quantity.
