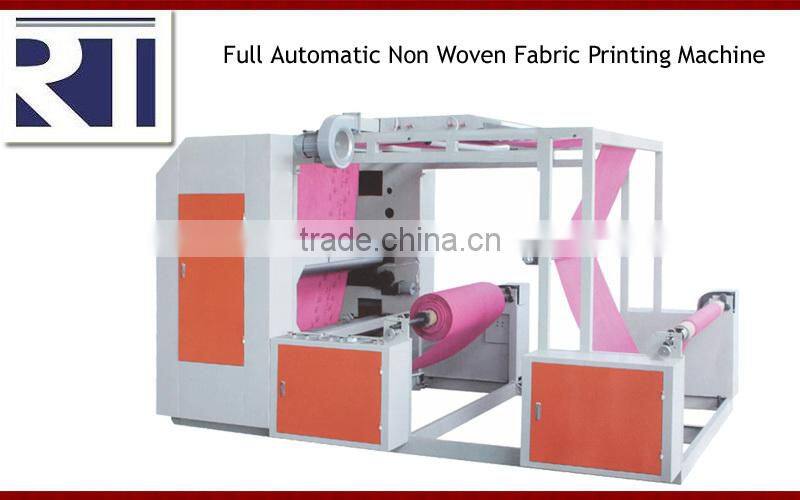

Full Automatic Non Woven Fabric Printing Machine
Product Introduction:
Machine is professional non woven fabric flexo printing machine. It is a kind of idela printing machine for producting non woven fabric bag.
Feature:
1. Easy operation, flexo starting, accurate color register.
2.The Automatic meter counter, Automatic stop & alarm after reached the set quantity.
3.Lift and lower the printing plate cylinder manual , it will automaticlly stir the printing ink automatilly after lifting.
4.The printing ink is spread by printing anilox cylinder whatever ink color.
5.Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6. 360° continuous and adjustable longitudinal register device.
7.The import frequency controller motor speed adapts to different motor speed.
8.There are inching / stopping buttons on the plate roller base and materials rolling rack so as to make it easy operate the machine when the plate is installed
Main Technical Parameter:
| 4 color Flexo Printing Machine | YT-B-4-1000 |
| Color | 4color |
| Max.Unwinding Width | 1000mm |
| Max. Printing Width | 960mm |
| Printing Length | 191-914 |
| Max.Diameter of Unwinding | 1000mm |
| Printing Speed | 5-50meter per minute |
| Thickness of printing plate | 2.38mm |
| Power Supply | 380V |
| Total Power | 12KW |
| Machine Weight | 1400KG |
| Machine Size | 4.2m*2.4m*2.8m |
| Machine Packing Weight | 1600KG |
Printing Sample:
