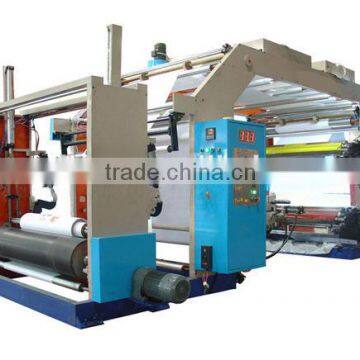

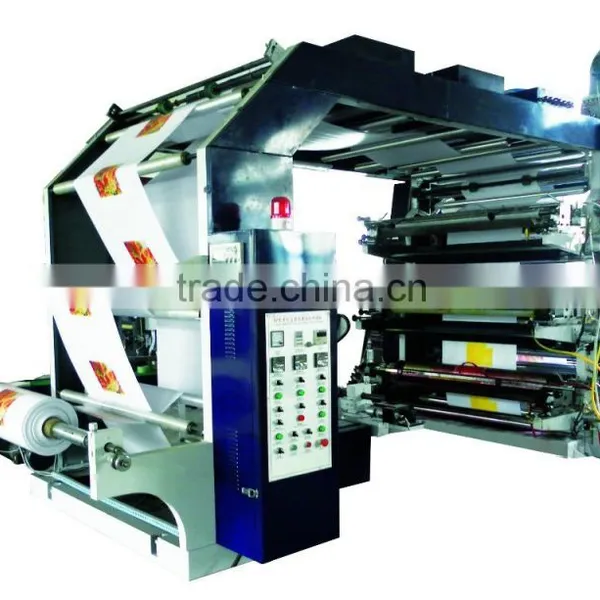

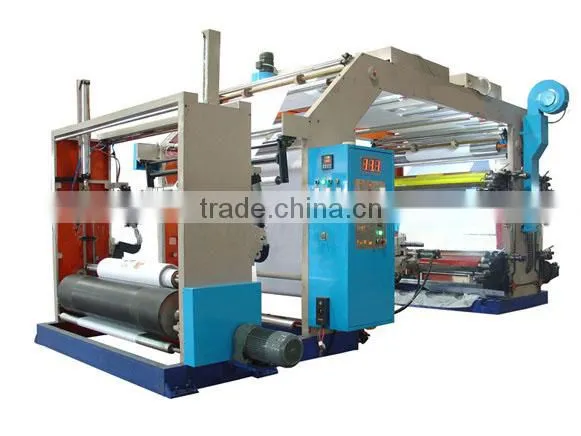

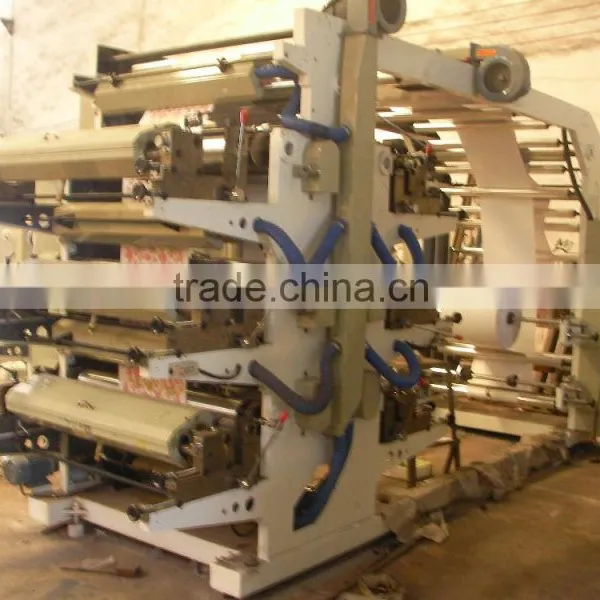

8colors roll paper flexo print machine
Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc.
And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
1. Adopting pneumatic control printing plate lifting system
2. Adopting inch motor control, user-friendly operation
3. Temperature control device to easily dry the printing
4. Easy operation, flexible starting, accurate color register.
5. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
6. The printing ink is spread by the knurled cylinder with even ink color.
7. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
8.3600 continuous and adjustable longitudinal register device.
9. The imported frequency control of motor speed adapts to different printing speeds.
10. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
11. Easy to make printing plate.
Main Technical Variables: | ||||
Model of Machine | YT-4600 | YT-4800 | YT-41000 | |
Max. Width of PrintingMaterial | 600mm | 800mm | 1000mm | |
Max. Printing | 560mm | 760mm | 960mm | |
Length Range | 191-914 | 191-914 | 191-914 | |
Max. Diameter of Roll Material | Φ 450mm | Φ 450mm | Φ 450mm | |
Printing Speed | 5-50m/min | 5-50m/min | 5-50m/min | |
Thickness of | 2.38mm | 2.38mm | 2.38mm | |
Total Power | 10.87kw | 12.5kw | 14.37kw | |
Weight of | 3000kg | 3500kg | 4000kg | |
Overall(mm)Dimensions | 4200X1600X2400 | 4200X1800X2400 | 4200X2000X2400 | |
we had many kinds of printing machine ,contact information is following :
Jerry skype: wangbei35612
wechat wangbei9089 mobile:
0086-13626558246
whatsapp:008613626558246
