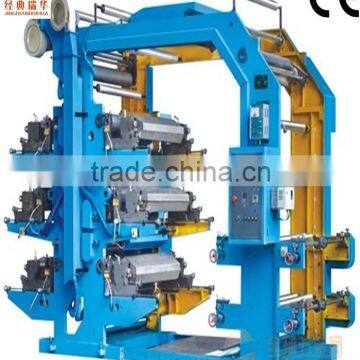

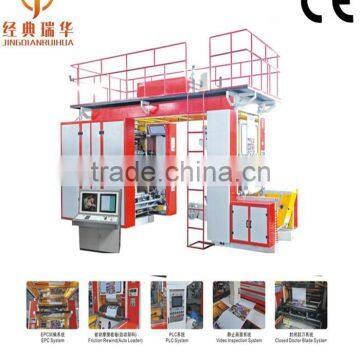

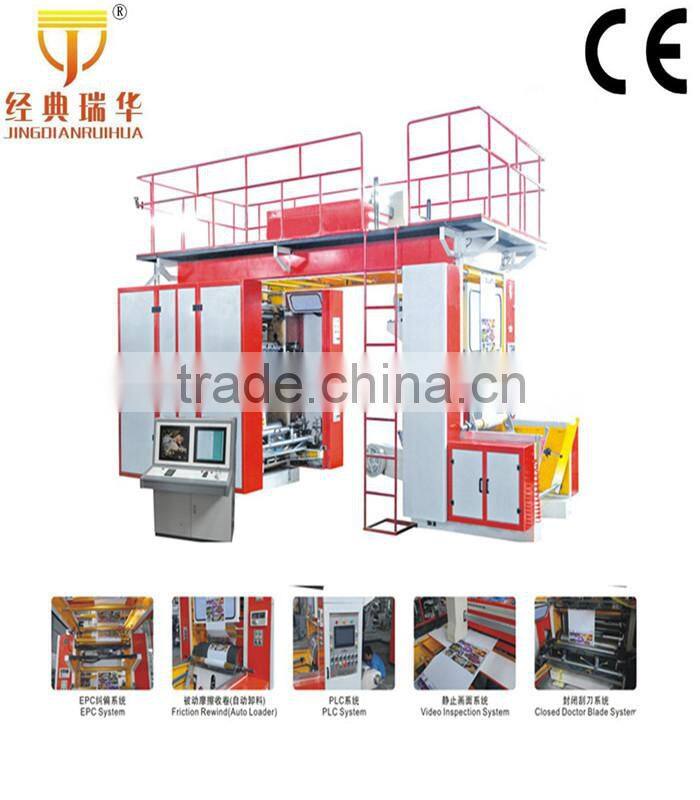

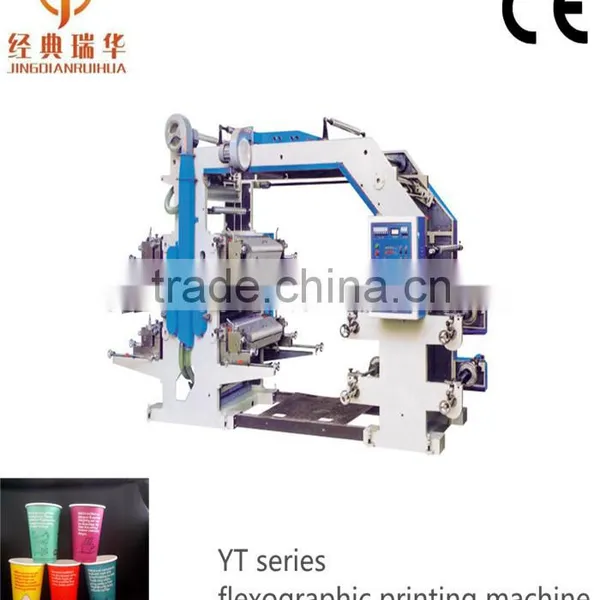

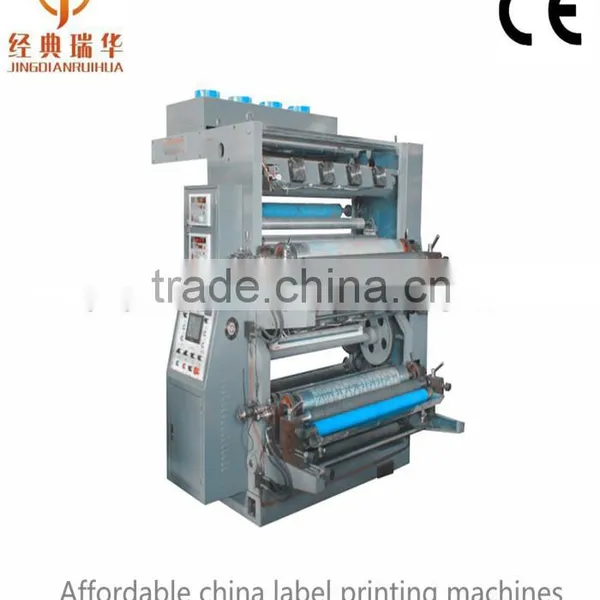

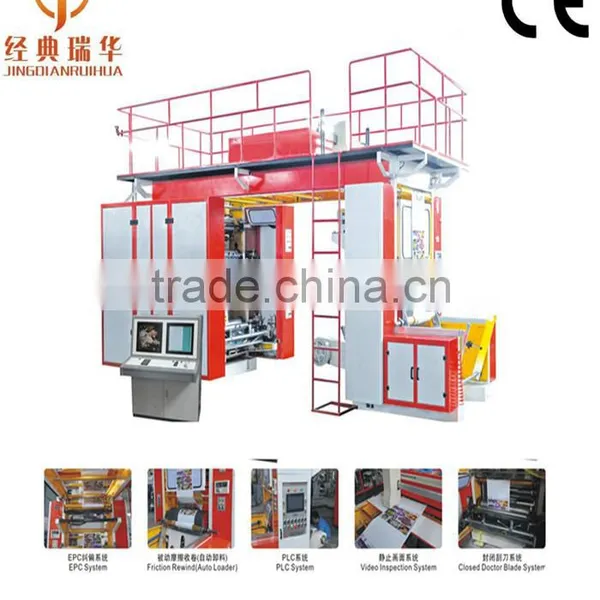

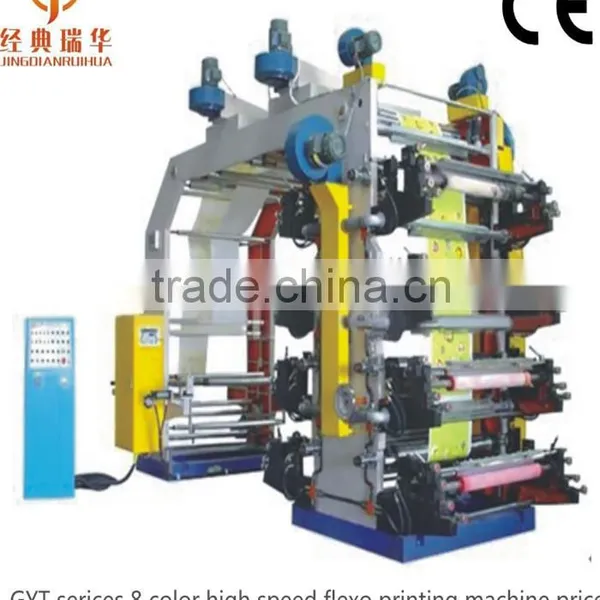

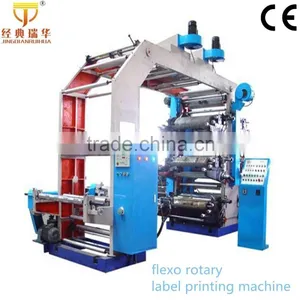

Flexographic Print Machine
Performance and Characteristics:
1. Low speed and full load startup; Stable running by tension control when increasing and decreasing speed, noise is decreased.
2. High dots presentation rate under high speed; Clear and vivid stratification of screen printing; Strong stereo effect and accurate registering.
3. Aluminum roller adopts the Japan semi-sealing small bearing; Flinty oxidation, static and dynamic balancing treatments are conducted; Low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec).
5. With the air exhaust, blowing and heating settings; The heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.
6. Printing rolls should keep moving while machine halted.
7. Material holder use air shaft.
8.Unwinding part adopts auto tension controller,and centralized winder of friction type winder.
9.Unwind with auto deviation correction system(EPC),horizantol type EPC.
10.Whole machine controlling system:PLC system.
11.Computer auto color registration system.
12.Chambered type double side doctor blade system.
13.Heating method:electric heating and constat temperature control by units.
14.Cooling blower with axial flow fan.
Main Technial Variables:
Printing Width | 800mm | 1000mm | 1200mm | |
Printing Length | 200-1000mm | |||
Printing Colors | 4 color (PC:4+0, 3+1, 2+2) | |||
Printing Plate Lifting System | pneumatic | |||
Max. Mechanical Speed | 120m/min | |||
Max. Printing Speed | 50-100m/min | |||
Anilox Cylinder | Metal:200-120 line | |||
Register Precision | Longitude: ±0.2mm,Transverse:±0.15mm | |||
Un/rewinder Diameter | Φ850mm(Can be customized according to requirements) | |||
Master Motor | 3.7kw | 3.7kw | 5.5kw | |
Unwinding method | Non axial feeding (gas) liquid share | |||
Rewinding method | Passive friction | |||
Electrical Heater Power | 15kw | 18kw | 21kw | |
Blower of nature wind | 9*30w | 9*30w | 12*30w | |
Ink Motor | 0.2kw | 0.2kw | 0.4kw | |
Total Power | 28kw | 31kw | 35kw | |
Master Frequency Converter | Taiwan Delta | |||
Bearing | Japan(NSK) | |||
Unilateral bearing | ASNU(Germany) | |||
Weight | 5500kg | 6000kg | 6500kg | |
Dimension | 6100*2200*3000mm | 6100*2400*3000mm | 6100*2600*3000mm | |
View more picture about the slitting machine:

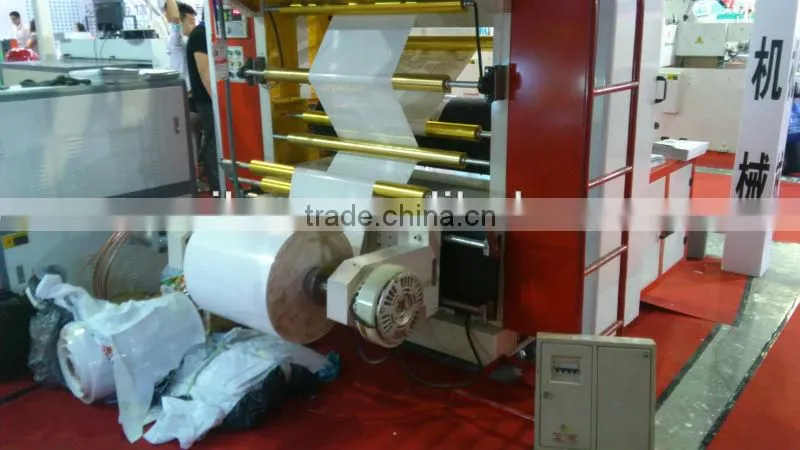

Machine front side:
HYDRAULIC PRESSURE SYSTEM FOR JUMBO MATERIAL:
Our Capacity:
1)Sales Market:Domestic and Overseas markets
2)About QC: Excellence, quality first is our philosophy
3)Main Products:Plastic machinery specially in blown film machines
Our Service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!
