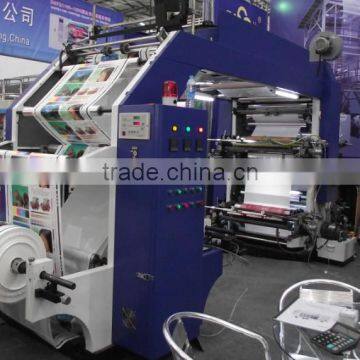

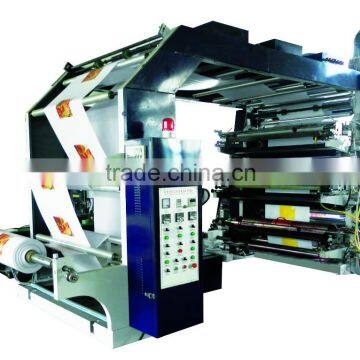

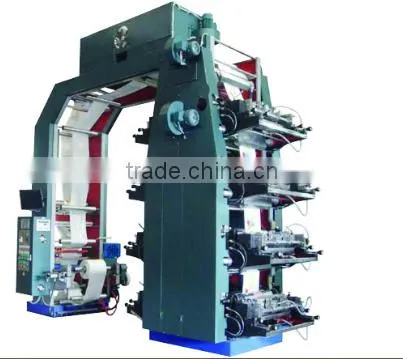

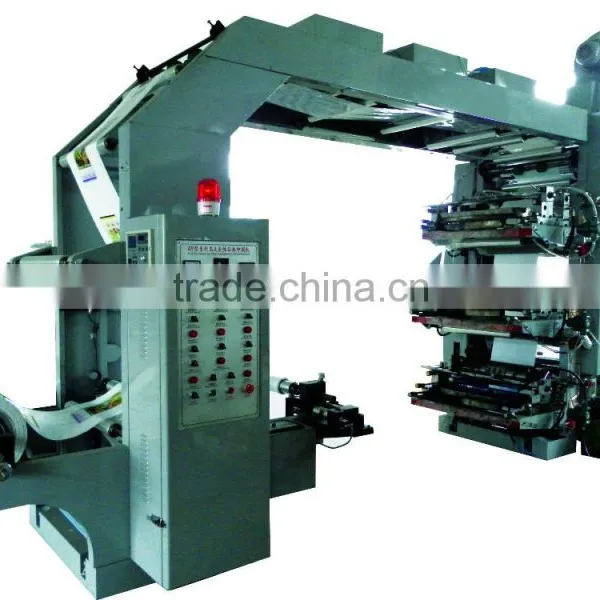

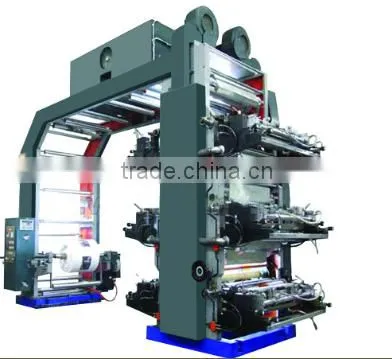

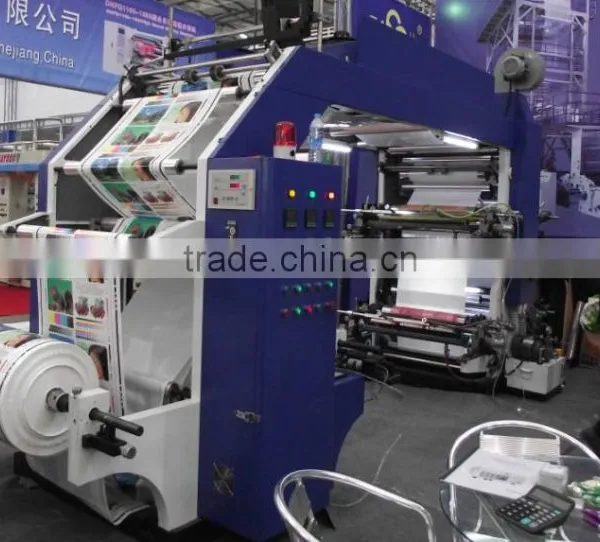

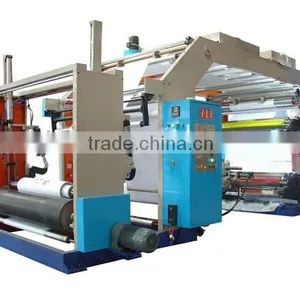

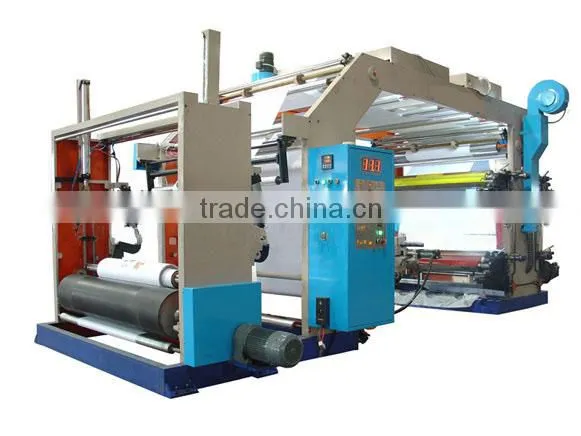

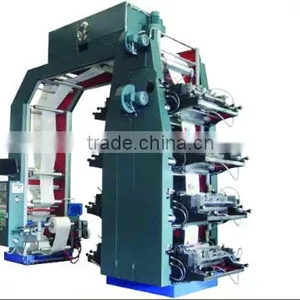

Four Colors Flexo Printing Machine

Main Technical Parameter

Max. Roll Width

800mm

Max. Printing Width

760mm

Printing Length

191-1000mm

Printing Colors

6 colors

Printing Plate Lifting System

Hydraulic press control

Max. Mechanical Speed

80m/min

Max. Printing Speed

70m/min

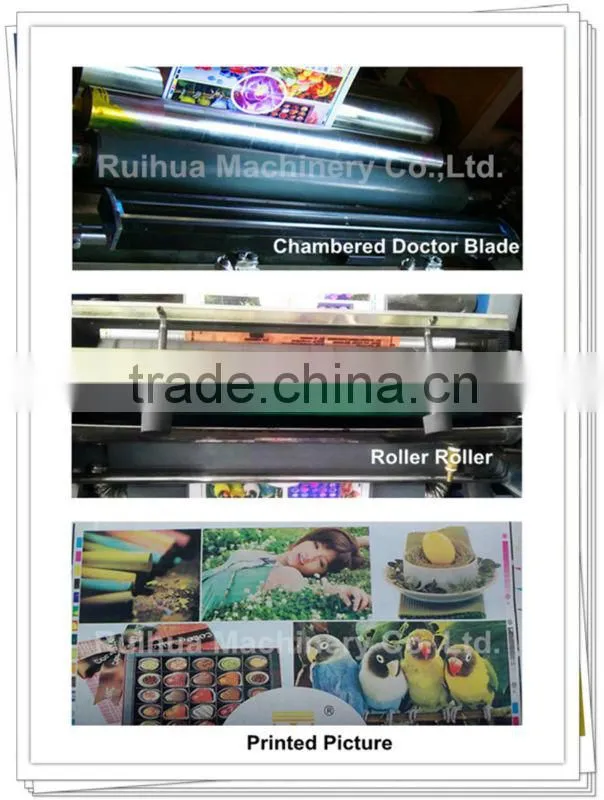

Anilox Roller

Ceramic Roller

Dimension

5200m×2300×3000mm

Specifications

Application Materials

4 color printing machine price

is suitable for various materials roll to roll printing, like paper, film(BOPP,PET,PE,OPP), Non woven fabric, woven bags,etc. Machine is widely used for shopping bag, paper bag, vest bag, garment bag printing.

Main

1. 4 Colors Flexo Printing Machinery
is with Delta PLC control and HMI, all the parameters are displayed on the monitor.

2.4 Colors Flexo Printing Machinery is with double frequency inverter motors for control. One is worked as the main motor, one is for rewinding control, stable working and power saving.

3. 4Colors Flexo Printing Machinery is with 2 sets Delta brand frequency inverter for the motor control. One for the main motor, one for the rewinding motor.

4. 4 Colors Flexo Printing Machinery is with magnetic brake for the unwind tension control

5. 4 Colors Flexo Printing Machinery is with 2 sets automatic tension controller for unwinding and rewinding, to provide constant tension control for unwinding and rewinding. Easy operation.

6. All transmission rollers have been dynamic/static balance treated.

7. 4Colors Flexo Printing Machinery is with emergency switch for urgent stop.

8. 4Colors Flexo Printing Machinery is with automatic meter counter. When reached the preset length, machine stop and alarm.

9. All the electric appliances has been gained the CE certificate.

10. Reversible printing 6 colors press for 6+0, 4+2 and 3+3.

11. Printing rolls should keep moving while machine halted

12. High dots presentation rate with high speed; clear and vivid stratification of printing; more stereoscopic and accurate registering precision
