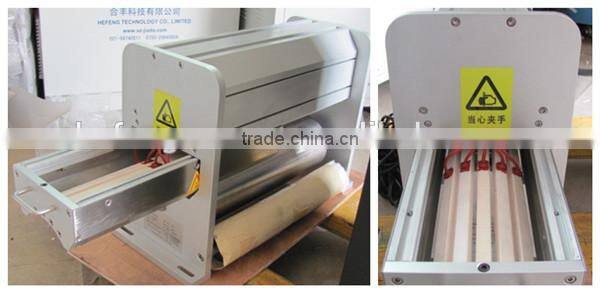

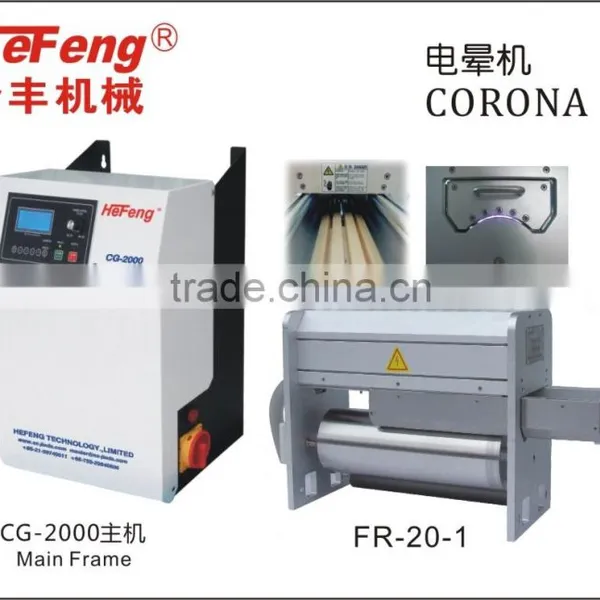

Help CenterFlexo Press Corona Treating System
Related Products
-
China Hot Selling Surface Energy Test PenUS$ 15 - 20MOQ: 1 Piece -
PET Film Dyne Test Inks With Low PriceUS$ 15 - 20MOQ: 1 Piece
-
PET Film Dyne Test With CE CertificateUS$ 15 - 20MOQ: 1 Piece
-
China Hot Selling Dyne Test Solutions With High QualityUS$ 15 - 20MOQ: 1 Piece
-
PVC Film Dyne Testing Procedure for WholesalesUS$ 15 - 20MOQ: 1 Piece
Specifications
1.I good sealing ability2. easy to clean ozone,
3. beautiful appearance.
4.Ceramic electrode quantity can be chosen
Output power:2-5KW
Input voltage: 220V /380V± 10%
Input frequency: 50/60Hz
Output voltage: 10-12KV
Output frequency: 15-25 KHz
Dimensions:
Packaging: wooden case
Warranty period:12 month except ceramic electrode
Used on: rotary printing press, flexographic press, rewinder, slitter, coating machine, laminating machine, etc.
Corona principle and role
Use high-frequency high-voltage on power pole in the discharge between the roller and corona,low-temperature plasma formed by ionization of air between the poles to produce ozone, which is a strong oxidizer, can change the molecular structure of plastic surface to make it non-polar into polarity. At the same time after the corona treating , it will cause uneven surface hole roughen,It will enhance surface activity, such as the increase in surface tension, that is, ink, glue, etc. will be able to further penetrate the material and processed to achieve he ideal effect on the printing and glue applicating.
certifaction
packaging:plywooden case
shipping; EXWORK /FOB/CIF
1. 15years industry experience and excellent research team.
2 best quatity, best price and best service.
3,we have our own patented products amd some products get the international CE certification.
4.the corona are custom designed for each installation as required.
we provide good quatity and best service.we are continuously developing new corona and palsma equipment to heip soving adheson problems
