Description:
High-speed CO2 Laser marking machine, using high-power CO2 RF laser tube and high-speed scan galvanometer system. Equipped with high qualified optic components, stable laser electrical source and full auto-controlling system. Marking precision is high, speed is high and the performance is super stable, so it can work continuously within long time. It can be directly applied to mass manufacturing streamlines.
Equipment Features:
1.General machine, adopted back focalization, laser power is controlled by the software and serially adjustable.It is applicable to fine marking on nonmetal materials with high requirements.
2.Adopting CO2 RF laser tube which has excellent performance and long life.
3.Adopting high-speed galvanometer system with high speed, high precision and stable performance.
4.Adopting imported optics lens, low loss, excellent focalization performance.
5.The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.
Specification:
| Model | XTL-CS10 |
| laser wavelength | 10.6UM |
| laser power | 10W |
| using life | 20K hours |
| mark linewidth | 0.15mm |
| marking field | 50*50*,70*70,100*100,140*140mm |
| marking speed | ≤7000mm/s |
| minimum character | 0.4mm |
| repeating orientation precision | +0.01mm |
| average power consumption | ≤0.6KM |
| power supply | 220V/50HZ 10A |
| humidity of the environment | 5% to 75%(no condensation ) |
| working environment | smoothly in a clean environment without vibrating or dirt in the air |
| cooling style | air cooling |

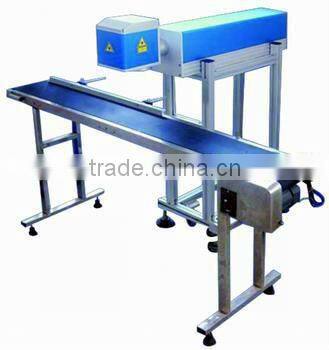

Mchine pictures:
Sample:
About us:
Certifications:
Exhibitions:
Name card:
