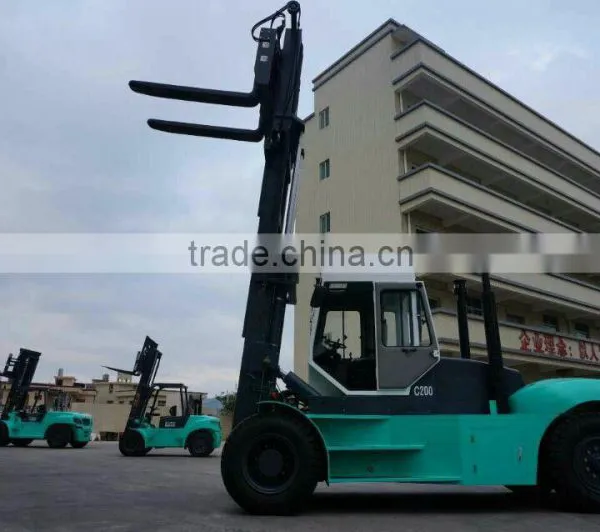

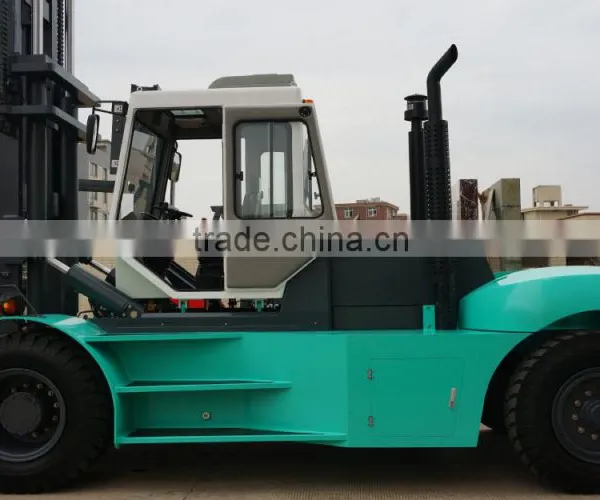

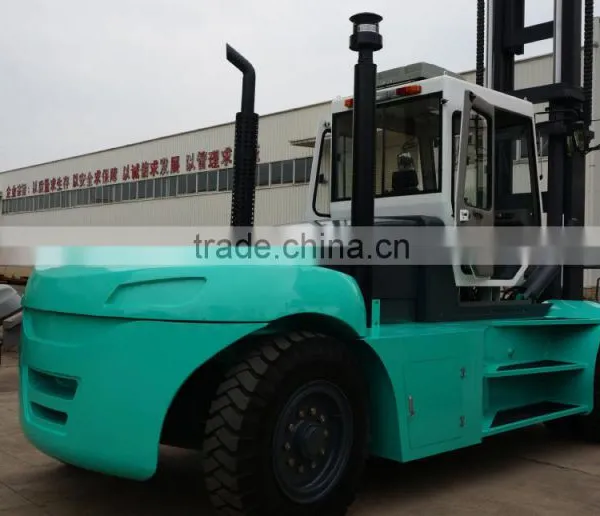

WONTONNE 20 Ton Forklift
General model for logistic use WONTONNE-HDF200
Introduction :
WONTONNE have very professional experience in studying and producing heavy duty forklift (7-30 tons) for stone, mine and terminal industries.
More improvement base on Product configuration:
1,Engine :6108 yuchai engine, more powerful.
2,Door frame :The door frame channel steel thickening and more reliable performance.
3,Drive axle: Drive axle is enhanced model,more strength. guarantee the reliability of the use,long service life.
4,Tyre:Front tyre choose 10.00-20 products, stronger bearing capacity, each tire can bear 400 kg more.
5 ,Steering bridge: Steering bridge use H2000 type product, high strength work more stable performance.
6.The radiator: The radiator of the material is copper ,Other brand of materials are generally use aluminum, copper is better than aluminum heat dissipation effect .
7. 20 TON Forklift Specification :
| Item | Specification | Unit | |||
| General | 1 | Model | CPCD200 | ||
| 2 | Photo | ||||
| 3 | Power Type/model | Diesel | |||
| 4 | Rated Capacity | Kg | 20000 | ||
| 5 | Load Center | mm | 900 | ||
| Dimensions | 6 | Lift Height | mm | 3500 | |
| 7 | Fork Size(LxWxT) | mm | 2200×220×100 | ||
| 8 | Fork Spread(outside)(Min./Max) | mm | 740/2260 | ||
| 9 | Mast Tilt Angle(F/R) | deg | 6·/12· | ||
| 10 | Fork Overhang | mm | 950 | ||
| 11 | Overall Dimensions | Length without forks | mm | 6000 | |
| 12 | Overall Width | mm | 2550 | ||
| 13 | Mast Lowered Height | mm | 4000 | ||
| 14 | Overhead Guard Height | mm | 3200 | ||
| 15 | Outer turning Radius | mm | 5600 | ||
| Performance | 16 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 17 | Lifting | mm/s | 300 | ||
| 18 | Max.gradeability(Load) | % | 20 | ||
| 19 | Max.drawbar pull(Load) | KN | 160 | ||
| 20 | service Weight | kg | 25000 | ||
| Wheels&Tires | 21 | Tire | Front | 4×12.00-24-24PR | |
| 22 | Rear | 2×12.00-24-24PR | |||
| 23 | Tread | Front | mm | 1850 | |
| 24 | Rear | mm | 2130 | ||
| 25 | Wheelbase | mm | 4050 | ||
| 26 | Ground Clearance(Under mast) | mm | 360 | ||
| Power & Transmission | 27 | Battery | Voltage/Capacity(5HR) | VA/h | 2×12/120 |
| 28 | Engine | Model | 6BTAA5.9-C190 | ||
| 29 | Manufacture | CUMMIS | |||
| 30 | Rated Output | Kw | 142 | ||
| 31 | Rated Torque | N.m | 800 | ||
| 32 | No.Of Cyinder | 6 | |||
| 33 | Bore*stroke | mm | 102*120 | ||
| 34 | Displacement | L | 5.9 | ||
| 35 | Transmissions | Manufacture | ZL50 | ||
| 36 | Type | Fluid TorqueConverter | |||
| 37 | StageFWD/RVS | 2/2 | |||
| 38 | Operating Pressute | Mpa | 19 | ||
