Help Center12 Tons Heavy Duty Forklift Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
CPCD120
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30 Ton Forklift Heavy Duty TruckUS$ 100,000 - 180,000MOQ: 1 Set -
25 Ton Heavy Duty Forklift TruckUS$ 100,000 - 150,000MOQ: 1 Set
-
Hydraulic Cummis 30tons Heavy Duty Forklift TruckNegotiableMOQ: 1 Set
-
Heavy Duty Forklift Truck(16-30 Tons)NegotiableMOQ: 1 Set
-
8 Ton Forklift With RotatorNegotiableMOQ: 1 Set
Place of Origin
China
Model Number
CPCD120
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
12000kg
Overall Dimensions
4460*2180*2710(mm)
Fork Width
175mm
Fork Length
1600mm
Power Souce
CNG Gas Engine
12 tons Heavy Duty Forklift Truck
More than ten years of developing and producing experience in heavy duty forklift,expecially stone an d mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
Applications:
The CPCD120 offers a new design in combination with improved economics and unmatched performance.
| Specification | Unit | Parameter | |
| Model | CPCD120 | ||
| Power Type/Model | Diesel | ||
| Rated Capacity | kg | 12000 | |
| Load Center | mm | 600 | |
| Lift Height | mm | 3000 | |
| Fork Size(LxWxT) | mm | 1600×175×90 | |
| Fork Spread(outside)(Min./Max.) | mm | 450/1960 | |
| Mast Tilt Angle(F/R) | deg | 6·/12 | |
| Fork Overhang | mm | 750 | |
| Overall Dimensions | Length without forks | mm | 4460 |
| Overall Width | mm | 2180 | |
| Mast Lowered Height | mm | 2710 | |
| Overhead Guard Height | mm | 2580 | |
| Outer turning Radius | mm | 4450 | |
| Speed(Unload/Load) | Travel | km/h | 24/20 |
| Lifting | mm/s | 300 | |
| Max.gradeability(Load) | % | 20 | |
| Max.drawbar pull(Load) | KN | 100 | |
| Service Weight | kg | 13500 | |
| Tire | Front | 4×11.00-20-16PR | |
| Rear | 2×10.00-20-16PR | ||
| Tread | Front | mm | 1600 |
| Rear | mm | 1770 | |
| Wheelbase | mm | 2950 | |
| Ground Clearance(Under mast) | mm | 260 | |
| Battery | Voltage/Capacity(5HR) | VA/h | 2*12/90 |
| Engine | Model | YC6B125-T21 | |
| Manufacture | WUCHAI | ||
| Rated Output | Kw | 92 | |
| Rated Torque | N.m | 460 | |
| No.Of Cyinder | 6 | ||
| Bore*stroke | mm | 108/125 | |
| Displacement | L | 6.871 | |
| Transmissions | Manufacture | ZHONGNAN | |
| Type | Fluid | ||
| Torque Converter | |||
| Stage FWD/RVS | 2/2 | ||
| Operating Pressute | Mpa | 19 | |

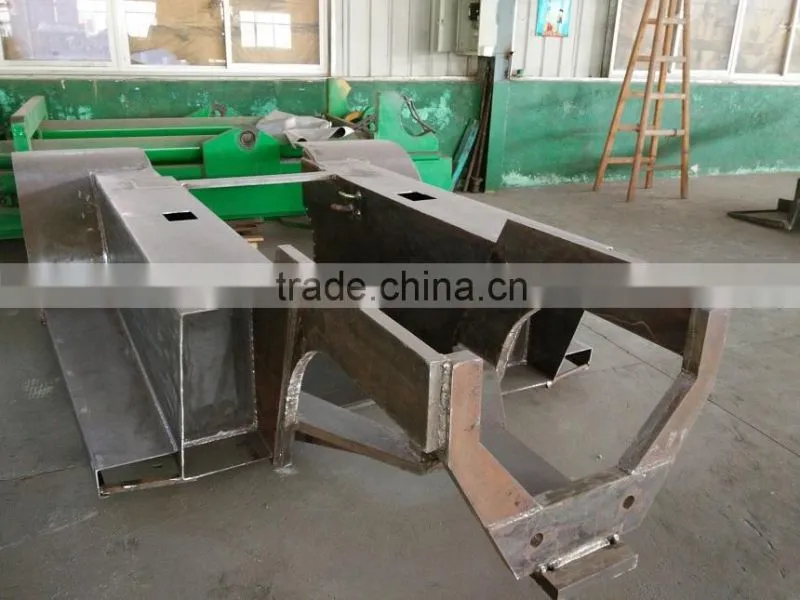

Finished Production:

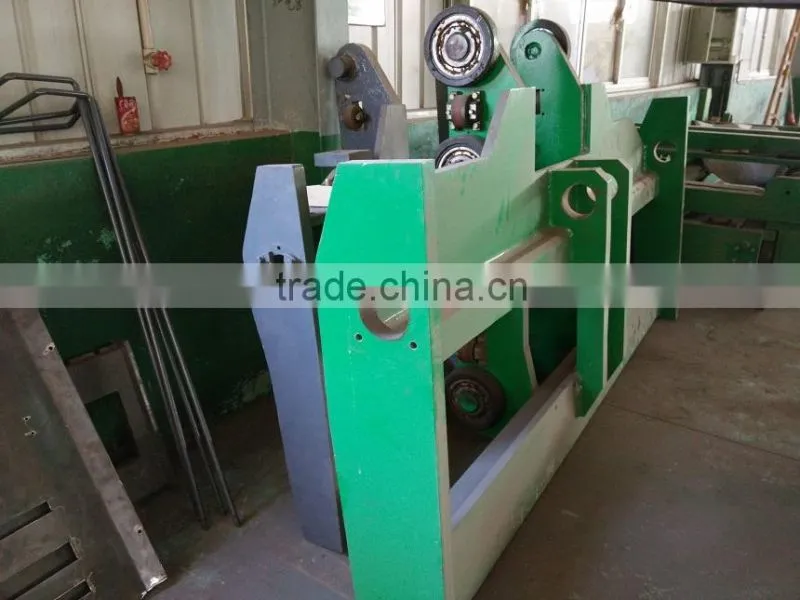

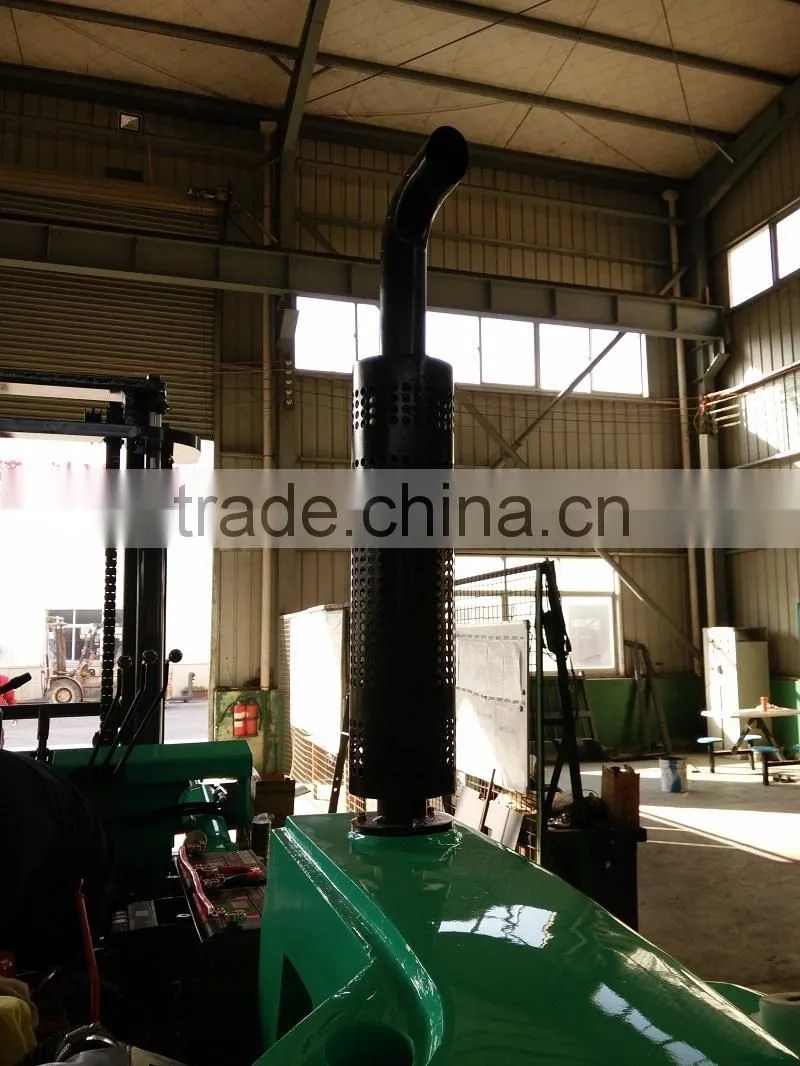

Key parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.

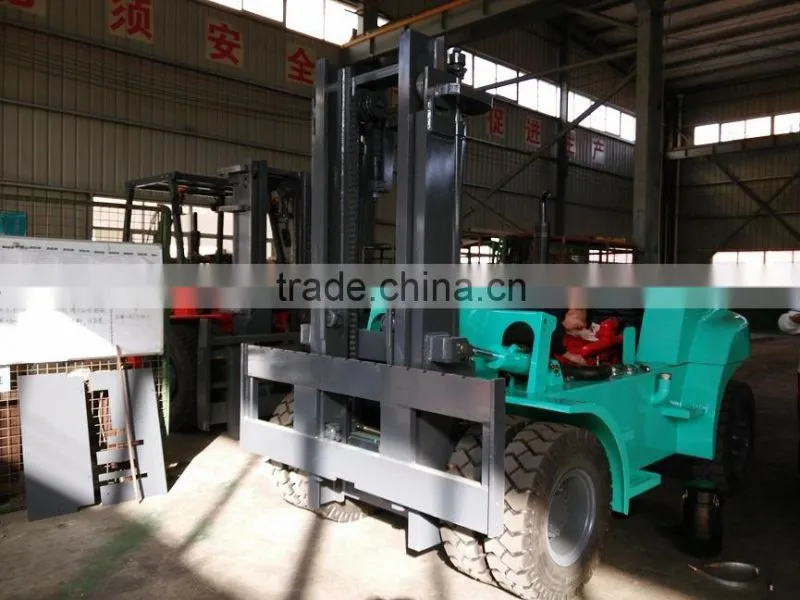

The truck before shipping out:
The truck port loading:
