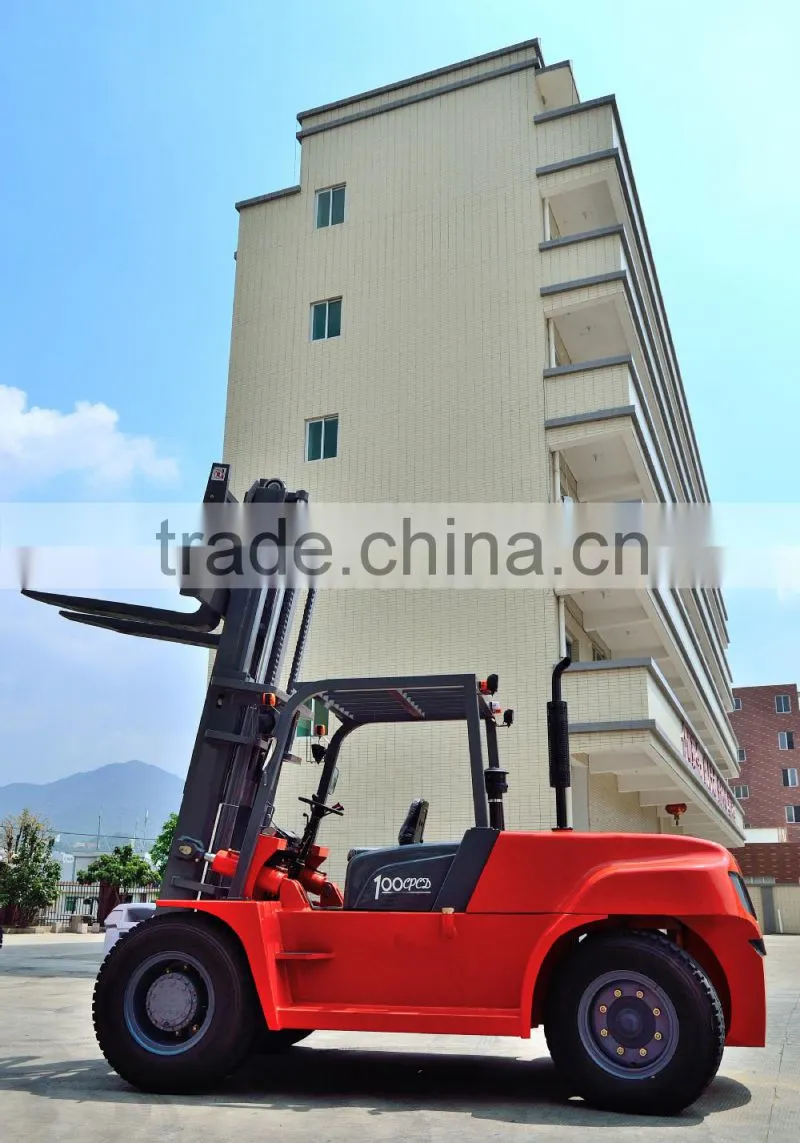

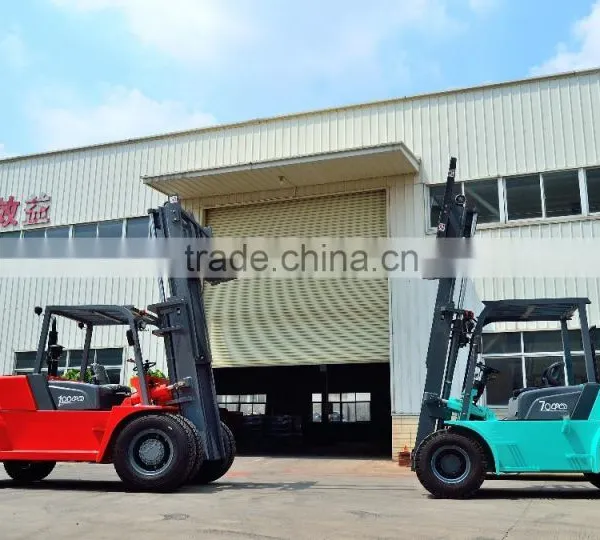

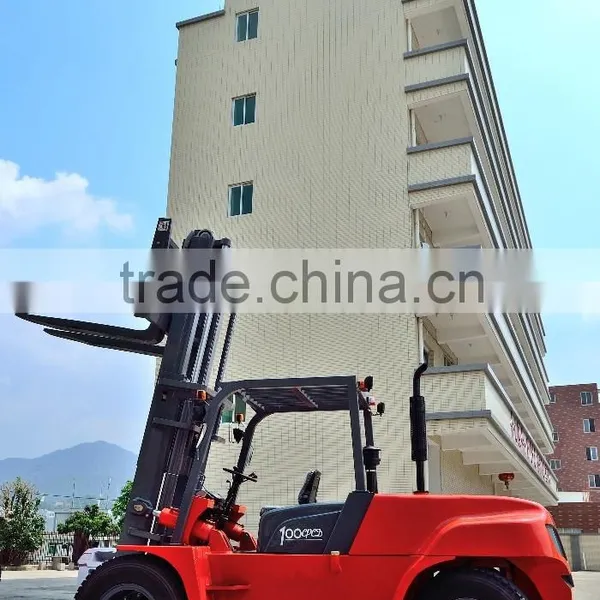

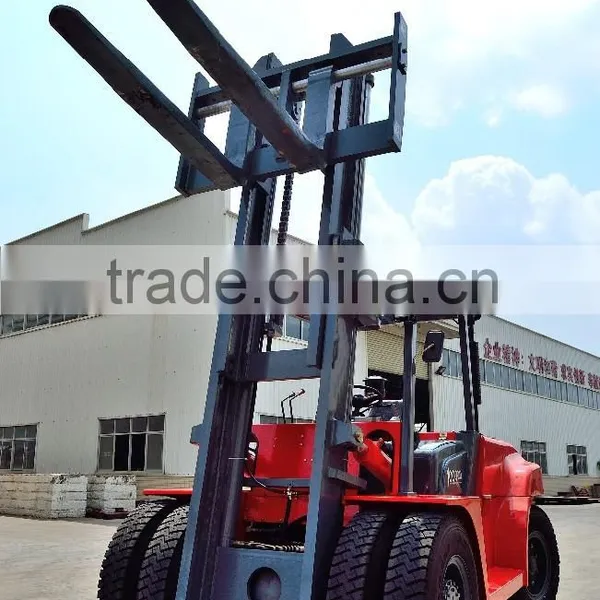

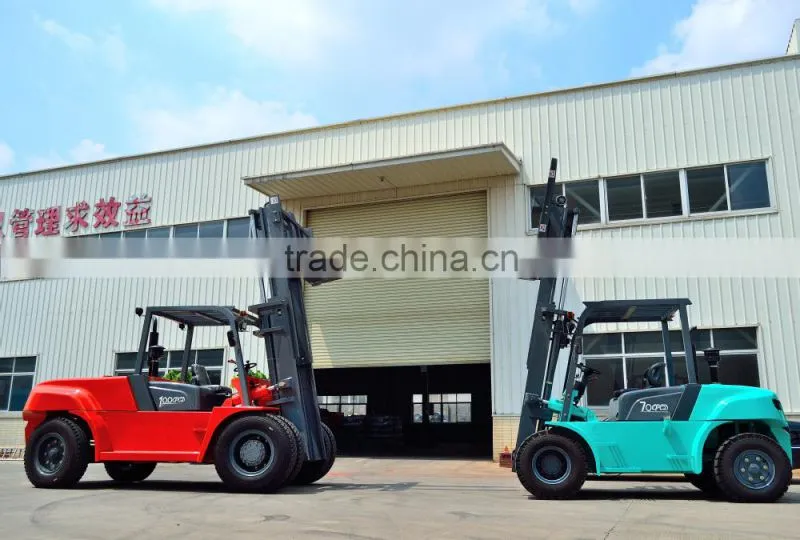

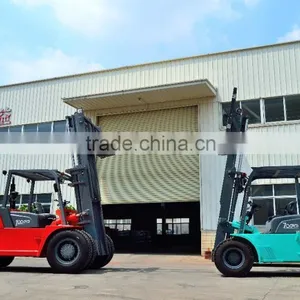

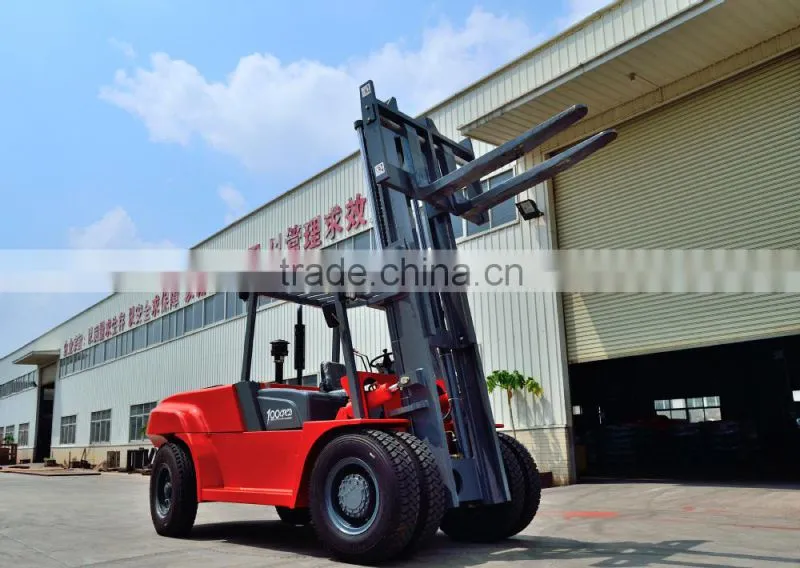

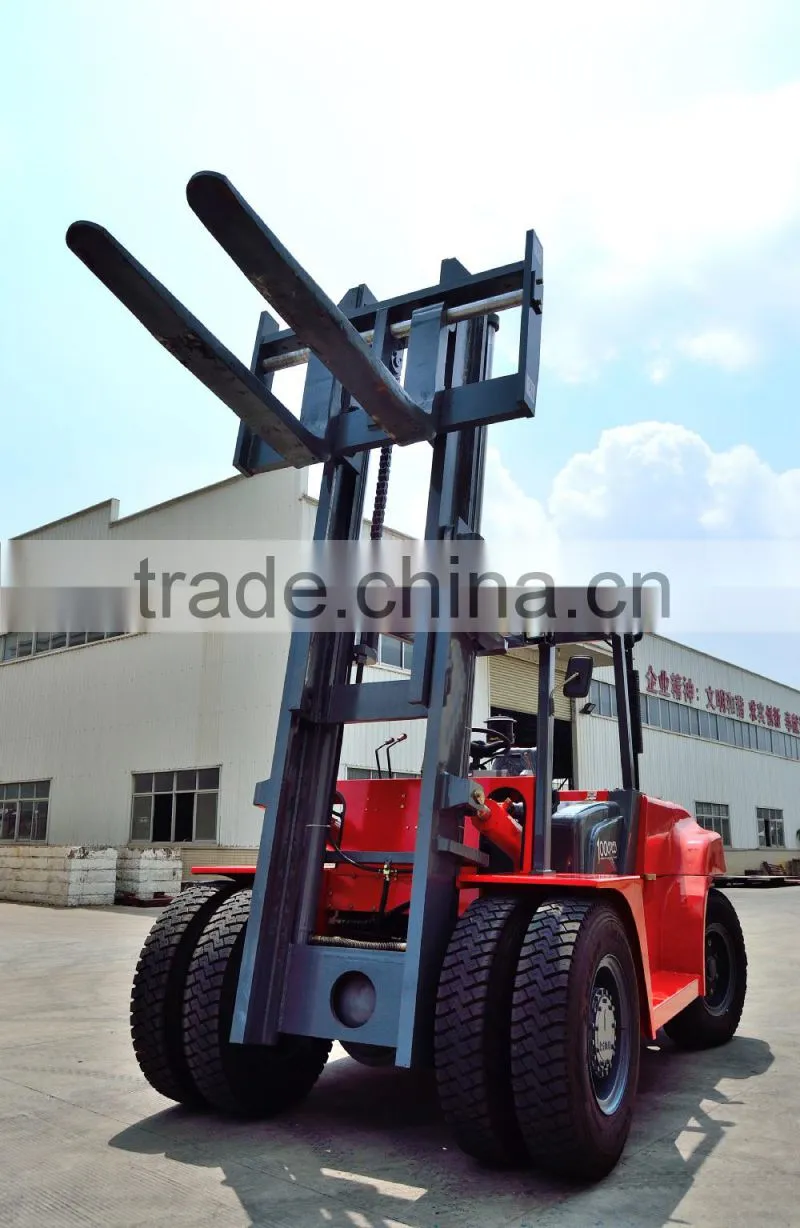

10 Tons Heavy Duty Forklift Truck

10 Tons Heavy Duty Forklift Truck thumbnail-1
10 Tons Heavy Duty Forklift Truck thumbnail-2
10 Tons Heavy Duty Forklift Truck thumbnail-3
10 Tons Heavy Duty Forklift Truck photo-1
10 Tons Heavy Duty Forklift Truck photo-2
10 Tons Heavy Duty Forklift Truck photo-3
US$ 25,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WONTONNE
Model Number:
CPCD100
Type:
Powered Pallet Truck
Contact Supplier Request Quote Chat Now
Xiamen Wontonne Tech Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WONTONNE
Model Number CPCD100
Type Powered Pallet Truck
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Rated Loading Capacity 10000kg
Overall Dimensions 4310*2180*2710(mm)
Fork Width 175mm
Fork Length 1220mm
Min. Lifting Height 2710mm
Max. Lifting Height 7000mm
Power Souce Diesel Engine



10 Tons Heavy Duty Forklift  Truck

More than ten years of developing and producing experience in heavy duty forklift,expecially stone and mining specilized model, which require more durability under bad and overload conditions.

We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.





Applications:



The CPCD100 offers a new design in combination with improved economics and unmatched performance.

 10 Tons Heavy Duty Forklift Truck



10 Tons Heavy Duty Forklift Truck



10 Tons Heavy Duty Forklift Truck



10 Tons Heavy Duty Forklift Truck





Item Specification Unit Parameter
General 1 Model   CPCD100
2 Power Type/model   Diesel
3 Rated Capacity Kg 10000
4 Load Center mm 600
Dimensions 5 Lift Height mm 3000
6 Fork Size(LxWxT) mm 1220×175×80
7 Fork Spread(outside)(Min./Max) mm 450/1960
8 Mast Tilt Angle(F/R) deg 6·/12·
9 Fork Overhang mm 750
10   Length without forks mm 4310
11 Overall Width mm 2180
12 Mast Lowered Height mm 2710
13 Overhead Guard Height mm 2580
14 Outer turning Radius   mm 4300
Performance 15 Speed(Unload/Load) Travel km/h 24/20
16 Lifting mm/s 300
17 Max.gradeability(Load) % 20
18 Max.drawbar pull(Load) KN 80
19 service Weight kg 12500
Wheels&Tires 20 Tire Front   4×10.00-20-16PR
21 Rear   2×9.00-20-16PR
22 Tread Front mm 1600
23 Rear mm 1770
24 Wheelbase mm 2800
25 Ground Clearance(Under mast) mm 260
Power&    Transmission       26 Battery Voltage/Capacity(5HR) VA/h 2×12/90
27 Engine Model   6BG1
28 Manufacture   ISUZU
29 Rated Output Kw 82
30 Rated Torque N.m 460
31 No.Of Cyinder   6
32 Bore*stroke mm 108/125
33 Displacement L 6.871
34 Transmissions Manufacture   ZHONGNAN
35 Type   Fluid TorqueConverter
36 StageFWD/RVS   2/2
  37 Operating Pressute Mpa 19





Production Line:



10 Tons Heavy Duty Forklift Truck





Key parts:

We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.

10 Tons Heavy Duty Forklift Truck10 Tons Heavy Duty Forklift Truck



The truck before shipping out:

10 Tons Heavy Duty Forklift Truck 10 Tons Heavy Duty Forklift Truck



The truck port loading:
 10 Tons Heavy Duty Forklift Truck  10 Tons Heavy Duty Forklift Truck
