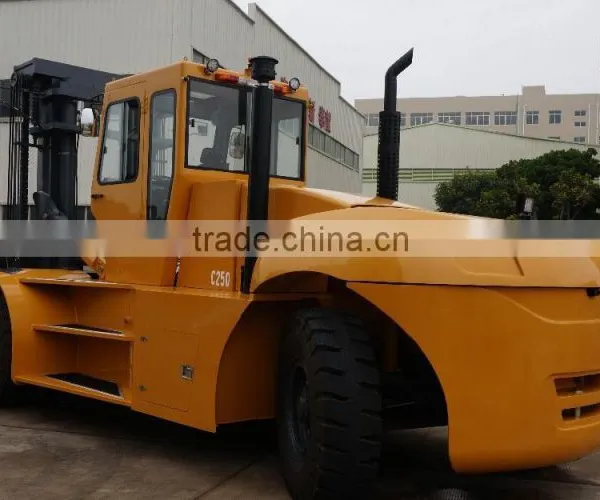

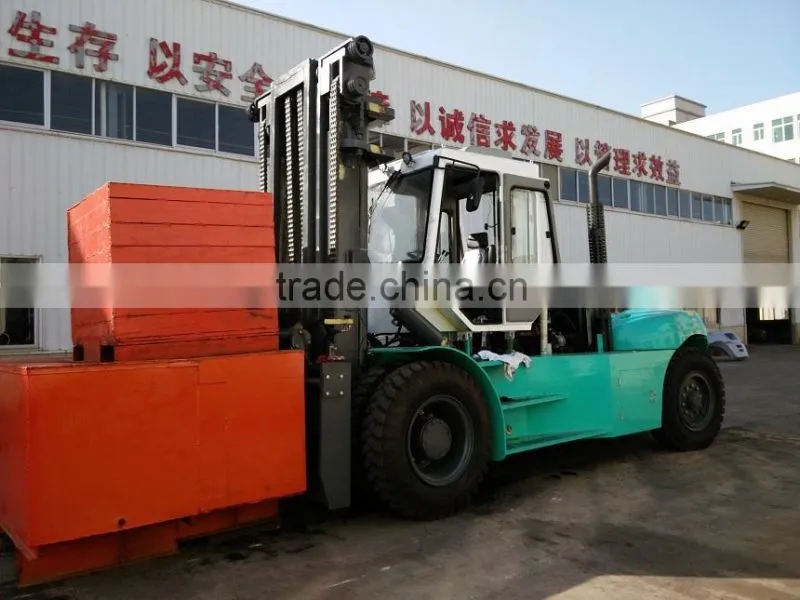

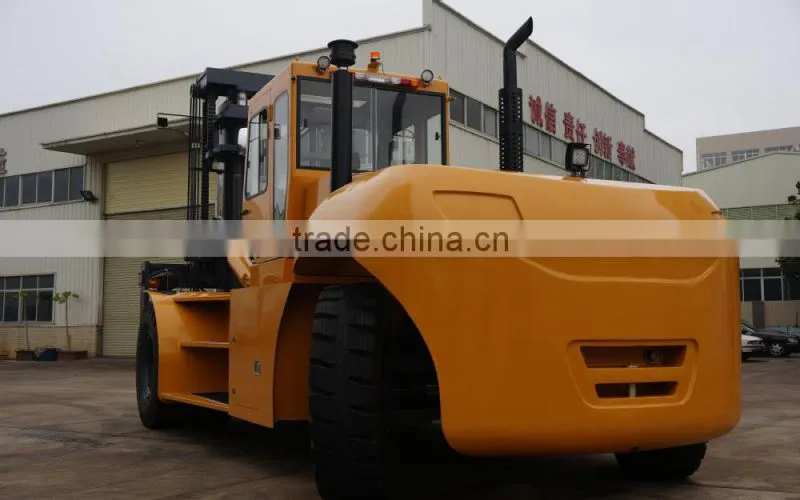

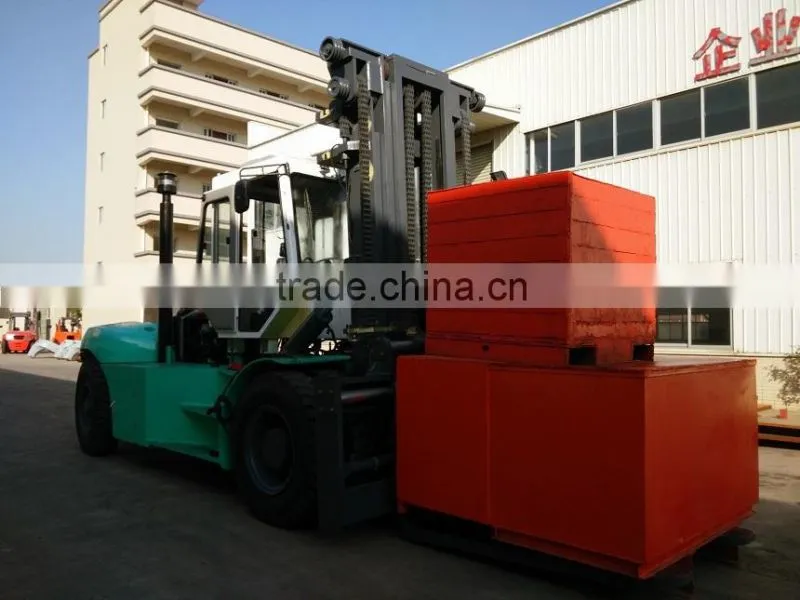

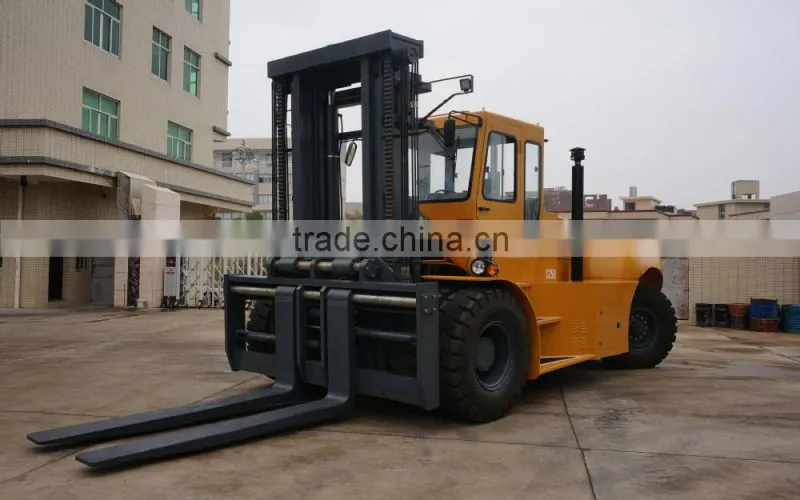

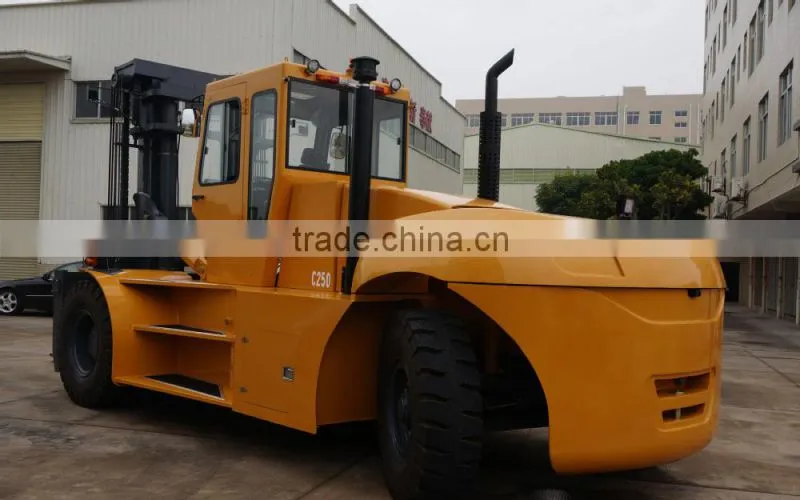

25 Ton Heavy Duty Forklift Truck
1.Applications:
The CPCD250 offers a new design in combination with improved economics and unmatched performance.
2.Specifications of 20 ton forklift
| Specification | Unit | Parameter | |
| Model | CPCD250 | ||
| Power Type/Model | Diesel | ||
| Rated Capacity | kg | 25000 | |
| Load Center | mm | 1250 | |
| Lift Height | mm | 4000 | |
| Fork Size(LxWxT) | mm | 2200×220×100 | |
| Fork Spread(outside)(Min./Max.) | mm | 1030/2640 | |
| Mast Tilt Angle(F/R) | deg | 6·/10 | |
| Fork Overhang | mm | 950 | |
| Overall Dimensions | Length without forks | mm | 6480 |
| Overall Width | mm | 3060 | |
| Mast Lowered Height | mm | 3810 | |
| Overhead Guard Height | mm | 3690 | |
| Outer turning Radius | mm | 6160 | |
| Speed(Unload/Load) | Travel | km/h | 30/26 |
| Lifting | mm/s | 300 | |
| Max.gradeability(Load) | % | 20 | |
| Max.drawbar pull(Load) | KN | 180 | |
| Service Weight | kg | 32000 | |
| Tire | Front | 4×14.00-24-24PR | |
| Rear | 2×14.00-24-20PR | ||
| Tread | Front | mm | 2200 |
| Rear | mm | 2170 | |
| Wheelbase | mm | 4400 | |
| Ground Clearance(Under mast) | mm | 360 | |
| Battery | Voltage/Capacity(5HR) | VA/h | 24V/120 |
| Engine | Model | WD10G | |
| Manufacture | WEICHAI | ||
| Rated Output | Kw | 162 | |
| Rated Torque | N.m | 2200 | |
| No.Of Cyinder | 6 | ||
| Bore*stroke | mm | 120/145 | |
| Displacement | L | 9.839 | |
| Transmissions | Manufacture | Z150 | |
| Type | Fluid | ||
| Torque Converter | |||
| Stage FWD/RVS | 2/1 | ||
| Operating Pressute | Mpa | 21 | |
1.Company Advantages
More than ten years of developing and producing experience in heavy duty forklift,expecially stone an d mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
2.Key parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.
3.The truck before shipping out:
4.The truck port loading:

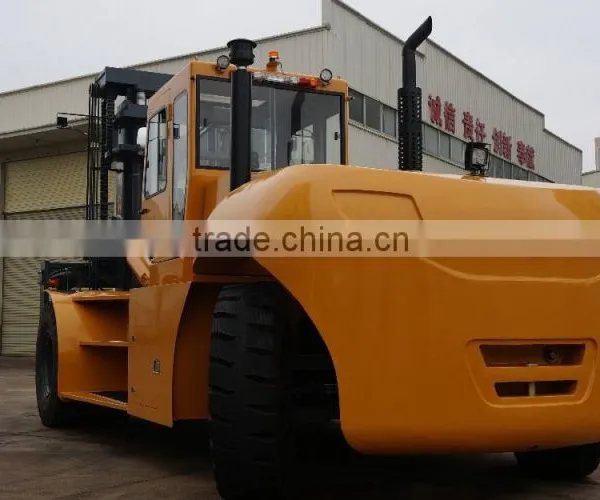

Finished Production:
