Help CenterHydraulic 25Tons Heavy Duty Forklift Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WONTONNE
Place of Origin:
China
Model Number:
CPCD250
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic 20Tons Heavy Duty Forklift TruckNegotiableMOQ: 1 Set -
16 Ton Forklift With Diesel EngineUS$ 25,000 - 40,000MOQ: 1 Set
-
12Tons Heavy Duty Forklift TruckNegotiableMOQ: 1 Set
-
10 Tons Heavy Duty Forklift TruckUS$ 25,000 - 35,000MOQ: 1 Set
-
7 Tons Heavy Duty Forklift TruckNegotiableMOQ: 1 Set
Brand Name
WONTONNE
Place of Origin
China
Model Number
CPCD250
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
25000kg
Overall Dimensions
6610*3060*3960(mm)
Fork Width
280mm
Fork Length
2200mm
Power Souce
CNG Gas Engine

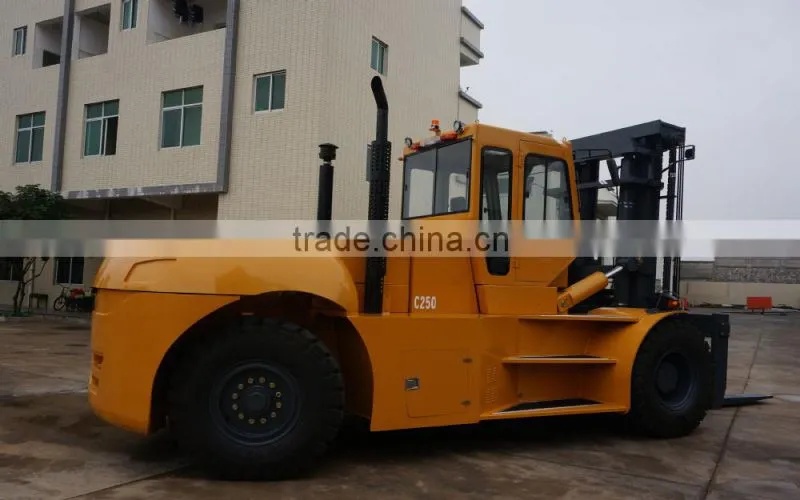

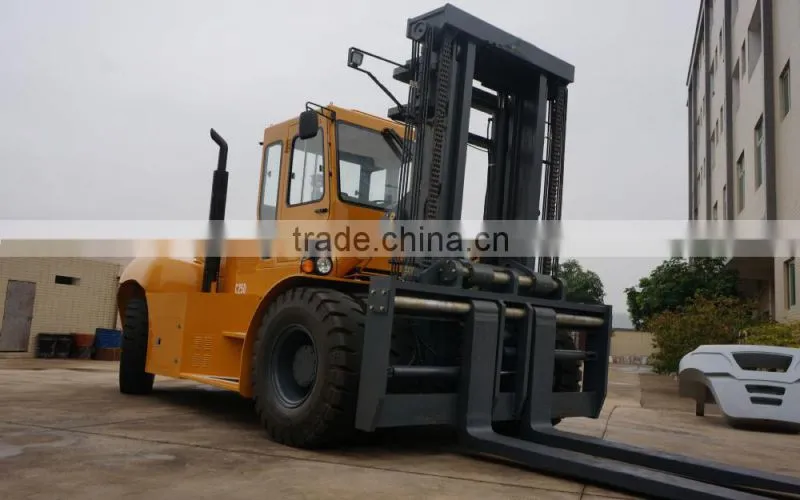

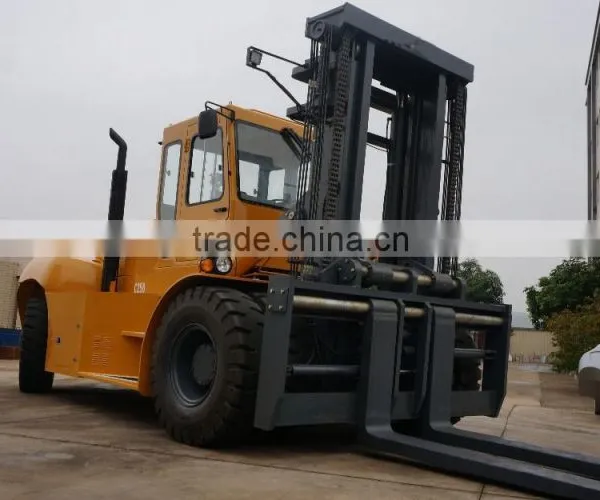

25 Tons Heavy Duty Forklift Truck
More than ten years of developing and producing experience in heavy duty forklift,expecially stone and mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
Applications:
The CPCD200 offers a new design in combination with improved economics and unmatched performance.
| Item | Specification | Unit | Parameter | ||
| General | 1 | Model | CPCD250 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 25000 | ||
| 4 | Load Center | mm | 1200 | ||
| Dimensions | 5 | Lift Height | mm | 4000 | |
| 6 | Fork Size(LxWxT) | mm | 2200×280×100 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 970/2640 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6·/10 | ||
| 9 | Fork Overhang | mm | 970 | ||
| 10 | Length without forks | mm | 6610 | ||
| 11 | Overall Width | mm | 3060 | ||
| 12 | Mast Lowered Height | mm | 3960 | ||
| 13 | Overhead Guard Height | mm | 3690 | ||
| 14 | Outer turning Radius | mm | 6160 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 180 | ||
| 19 | service Weight | kg | 32000 | ||
| Wheels&Tires | 20 | Tire | Front | 4×14.00-24-24PR | |
| 21 | Rear | 2×14.00-24-20PR | |||
| 22 | Tread | Front | mm | 2200 | |
| 23 | Rear | mm | 2170 | ||
| 24 | Wheelbase | mm | 4400 | ||
| 25 | Ground Clearance(Under mast) | mm | 360 | ||
| Power& Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/120 |
| 27 | Engine | Model | 6C8.3-C215 | ||
| 28 | Manufacture | CUMMIS | |||
| 29 | Rated Output | Kw | 162 | ||
| 30 | Rated Torque | N.m | 2200 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 120/145 | ||
| 33 | Displacement | L | 9.839 | ||
| 34 | Transmissions | Manufacture | ZL50 | ||
| 35 | Type | Fluid TorqueConverter | |||
| 36 | StageFWD/RVS | 2/1 | |||
| 37 | Operating Pressute | Mpa | 21 | ||
Production Line:
Key parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.
The truck before shipping out:
The truck port loading:
