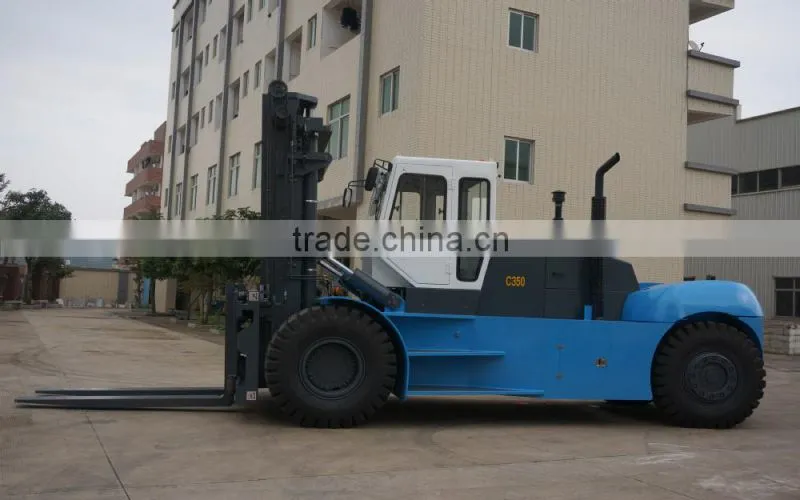

30 Ton Forklift Heavy Duty Truck
1.Applications:
The CPCD300 offers a new design in combination with improved economics and unmatched performance.
2.Specification
| Specification | Unit | Parameter | |
| Model | CPCD300 | ||
| Power Type/Model | Diesel | ||
| Rated Capacity | kg | 30000 | |
| Load Center | mm | 1250 | |
| Lift Height | mm | 4000 | |
| Fork Size(LxWxT) | mm | 2200×310×100 | |
| Fork Spread(outside)(Min./Max.) | mm | 1030/2640 | |
| Mast Tilt Angle(F/R) | deg | 6·/10 | |
| Fork Overhang | mm | 950 | |
| Overall Dimensions | Length without forks | mm | 6900 |
| Overall Width | mm | 3200 | |
| Mast Lowered Height | mm | 3810 | |
| Overhead Guard Height | mm | 3700 | |
| Outer turning Radius | mm | 6480 | |
| Speed(Unload/Load) | Travel | km/h | 30/26 |
| Lifting | mm/s | 300 | |
| Max.gradeability(Load) | % | 20 | |
| Max.drawbar pull(Load) | KN | 200 | |
| Service Weight | kg | 35000 | |
| Tire | Front | 4×14.00-24-28PR | |
| Rear | 2×14.00-24-28PR | ||
| Tread | Front | mm | 2300 |
| Rear | mm | 2150 | |
| Wheelbase | mm | 4800 | |
| Ground Clearance(Under mast) | mm | 320 | |
| Battery | Voltage/Capacity(5HR) | VA/h | 24V/150 |
| Engine | Model | WD615G | |
| Manufacture | WEICHAI | ||
| Rated Output | Kw | 175 | |
| Rated Torque | N.m | 2200 | |
| No.Of Cyinder | 6 | ||
| Bore*stroke | mm | 120/130 | |
| Displacement | L | 9.726 | |
| Transmissions | Manufacture | Z160 | |
| Type | Fluid | ||
| Torque Converter | |||
| Stage FWD/RVS | 2/1 | ||
| Operating Pressute | Mpa | 21 | |
1. Company Advantage
More than ten years of developing and producing experience in heavy duty forklift,expecially stone an d mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
2.Key parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.
Example shows:
1.Productions
2.The truck before shipping out:
3.The truck port loading:
