Help Center16 Ton Forklift With Diesel Engine
US$ 25,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WONTONNE
Model Number:
CPCD160
Type:
Powered Pallet Truck
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
WONTONNE
Model Number
CPCD160
Type
Powered Pallet Truck
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
16000kg
Overall Dimensions
5630*2550*3380(mm)
Fork Width
200mm
Fork Length
2000mm
Min. Lifting Height
2550mm
Max. Lifting Height
4500mm
Power Souce
Diesel Engine

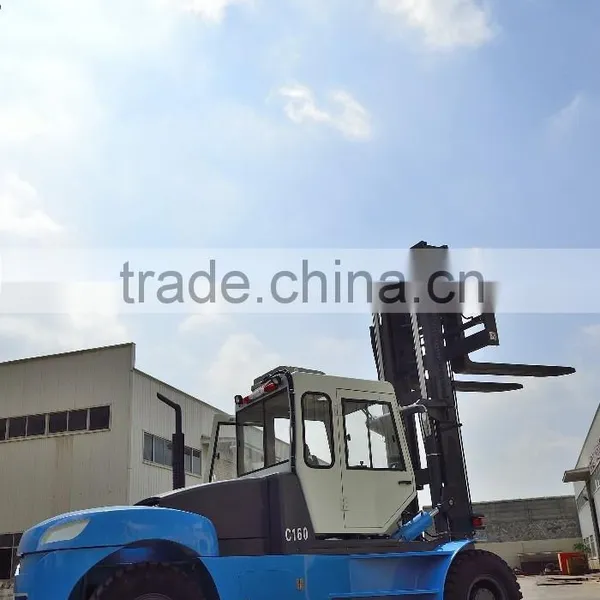

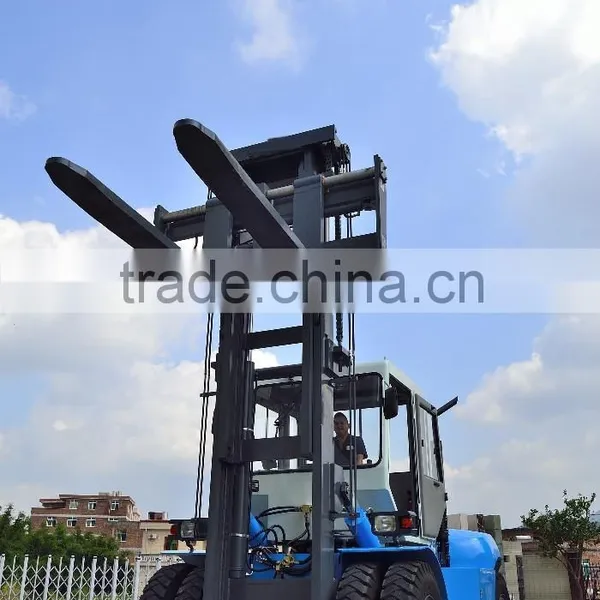

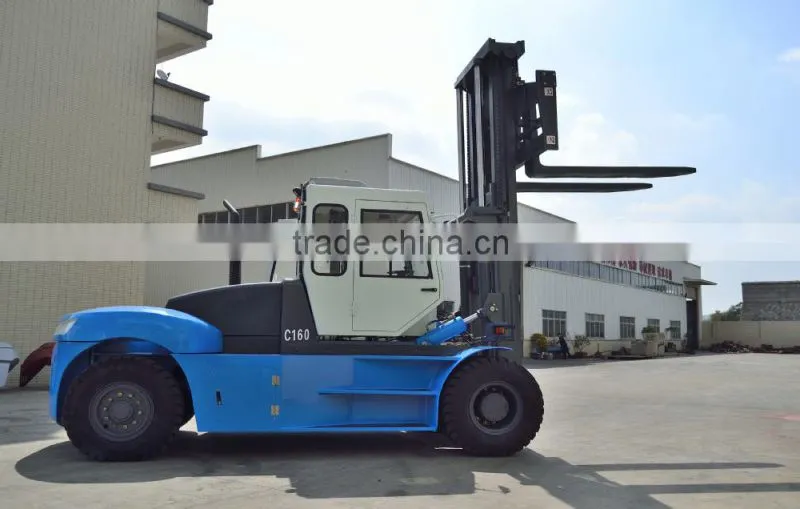

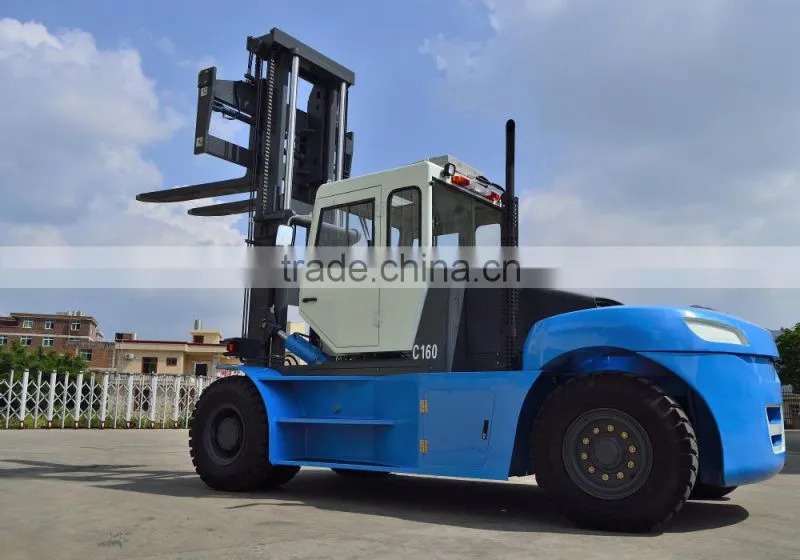

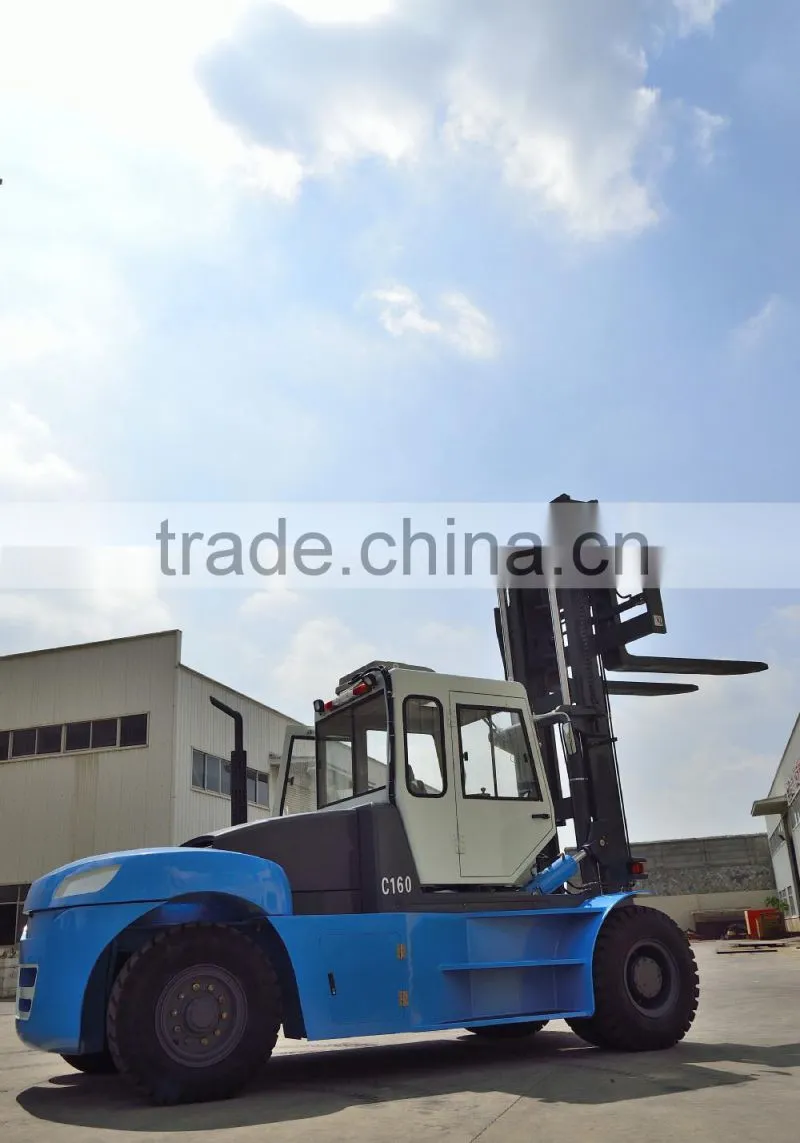

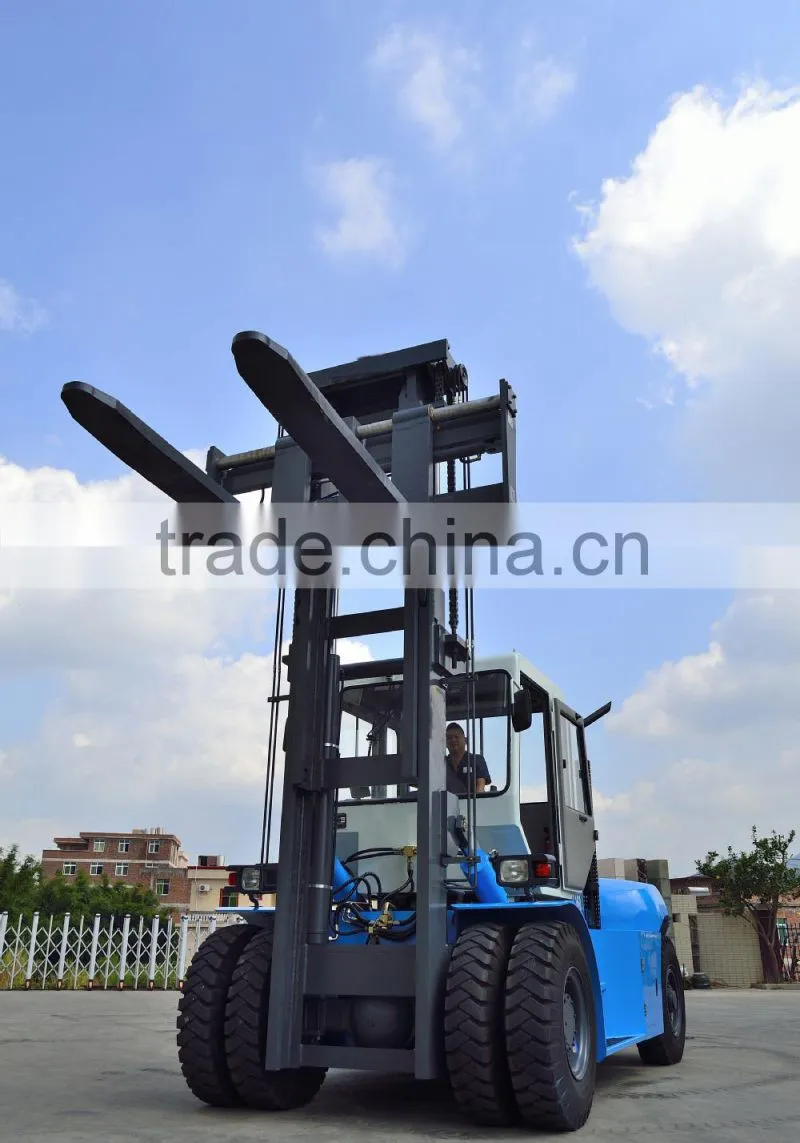

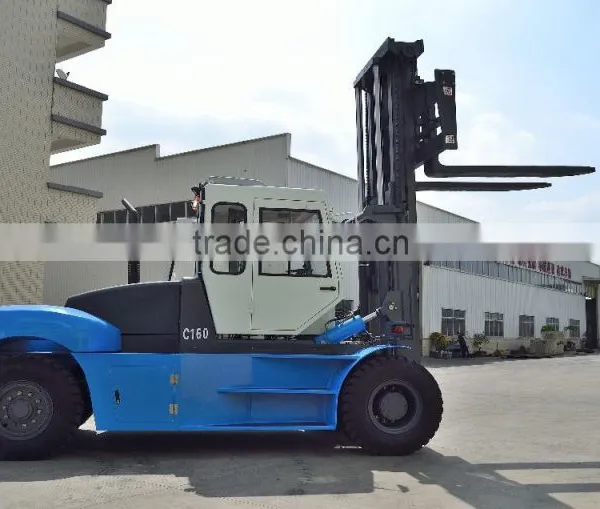

16 Ton Forklift with Diesel Engine
More than ten years of developing and producing experience in heavy duty forklift,expecially stone and mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
Applications:
The CPCD160 offers a new design in combination with improved economics and unmatched performance.
| Item | Specification | Unit | Parameter | ||
| General | 1 | Model | CPCD160 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 16000 | ||
| 4 | Load Center | mm | 900 | ||
| Dimensions | 5 | Lift Height | mm | 3500 | |
| 6 | Fork Size(LxWxT) | mm | 2000×200×100 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 540/2260 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6·/12· | ||
| 9 | Fork Overhang | mm | 880 | ||
| 10 | Length without forks | mm | 5630 | ||
| 11 | Overall Width | mm | 2550 | ||
| 12 | Mast Lowered Height | mm | 3380 | ||
| 13 | Overhead Guard Height | mm | 3250 | ||
| 14 | Outer turning Radius | mm | 5000 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 120 | ||
| 19 | service Weight | kg | 21000 | ||
| Wheels&Tires | 20 | Tire | Front | 4×12.00-20-18PR | |
| 21 | Rear | 2×12.00-20-18PR | |||
| 22 | Tread | Front | mm | 1850 | |
| 23 | Rear | mm | 2130 | ||
| 24 | Wheelbase | mm | 3800 | ||
| 25 | Ground Clearance(Under mast) | mm | 260 | ||
| Power& Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/120 |
| 27 | Engine | Model | 6BTAA5.9-C190 | ||
| 28 | Manufacture | CUMMIS | |||
| 29 | Rated Output | Kw | 142 | ||
| 30 | Rated Torque | N.m | 800 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 102*120 | ||
| 33 | Displacement | L | 5.9 | ||
| 34 | Transmissions | Manufacture | YQXD160 | ||
| 35 | Type | Fluid TorqueConverter | |||
| 36 | StageFWD/RVS | 3/3 | |||
| 37 | Operating Pressute | Mpa | 19 | ||
Production Line:

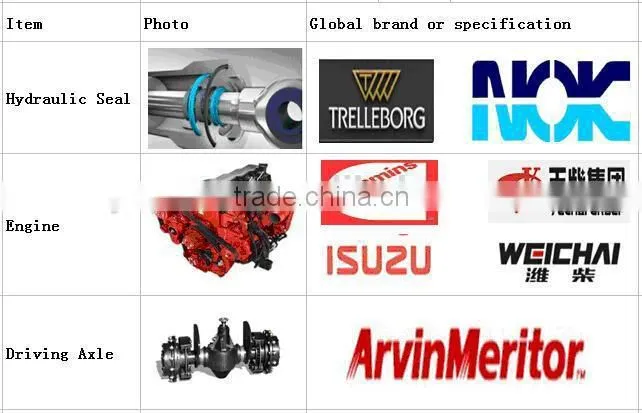

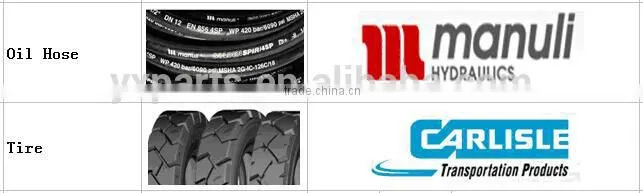

Key parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.
The truck before shipping out:
The truck port loading:
