Help Center7 Tons Heavy Duty Forklift Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WONTONNE
Place of Origin:
China
Model Number:
CPCD70
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12 Tons Heavy Duty Forklift TruckNegotiableMOQ: 1 Set -
30 Ton Forklift Heavy Duty TruckUS$ 100,000 - 180,000MOQ: 1 Set
-
25 Ton Heavy Duty Forklift TruckUS$ 100,000 - 150,000MOQ: 1 Set
-
Hydraulic Cummis 30tons Heavy Duty Forklift TruckNegotiableMOQ: 1 Set
-
Heavy Duty Forklift Truck(16-30 Tons)NegotiableMOQ: 1 Set
Brand Name
WONTONNE
Place of Origin
China
Model Number
CPCD70
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
7000kg
Overall Dimensions
3590*1995*2625(mm)
Fork Width
150mm
Fork Length
1220mm
Power Souce
CNG Gas Engine

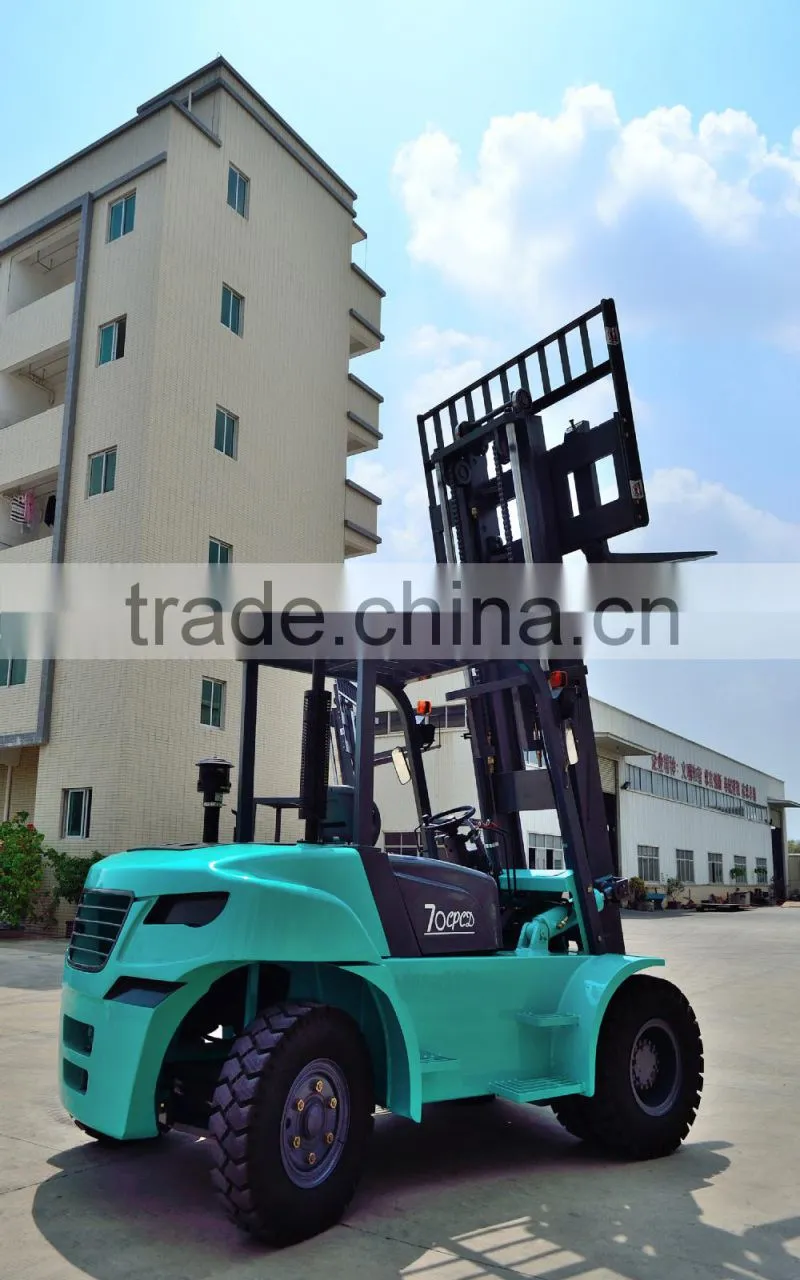

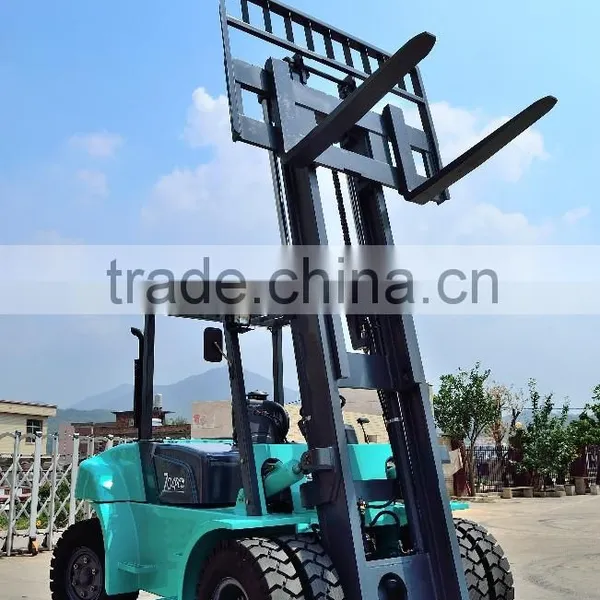

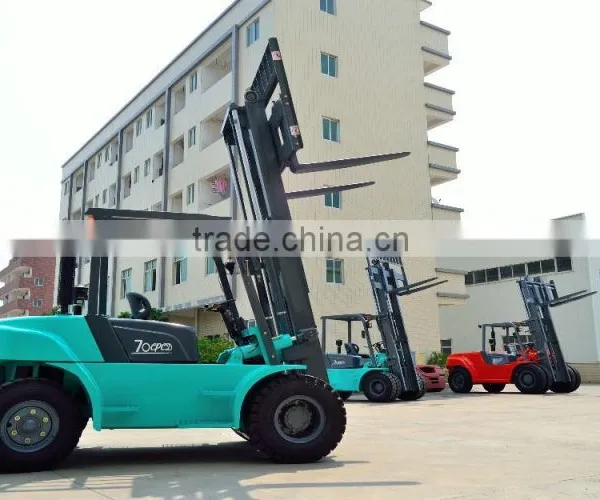

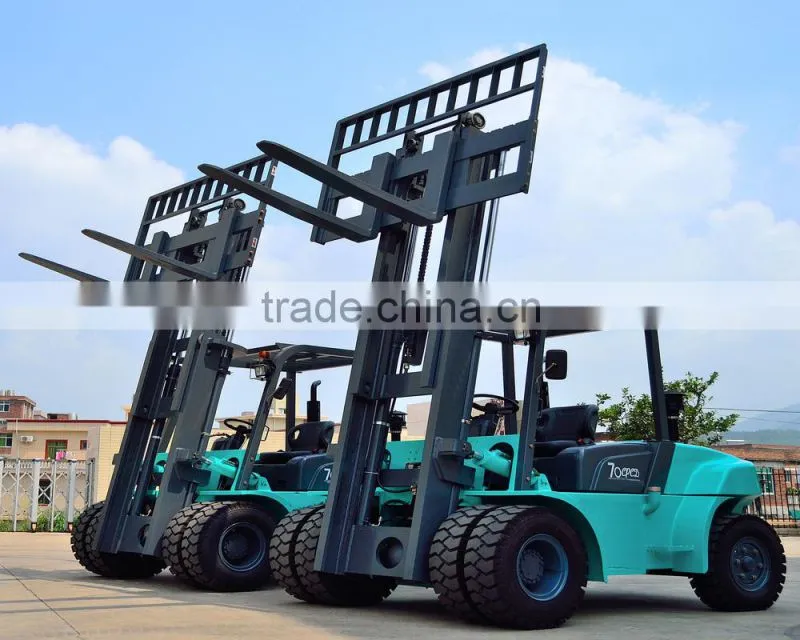

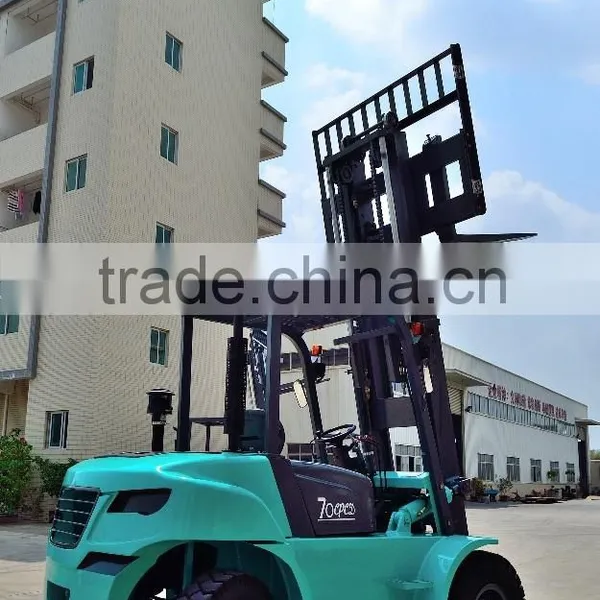

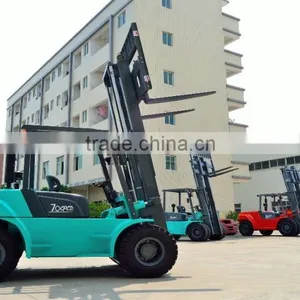

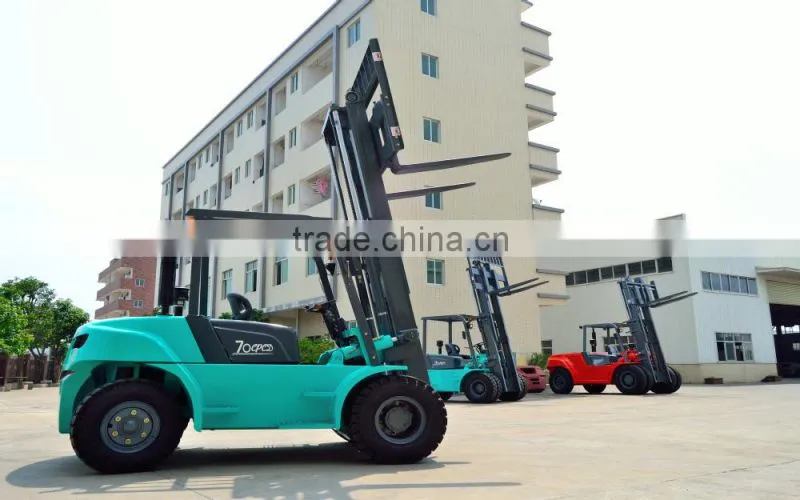

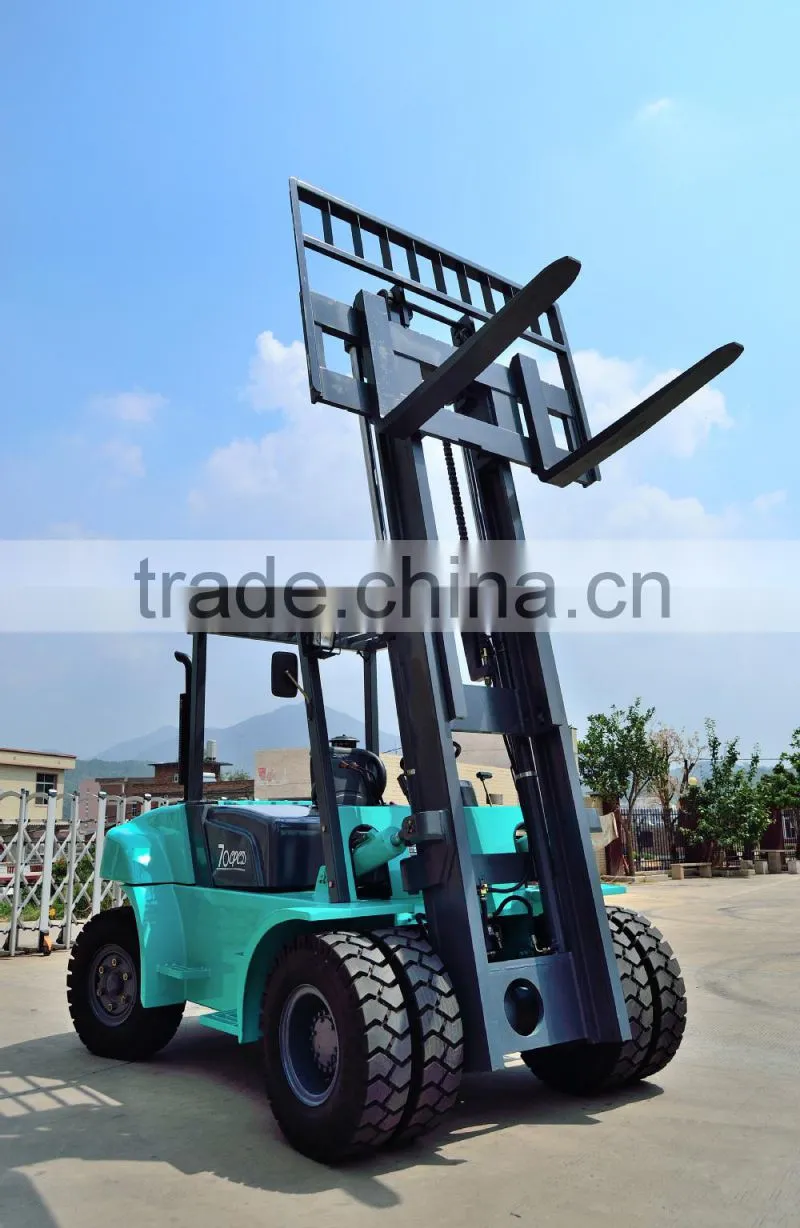

7 Tons Heavy Duty Forklift Truck
More than ten years of developing and producing experience in heavy duty forklift,expecially stone and mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
Applications:
The CPCD70 offers a new design in combination with improved economics and unmatched performance.
| Item | Specification | Unit | Parameter | ||
| General | 1 | Model | CPCD70 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 7000 | ||
| 4 | Load Center | mm | 600 | ||
| Dimensions | 5 | Lift Height | mm | 3000 | |
| 6 | Fork Size(LxWxT) | mm | 1220×150×65 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 450/1960 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6·/12· | ||
| 9 | Fork Overhang | mm | 680 | ||
| 10 | Length without forks | mm | 3590 | ||
| 11 | Overall Width | mm | 1995 | ||
| 12 | Mast Lowered Height | mm | 2625 | ||
| 13 | Overhead Guard Height | mm | 2485 | ||
| 14 | Outer turning Radius | mm | 3360 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 22/11 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 35 | ||
| 19 | service Weight | kg | 9350 | ||
| Wheels&Tires | 20 | Tire | Front | 4×8.25-15-14PR | |
| 21 | Rear | 2×8.25-15-14PR | |||
| 22 | Tread | Front | mm | 1470 | |
| 23 | Rear | mm | 1550 | ||
| 24 | Wheelbase | mm | 2250 | ||
| 25 | Ground Clearance(Under mast) | mm | 220 | ||
| Power& Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2×12/80 |
| 27 | Engine | Model | 6BG1 | ||
| 28 | Manufacture | ISUZU | |||
| 29 | Rated Output | Kw | 82 | ||
| 30 | Rated Torque | N.m | 353 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 102/118 | ||
| 33 | Displacement | L | 5.785 | ||
| 34 | Transmissions | Manufacture | ZHONGNAN | ||
| 35 | Type | Fluid TorqueConverter | |||
| 36 | StageFWD/RVS | 2/2 | |||
| 37 | Operating Pressute | Mpa | 19 | ||
Production Line:
Key parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.
The truck before shipping out:
The truck port loading:
