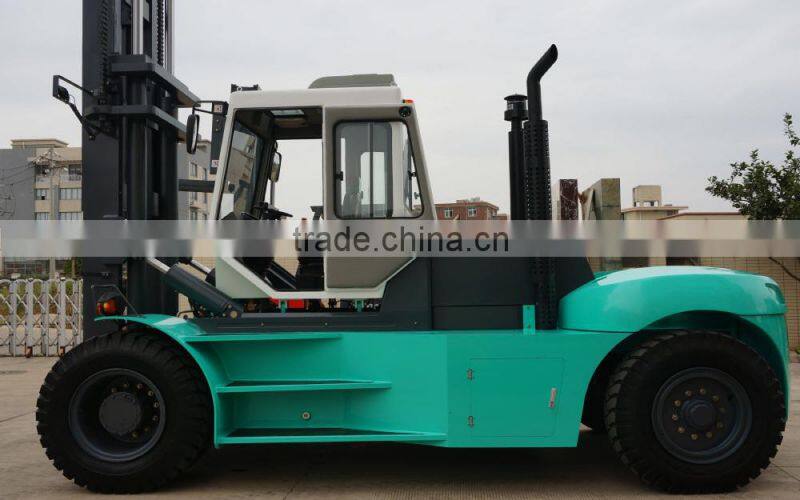

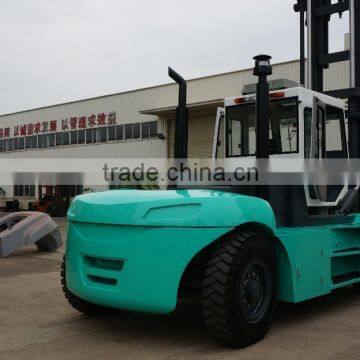

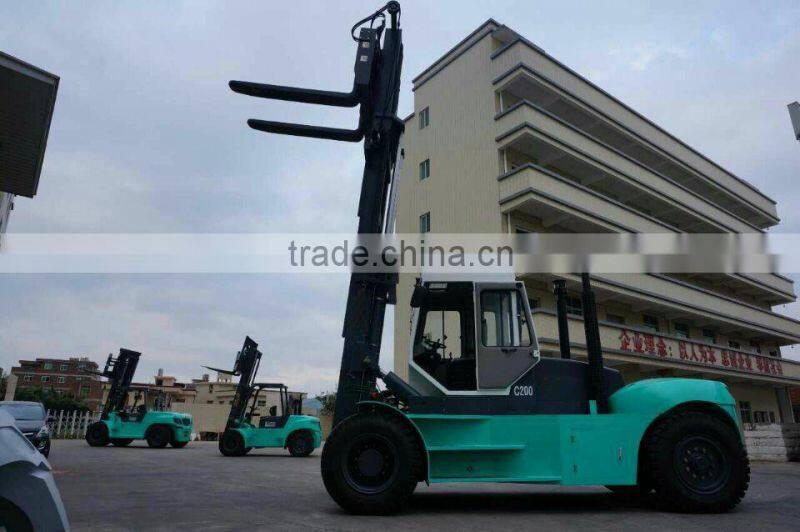

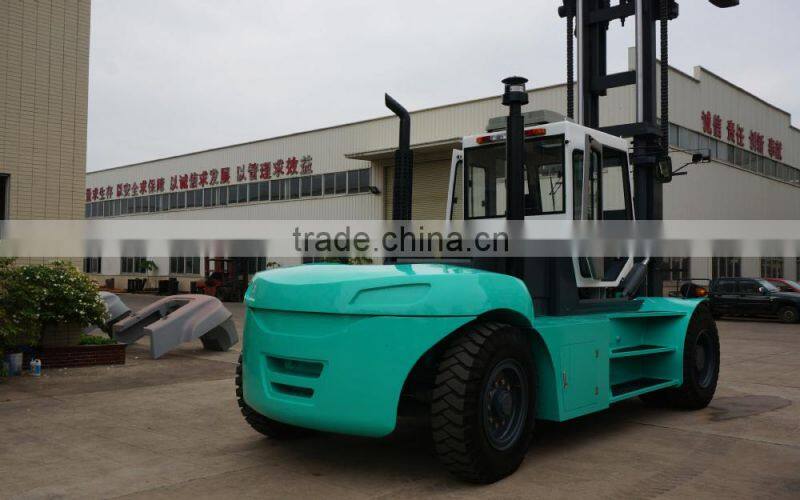

20 tons Heavy Duty Forklift Truck
More than ten years of developing and producing experience in heavy duty forklift,expecially stone an d mining specilized model, which require more durability under bad and overload conditions.
We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.
Applications:
The CPCD200 offers a new design in combination with improved economics and unmatched performance.
| Item | Specification | Unit | Parameter | ||
| General | 1 | Model | CPCD200 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 20000 | ||
| 4 | Load Center | mm | 900 | ||
| Dimensions | 5 | Lift Height | mm | 3500 | |
| 6 | Fork Size(LxWxT) | mm | 2200×220×100 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 600/2260 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6·/12· | ||
| 9 | Fork Overhang | mm | 910 | ||
| 10 | Length without forks | mm | 6000 | ||
| 11 | Overall Width | mm | 2550 | ||
| 12 | Mast Lowered Height | mm | 3480 | ||
| 13 | Overhead Guard Height | mm | 3300 | ||
| 14 | Outer turning Radius | mm | 5600 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 160 | ||
| 19 | service Weight | kg | 25000 | ||
| Wheels&Tires | 20 | Tire | Front | 4×12.00-24-20PR | |
| 21 | Rear | 2×12.00-24-20PR | |||
| 22 | Tread | Front | mm | 1850 | |
| 23 | Rear | mm | 2130 | ||
| 24 | Wheelbase | mm | 4050 | ||
| 25 | Ground Clearance(Under mast) | mm | 300 | ||
| Power& Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2×12/120 |
| 27 | Engine | Model | 6BTAA5.9-C190 | ||
| 28 | Manufacture | CUMMIS | |||
| 29 | Rated Output | Kw | 142 | ||
| 30 | Rated Torque | N.m | 800 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 102*120 | ||
| 33 | Displacement | L | 5.9 | ||
| 34 | Transmissions | Manufacture | YQXD200 | ||
| 35 | Type | Fluid TorqueConverter | |||
| 36 | StageFWD/RVS | 3/3 | |||
| 37 | Operating Pressute | Mpa | 19 | ||

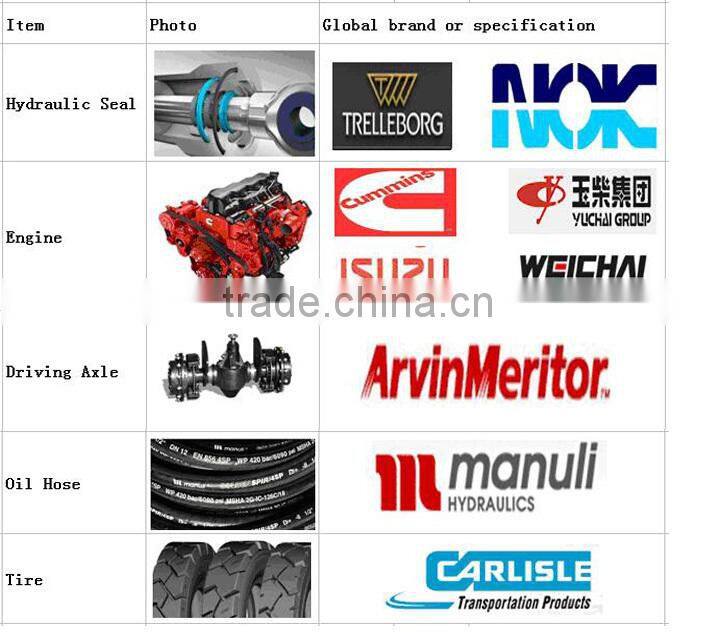

Key spare parts:
We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.

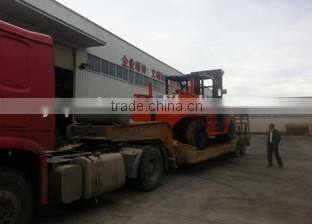

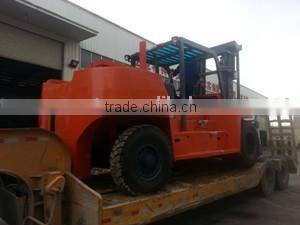

The truck before shipping out:

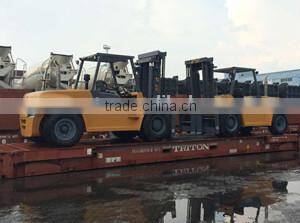

The truck port loading:
Our services:
Welcome OEM;
We can design as customer's requirement;
Provide whole solutions from production to handle.
