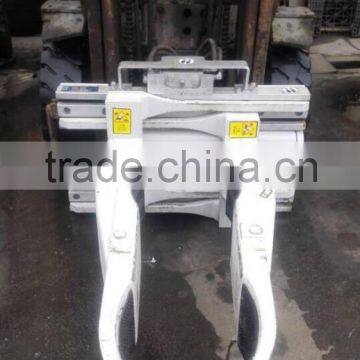

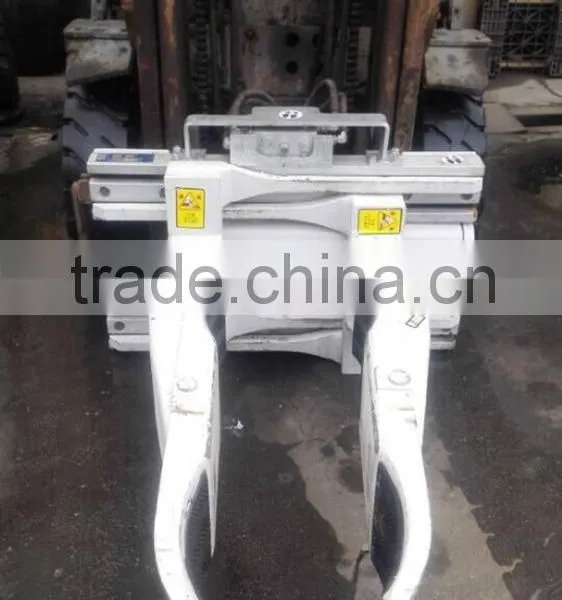

Drum Handling Equipment
1. Applications
Drum handling equipment can make the forklift carry two or four oil drums at the same time, to ensure that it is safe and reliable clamping in the process of transportation, significantly improve handing efficiency. Widely used in bulk cargo handing and pilling work, such as oil, petrochemical,food and other industries.
2.Features
Proven, durable T-beam arm and aluminum frame construction
Superior arm-slide bearing for extended service life
Regenerative hydraulic valving for optional arm speed
Excellent driver visibility
Rubber pads on the clamp arms can be replaced conveniently,it is economic and practical
WONTONNE brand is first class in China, which technology is from America.
Key parts and accessories are world class, which is different from other Chinese brands.
3.Options and Accessories:
Various mounting classes available
Custom opening ranges
Heightening and large clamp arm
Left and right clip arm independent movement type
4.Specification
|
Capacity@ Load Center (kg@mm) |
Catalog Order No. |
Mounting Class |
Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity CGH (mm) |
| 2 Drum Sideshift | ||||||||||
| 1400@500 | DTS15D-001A | II | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | II | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS20D-003A | II | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |
| 2 Drum Rotating | ||||||||||
| 1900@500 | DTR20D-004A | II | 520-1750 | 940 | 755 | 815 | 410 | 522 | 241 | 140 |
| 4 Drum Sideshift | ||||||||||
| 1400@500 | DFS15D-005A | III | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | II | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | III | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
| 4 Drum Rotating | ||||||||||
| 1900@500 | dfr20d-008a | III | 460-1690 | 940 | 775 | 815 | 335 | 613 | 239 | 277 |
