Brand Name WONTONNE
Model Number Hydraulic-Sideshifter

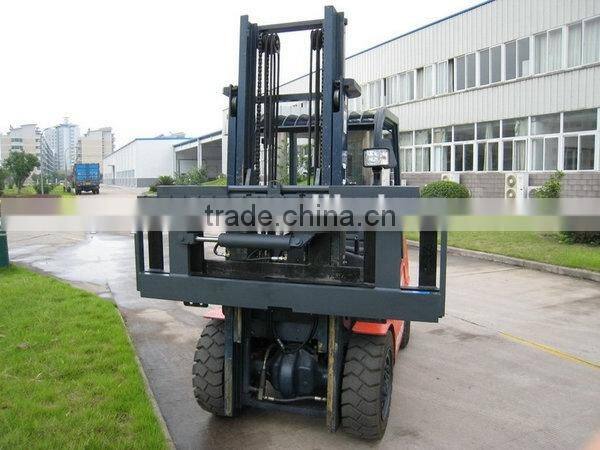

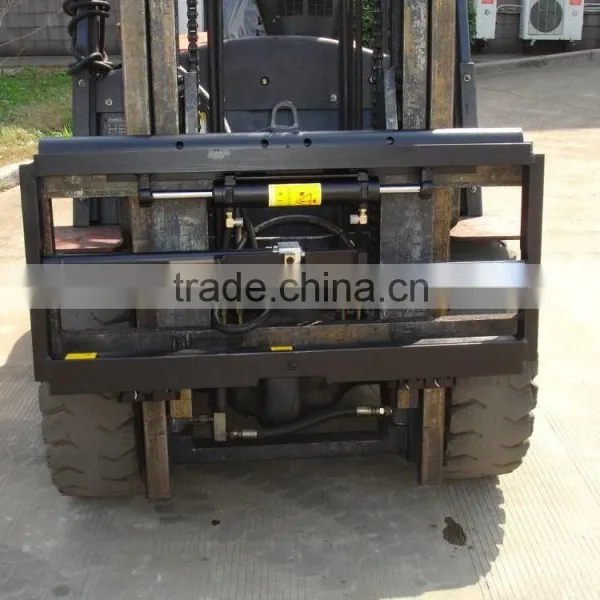

  Heavy Duty Forklift Side Shift with Cylinders



1. Functions and Applications



WONTONNE forklift side shift with cylinders are the most common attachment installed in forklift,

allowing side shifting of 100mm both goods, thus greatly improves the flexibility and moving

efficiency of the forklift. It is suitable for various occasions using for moving and stacking.

 Heavy Duty Forklift Side Shift with Cylinders







2. Features



-Integrate cylinder and sideshifter frame into a component, saving room and widening the view.

-Easy installed, directly connected to fork carriage.

-Double-headed rod cylinder, keep the same thrust force and speed on both sides of cylinders.

- The lower bearings used wear-resistant nylon-material to ensure smoothly move.

 -Highly efficiency, easy maintenance and operation.



Specification of forklift side shift with cylinders

Capaticy@ New Mounting Minimum Carriage Vertical Weight Effective Horizontal
Load Center Catalog Class Truck Width Center of   Thickness Center of
  Order No.   Carriage   Gravity     Gravity
      Width   VCG   ET CGH
(kg/mm)     (mm) W(mm) (mm) (kg) (mm) (mm)
4000@600 SSS40D-001B-1000 III 895 1000 392 140 66 33
4000@600 SSS40D-001B-1100 III 965 1100 392 150 66 33
4000@600 SSS40D-001B-1150 III 965 1150 392 155 66 33
4000@600 SSS40D-001B-1200 III 1016 1200 392 166 66 33
4000@600 SSS40D-001B-1250 III 1170 1250 392 200 66 33
4000@600 SSS40D-001B-1330 III 1210 1330 392 210 66 33
6800@600 SSS40D-001C-1532 IV 1220 1532 440 275 84 43
6800@600 SSS70D-001C-2400 IV 1220 2400 440 275 84 43
6800@600 SSS70D-001C-1840 IV 1525 1844 440 330 84 43
6800@600 SSS70D-001C-1700 IV 1525 1700 440 300 84 43
6800@600 SSS70D-001C-1330 IV 1220 1330 440 240 84 43
6800@600 SSS70D-001C-1670 IV 1372 1670 440 240 440 240





Product Tags: Heavy Duty Forklift Side Shift with Cylinders , WONTONNE
