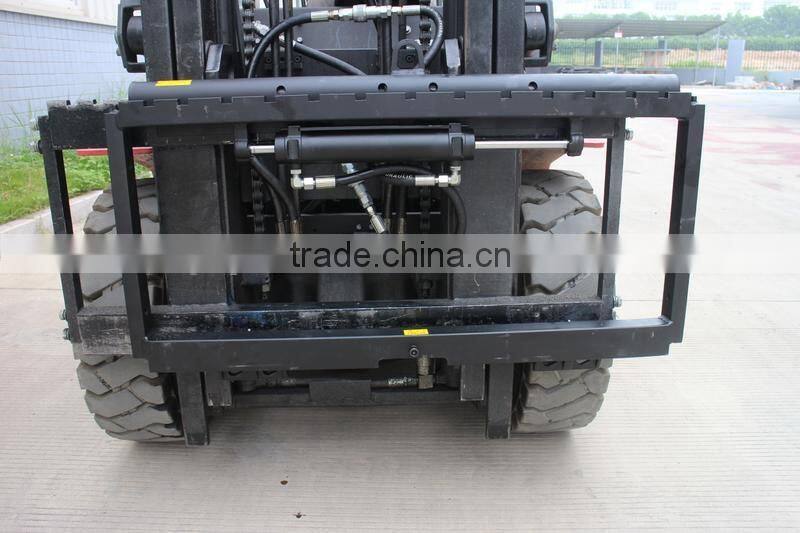

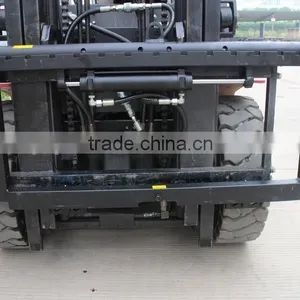

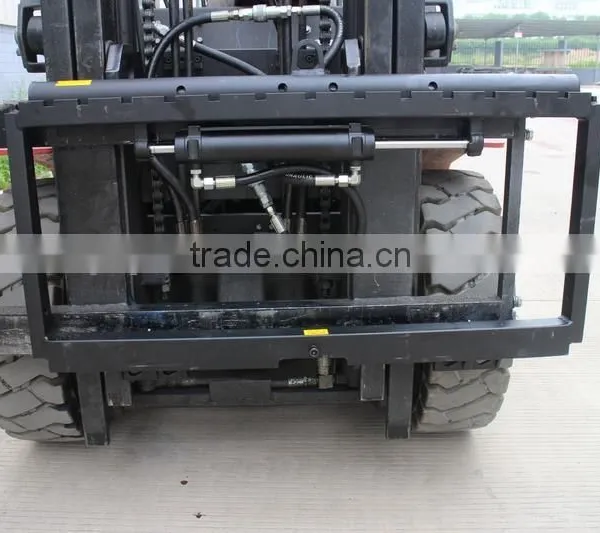

Forklift Side Shift



Product Description

1. Functions and Applications



WONTONNE forklift side shift is the most common attachment installed in forklift, allowing

side shifting of 100mm both goods, thus greatly improves the flexibility and moving efficiency of

 the forklift. It is suitable for various occasions using for moving and stacking.



Forklift Side Shift





2. Features

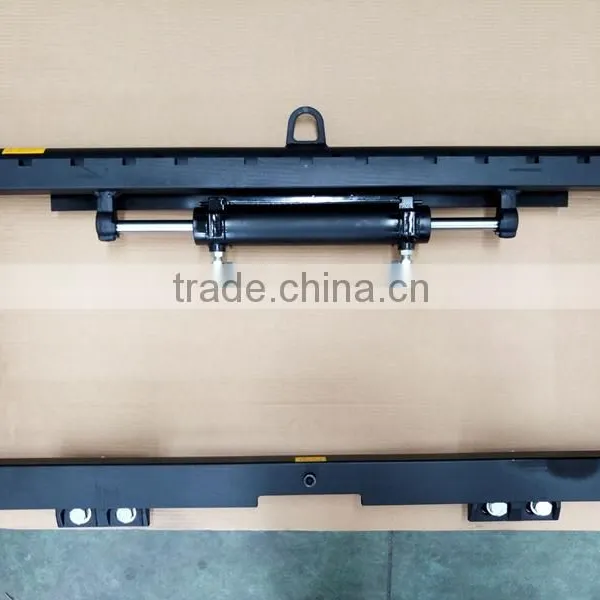

-Integrate cylinder and sideshifter frame into a component, saving room and widening the view.

-Easy installed, directly connected to fork carriage.

-Double-headed rod cylinder, keep the same thrust force and speed on both sides of cylinders.

- The lower bearings used wear-resistant nylon-material to ensure smoothly move.

 -Highly efficiency, easy maintenance and operation.



Specification of forklift side shift with 2.5-3.5T

Capaticy@ New Catalog  Mounting Minimum Carriage Vertical Weight Effective Horizontal
Load Center Order No. Class Truck Width Center of   Thickness Center of
      Carriage   Gravity     Gravity
      Width   VCG   ET CGH
(kg/mm)     (mm) W(mm) (mm) (kg) (mm) (mm)
2500@600 CYQ25F-B001-920 II 895 920 226 49 62 27
2500@600 CYQ25F-B001-970 II 895 970 226 50.5 62 27
2500@600 CYQ25F-B001-1020 II 895 1020 226 52 62 27
2500@600 CYQ25F-B001-1040 II 895 1040 226 53 62 27
2500@600 CYQ25F-B001-1070 II 1040 1070 226 54 62 27
2500@600 CYQ25F-B001-1100 II 1040 1100 226 55 62 27
2500@600 CYQ25F-B001-1200 II 1040 1200 226 58 62 27
2500@600 CYQ25F-B002-920 II 895 920 226 50 62 27
2500@600 CYQ25F-B002-970 II 895 970 226 21.5 62 27
2500@600 CYQ25F-B002-1020 II 895 1020 226 53 62 27
2500@600 CYQ25F-B002-1040 II 895 1040 226 54 62 27
2500@600 CYQ25F-B002-1070 II 1040 1070 226 55 62 27
2500@600 CYQ25F-B002-1100 II 1040 1100 226 56 62 27
2500@600 CYQ25F-B002-1200 II 1040 1200 226 59 62 27
3500@600 CYQ35F-C001-1070 III 935 1070 293 66 64 29
3500@600 CYQ35F-C001-1100 III 935 1100 293 67 64 29
3500@600 CYQ35F-C001-1115 III 1035 1115 293 68 64 29
3500@600 CYQ35F-C001-1150 III 1035 1150 293 69.5 64 29
3500@600 CYQ35F-C001-1200 III 1035 1200 293 71 64 29
3500@600 CYQ35F-C001-1245 III 1035 1245 293 73 64 29
3500@600 CYQ35F-C001-1300 III 1035 1300 293 74.5 64 29
3500@600 CYQ35F-C001-1350 III 1035 1350 293 77 64 29
3500@600 CYQ35F-C002-1070 III 935 1070 293 69 64 29
3500@600 CYQ35F-C002-1100 III 935 1100 293 70 64 29
3500@600 CYQ35F-C002-1115 III 1035 1115 293 71 64 29
3500@600 CYQ35F-C002-1150 III 1035 1150 293 72.5 64 29
3500@600 CYQ35F-C002-1200 III 1035 1200 293 74 64 29
3500@600 CYQ35F-C002-1245 III 1035 1245 293 76 64 29
3500@600 CYQ35F-C002-1300 III 1035 1300 293 77.5 64 29
3500@600 CYQ35F-C002-1350 III 1035 1350 293 80 64 29
