Forklift Push Pull Fork
1. Function And Applications
Can pull and push light goods pack with the help of sliding plate instead of pallet(eg.cardboard) safelyand efficiently.Only use sliding plate to realize loading, stacking, and reuse cardboard (only for SlidingPlate Reatinable Model ) .It can greatly improve production efficiency, saving the cost . It can be widely used in electronics, food, light industry and other industries.
2. Features
•Reasonable integrated structure, wide horizon, flexible and easy to operate;
•Loading and unloading goods can be done without pallets, and the application of low cost slip sheet meets the storage room of the pallets.
•The durable and smooth alloy fork plate can avoid damage to the connection part of the sliding plate during operation.
•Reasonable design of hydraulic elements make the hydraulic system get good protection and long
life.
•All materials are made of alloy with high strength.
•An oil-free lubrication system is applied to each joint ensures better protection of the pins and axles,
without maintenance.

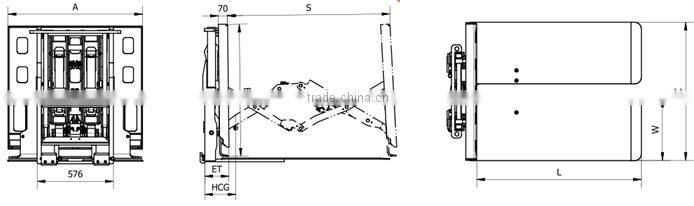

| Capacity@ | Type | Mounting |
Width & Height of Faceplate |
Platen Size |
Outside Platen Spacing |
Stroke |
Minimum Truck Carriage Width |
Weight | Effective | Horizontal | |
| Load Center | Catalog | Class | Thickness | Center of | |||||||
| Order No. | Gravity | ||||||||||
| A*B | W*L | ET | CGH | ||||||||
| (kg@mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | |||
| 1600@600 |
Sliding Plate Unreatinable |
QPB35E-001A | II | 1015*995 | 455*1220 | 1020 /1170 | 1270 | 820 | 380 | 185 | 240 |
| 1600@600 | QPB35E-002A | II | 1015*995 | 380*1220 | 870/1020 | 1270 | 820 | 368 | 185 | 223 | |
| 2000@600 | QPB45E-001A | II | 1015*995 | 455*1220 | 1020/1170 | 1270 | 820 | 398 | 185 | 266 | |
| 2000@600 | QPB45E-002A | II | 1015*995 | 380*1220 | 870/1020 | 1270 | 820 | 382 | 185 | 249 | |
| 1600@600 |
Sliding Plate Reatinable, QPA model |
QPA35E-001A | II | 1015*995 | 455*1220 | 1020/1170 | 1270 | 820 | 445 | 275 | 282 |
| 2000@600 | QPA45E-001A | II | 1015*995 | 455*1220 | 1020/1170 | 1270 | 820 | 456 | 275 | 293 |

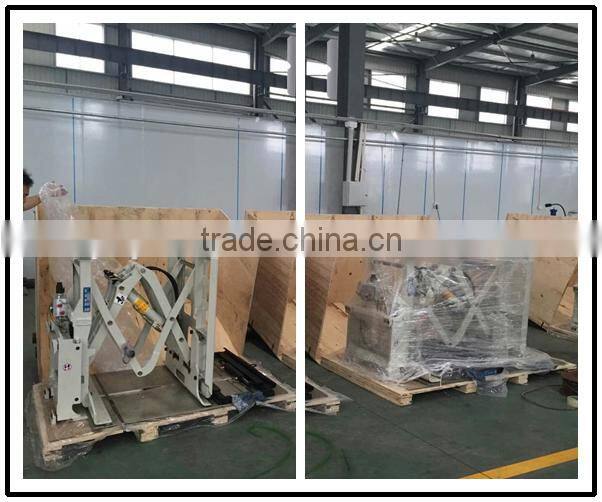

3. Packages
1.WONTONNE brand is first class in China, which technology is from America
2.Key parts and accessories are world class, which is different from other small factories.
3.Strict production flow, WONTONNE is an responsible China factory sales
Why choose us as reliable supplier or work as local dealer with us?
1. Experienced technical team, more professional service
WONTONNE is made up of a team of members who have years of experience with European forklift trucks and its
attachments. Supplier of key parts is the same with CASCADE, make usage and maintenance convenient.
2. Wide product range, custom design, provide total solution
WONTONNE has grown rapidly into a sizeable company specialized in producing a comprehensive range of hydraulic and mechanical attachments. The major categories of hydraulic attachments include rotating type, sliding arm type, side-shifting/hinged type, special purpose type and others.
3. Priority support, if agency/dealer
If you a local dealer, can achieve WONTONNE agent policy support, including fast delivery time, competitive
price and accessories support, ect.
4. Own factory, competitive price

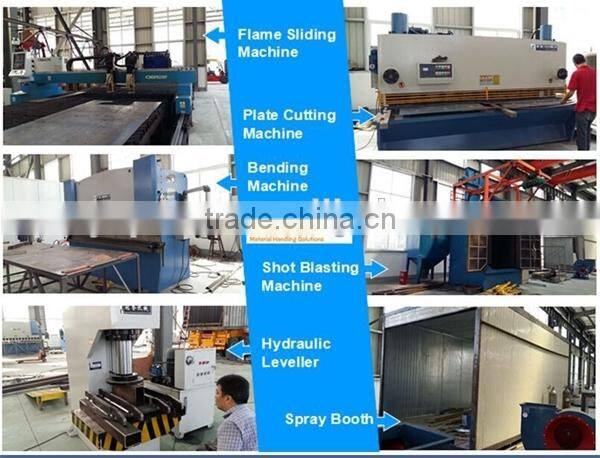

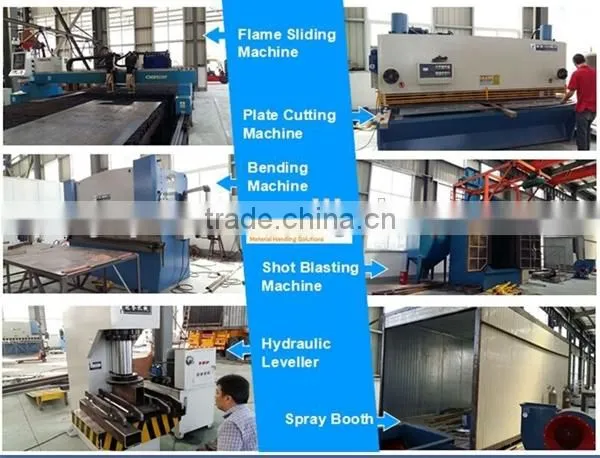

Our factory covers an area of 10,000 square meters, fully equipped with modern manufacturing equipments
and facilities. Scale production and no middlemen will save the purchasing cost.
5. Sales record and voice from our customer,which prove our good performance
