Hinged Fork for Forklift

Name: Hinged Fork for Forklift
Brand: WONTONNE
SKU: 112100913
Availability: InStock

US$ 500 - 900 MOQ: 1 Piece

Key Specifications

Brand Name:

WONTONNE

Model Number:

Hydraulic-Hinged Fork

Xiamen Wontonne Tech Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name WONTONNE

Model Number Hydraulic-Hinged Fork

Hinged Fork for Forklift

Product Description

1. Functions and Applications

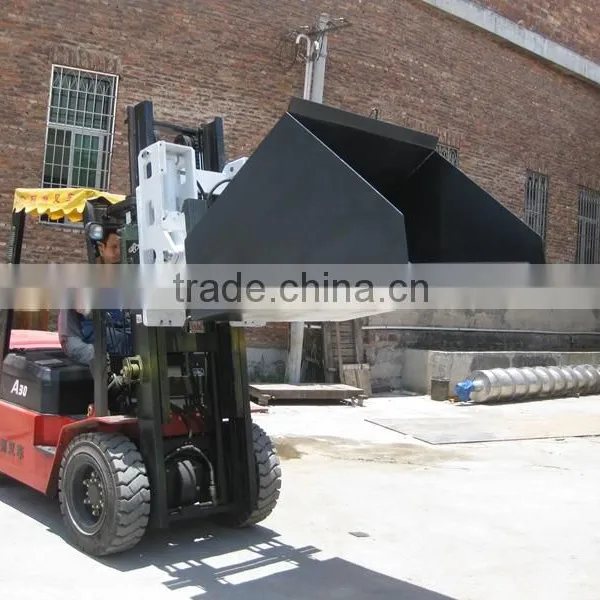

WONTONNE brand hinged fork is safe and efficient to dump bulk cargo container

Configurated with bucket to shovel all loosen goodds sunch as sand, coal, grain, fertilizer, soad and the

blocks, ect.

2. Features

-Proven durable construction design, unoverall framework adopts full steel structure, high strength,

can meet the needs of high strength work.

-Body hinger, using polymer composite bushing, hardness is twice as general copper sleeve!

Fully extended bushing life! Because of its self lubricating function without regular filling

grease can avoids rapid wear of the ilning sleeve for the pin shaft fracture failure.

-Good field of vision, safe and reliable

Capacity@ Load Center	Catalog Order No.	Fork	Carriage Width	Truck Mounting Class	Hinged Fork Mounting Class	Overall Height	Tilt Forward Tilt Backward	Weight	Effective Thickness	Horizontal Center of Gravity
(kg@mm)			(mm)			(mm)		(kg)	ET (mm)	CGH (mm)
2000@500	HFB20D-001A	no	1040	II	II	955	45°/25°	320	310	132
2500@500	HFB25D-002A	no	1040	II	II	955	45°/25°	320	390	132
3000@500	HFB30D-003A	no	1100	III	III	968	45°/25°	335	325	132
3500@500	HFB35D-002B	no	1100	III	III	1175	45°/25°	400	383	132
4000@500	HFB40D-003B	no	1100	III	III	1388	45°/25°	480	395	195
4500@500	HFB45D-004B	no	1450	III	III	1388	45°/25°	800	425	195
2200@500	FMS30D-008B	III	790-2600	400	1800	730	255	680	200	300
