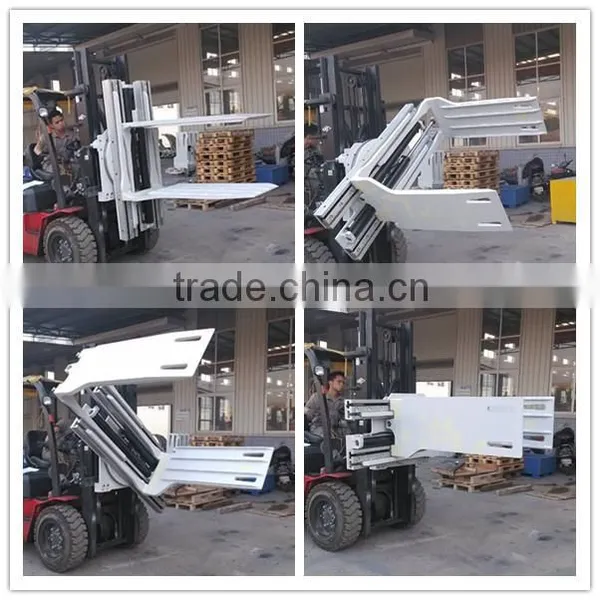

Bale clamp for 3 Ton Forklift Truck
1. Functions and Applications
This series of bale clamp is suitable for 3 ton fork lift truck,which is manufactured to efficiently handle cotton, wool, synthetictextiles, scrap steel and almost any other baled product without the need for pallets.
( eg: cotton, wool, waste paper, cloth).
2.Features
-The structure of T-bar arms ensure the high strength and low lost load; the aluminum frame is
light in weight andstrong enough, it's proved to be of reliability, durability.
-The unique check valve assy design as Cascade . Enable the design of two-cylinder to perform two hydraulic functions, i.e.,clamp,open and side shift right and left. Significantly simplify the whole structure. The regenerative circuit realize the quicker opening speed without changing the hydraulic input.
-The bolt-on assembly structure demonstrate ideal interchangeability of parts, and convenience in service, low cost.
- All bearings are made of engineering plastic material, selflubricant and reliable, easy for replacement.
- Arm base is of integral welding type, good in visibility, and reliable in structural rigidity, strength as well.
-The spherical pivot link of both cylinder shell head to lug and rod end to arm base ensure the straightness of the centerline of rod and even when the arms're opened to the end while loaded, which will cause the arms bent down. Resulting in prolonged service life.
|
Capacity / Load Center |
Catalog Order No. |
Mounting Class |
Opening Range |
Arm Height |
Arm Length |
Frame Width |
Arm Thickness |
Overall Height |
Vertical Center of Gravity |
Weight |
Effective Thickness |
Horizontal Center of Gravity |
| A | B | C | D | H | CGV | ET | HCG | |||||
| (kg@mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||
| 1400@500 | BCS15D-001A | II | 420-1570 | 415 | 990 | 940 | 70 | 645 | 220 | 415 | 127 | 315 |
| 1400@500 | BCS15D-002A | II | 420-1570 | 415 | 915 | 940 | 70 | 645 | 220 | 405 | 127 | 307 |
| 1900@500 | BCS20D-003A | II | 455-1735 | 415 | 685 | 1040 | 70 | 665 | 220 | 350 | 127 | 203 |
| 1900@500 | BCS20D-004A | II | 455-1735 | 415 | 785 | 1040 | 70 | 665 | 220 | 377 | 127 | 239 |
| 1900@500 | BCS20D-005A | II | 450-1730 | 415 | 915 | 1040 | 70 | 665 | 220 | 418 | 127 | 307 |
| 1900@500 | BCS20D-006A | II | 450-1730 | 415 | 991 | 1040 | 70 | 665 | 220 | 422 | 127 | 315 |
| 1900@500 | BCS20D-007A | II | 450-1730 | 415 | 1194 | 1040 | 70 | 665 | 220 | 465 | 127 | 401 |
| 2700@500 | BCS30D-008A | II | 550-1900 | 460 | 991 | 1015 | 75 | 730 | 255 | 556 | 412 | 315 |
| 2700@500 | BCS30D-008B | III | 550-1900 | 460 | 991 | 1015 | 75 | 730 | 255 | 579 | 450 | 312 |
| 2700@500 | BCS30D-009A | II | 545-1890 | 460 | 1194 | 1015 | 75 | 730 | 255 | 624 | 142 | 396 |
| 2700@500 | BCS30D-009B | III | 545-1890 | 460 | 1194 | 1015 | 75 | 730 | 255 | 640 | 150 | 391 |
| 2700@500 | BCS30D-010A | II | 550-1900 | 460 | 915 | 1015 | 75 | 730 | 255 | 538 | 142 | 307 |
| 2700@500 | BCS30D-010B | III | 550-1900 | 460 | 915 | 1015 | 75 | 730 | 255 | 538 | 150 | 305 |
| 2200@500 | BCS30D-011B | III | 490-2300 | 460 | 990 | 1600 | 75 | 730 | 255 | 710 | 150 | 240 |
| 2200@500 | BCS30D-012B | III | 490-2300 | 460 | 1195 | 1600 | 75 | 730 | 255 | 730 | 150 | 240 |
3.Options
Custom opening ranges
Custom arm sizes
Custom arm ribbing
Various mounting classes available
Load backrests
4.Packages
