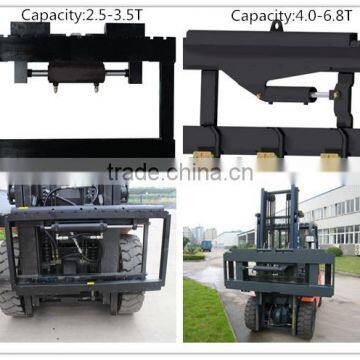

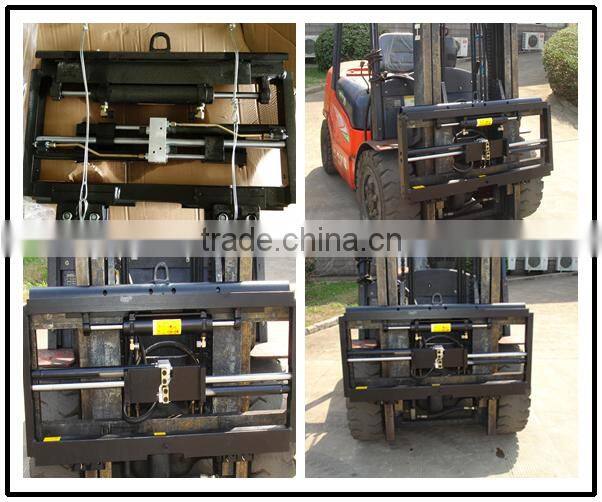

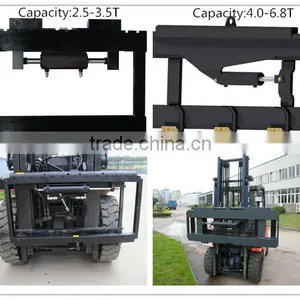

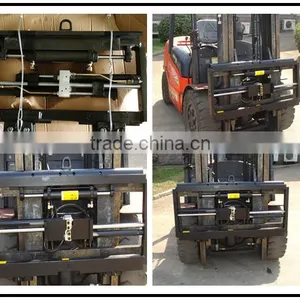

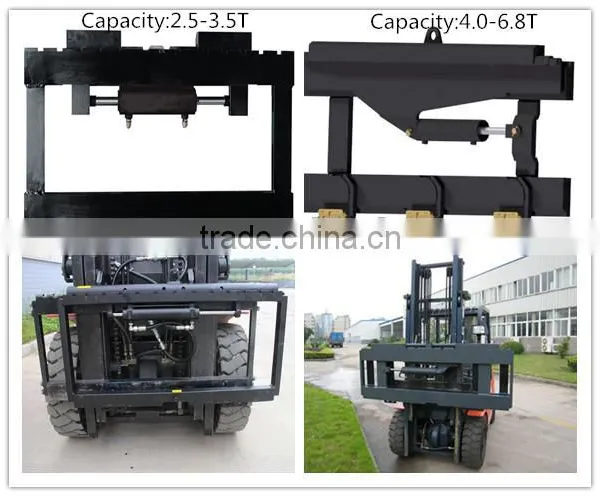

Forklift Fork Positioner
1. Function And Applications
Forklift fork positioner is pplicable to the material distribution, warehousing and manufacturing industries,
make the forklift driver accurately adjust the spacing of the forks with good and wide vision.
2. Features
-The lateral oil cylinder piston rod, the integral structure is simple, easy processing, maintenance.
Controllable pitch oil cylinder is equipped with the throttle valve, adjustable pallet fork adjust speed,
sealers adopt NOK series of products, quality is reliable.
-Mechanical performance: fork USES the fine steel, is not easy to damage, by supporting bod
coupling, compact structure, light weight, easy installation and pallet fork closed time distance is
smaller.

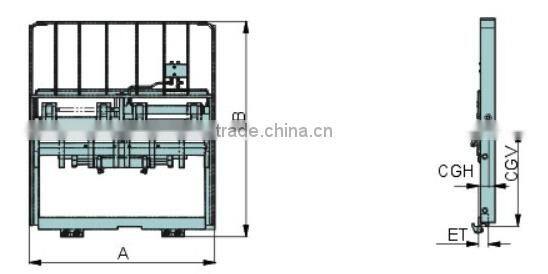

| Capacity@ | Catalog |
Adjust range of the forks |
Min width of the bar carriage |
Suitable fork width |
Fork width |
Weight | Effective |
Vertical center of gravity |
Horizontal |
| Load Center | Order No. | Thickness | Center of | ||||||
| Gravity | |||||||||
| (kg/mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ET(mm) | CGV(mm) | CGH(mm) | |
| 1800@500 | FP18G-A2 | 28-860 | 895 | 970 | 100 | 72 | 62 | 218 | 31 |
| 2500@500 | FP25G-A4 | 28-930 | 895 | 1040 | 100 | 78 | 62 | 218 | 31 |
| 3000@500 | FP30G-B3 | 28-990 | 970 | 1100 | 125 | 90 | 68 | 275 | 31 |
1.WONTONNE brand is first class in China, which technology origin is America.
2.Key parts and accessories are world class, which is different from other small factories.
3.Strict production flow, expand production scale,keep inventory,shorten delivery time.
