Forklift Side Shifter

Forklift Side Shifter thumbnail-1
Forklift Side Shifter photo-1
US$ 200 - 1,300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
WONTONNE
Model Number:
Hydraulic-Sideshifter
Contact Supplier Request Quote Chat Now
Xiamen Wontonne Tech Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WONTONNE
Model Number Hydraulic-Sideshifter



Forklift Side Shifter



Product Description

1. Functions and Applications

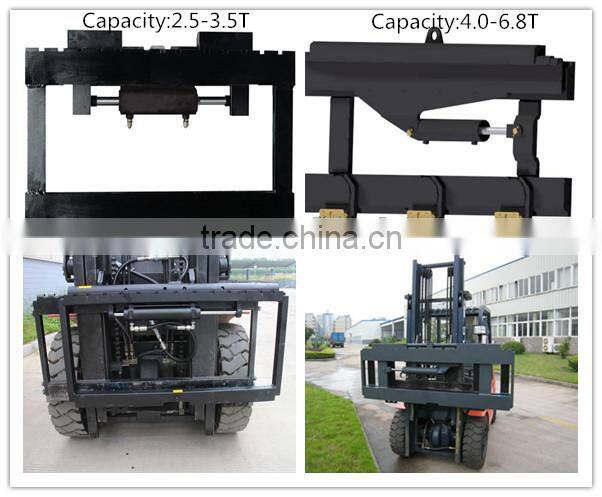

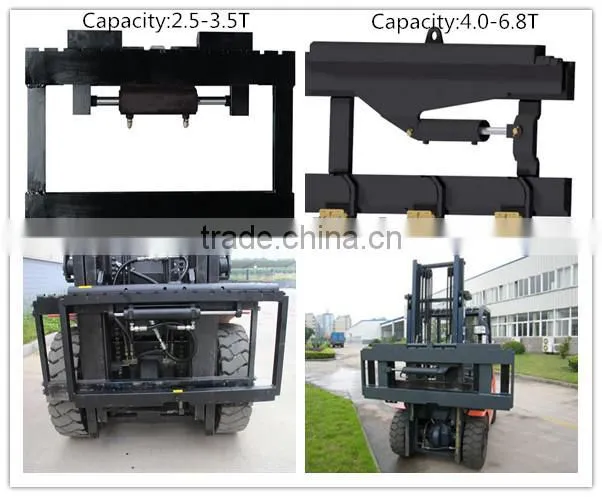

WONTONNE forklift side shifter is the most common attachment installed in forklift, allowing

side shifting of 100mm both goods, thus greatly improves the flexibility and moving efficiency of

 the forklift. It is suitable for various occasions using for moving and stacking.



 Forklift Side Shifter



2. Features



-Integrate cylinder and sideshifter frame into a component, saving room and widening the view.

-Easy installed, directly connected to fork carriage.

-Double-headed rod cylinder, keep the same thrust force and speed on both sides of cylinders.

- The lower bearings used wear-resistant nylon-material to ensure smoothly move.

 -Highly efficiency, easy maintenance and operation.



Specification of forklift side shifter with 2.5-6.8T

Capaticy@ New Mounting Minimum Carriage Vertical Weight Effective Horizontal
Load Center Catalog Class Truck Width Center of   Thickness Center of
  Order No.   Carriage   Gravity     Gravity
      Width   VCG   ET CGH
(kg/mm)     (mm) W(mm) (mm) (kg) (mm) (mm)
2500@600 CYQ25F-B001-920 II 895 920 226 49 62 27
2500@600 CYQ25F-B001-970 II 895 970 226 50.5 62 27
2500@600 CYQ25F-B001-1020 II 895 1020 226 52 62 27
2500@600 CYQ25F-B001-1040 II 895 1040 226 53 62 27
2500@600 CYQ25F-B001-1070 II 1040 1070 226 54 62 27
2500@600 CYQ25F-B001-1100 II 1040 1100 226 55 62 27
2500@600 CYQ25F-B001-1200 II 1040 1200 226 58 62 27
2500@600 CYQ25F-B002-920 II 895 920 226 50 62 27
2500@600 CYQ25F-B002-970 II 895 970 226 21.5 62 27
2500@600 CYQ25F-B002-1020 II 895 1020 226 53 62 27
2500@600 CYQ25F-B002-1040 II 895 1040 226 54 62 27
2500@600 CYQ25F-B002-1070 II 1040 1070 226 55 62 27
2500@600 CYQ25F-B002-1100 II 1040 1100 226 56 62 27
2500@600 CYQ25F-B002-1200 II 1040 1200 226 59 62 27
3500@600 CYQ35F-C001-1070 III 935 1070 293 66 64 29
3500@600 CYQ35F-C001-1100 III 935 1100 293 67 64 29
3500@600 CYQ35F-C001-1115 III 1035 1115 293 68 64 29
3500@600 CYQ35F-C001-1150 III 1035 1150 293 69.5 64 29
3500@600 CYQ35F-C001-1200 III 1035 1200 293 71 64 29
3500@600 CYQ35F-C001-1245 III 1035 1245 293 73 64 29
3500@600 CYQ35F-C001-1300 III 1035 1300 293 74.5 64 29
3500@600 CYQ35F-C001-1350 III 1035 1350 293 77 64 29
3500@600 CYQ35F-C002-1070 III 935 1070 293 69 64 29
3500@600 CYQ35F-C002-1100 III 935 1100 293 70 64 29
3500@600 CYQ35F-C002-1115 III 1035 1115 293 71 64 29
3500@600 CYQ35F-C002-1150 III 1035 1150 293 72.5 64 29
3500@600 CYQ35F-C002-1200 III 1035 1200 293 74 64 29
3500@600 CYQ35F-C002-1245 III 1035 1245 293 76 64 29
3500@600 CYQ35F-C002-1300 III 1035 1300 293 77.5 64 29
3500@600 CYQ35F-C002-1350 III 1035 1350 293 80 64 29
4000@600 SSS40D-001B-1000 III 895 1000 392 140 66 33
4000@600 SSS40D-001B-1100 III 965 1100 392 150 66 33
4000@600 SSS40D-001B-1150 III 965 1150 392 155 66 33
4000@600 SSS40D-001B-1200 III 1016 1200 392 166 66 33
4000@600 SSS40D-001B-1250 III 1170 1250 392 200 66 33
4000@600 SSS40D-001B-1330 III 1210 1330 392 210 66 33
6800@600 SSS40D-001C-1532 IV 1220 1532 440 275 84 43
6800@600 SSS70D-001C-2400 IV 1220 2400 440 275 84 43
6800@600 SSS70D-001C-1840 IV 1525 1844 440 330 84 43
6800@600 SSS70D-001C-1700 IV 1525 1700 440 300 84 43
6800@600 SSS70D-001C-1330 IV 1220 1330 440 240 84 43
6800@600 SSS70D-001C-1670 IV 1372 1670 440 240 440 240



 3.Packages

Forklift Side Shifter
