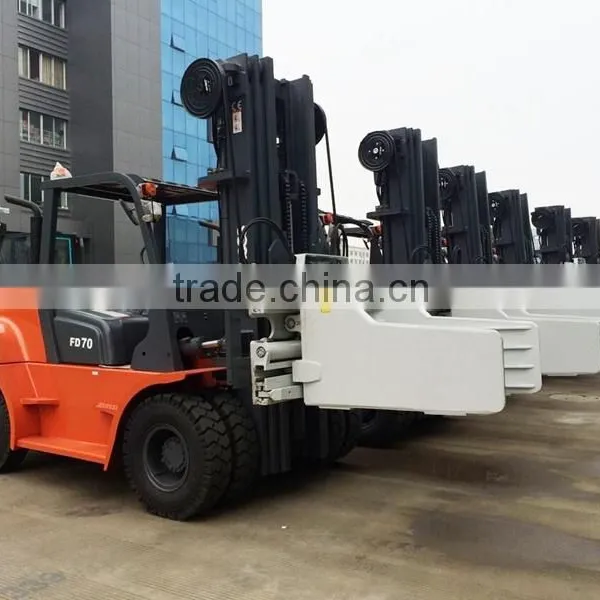

Bale Clamp

Name: Bale Clamp
Brand: WONTONNE
SKU: 112100179
Availability: InStock

US$ 4,000 - 7,000 MOQ: 1 Piece

Key Specifications

Brand Name:

WONTONNE

Model Number:

Hydraulic-Bale Clamp

Xiamen Wontonne Tech Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name WONTONNE

Model Number Hydraulic-Bale Clamp

Bale Clamp

Product Description

1. Functions and Applications

Bale clamp efficiently and economically handle nearly any type of baled products including cotton, wool,

synthetic, textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales.High efficiency and

economy to handle in without work platform condition.

2. Features

-Proven durable T-beam arm aluminum frame construction

-Superior arm-slide bearing for extended service life

-Ribs provide secure grip and give driver good tip handling and spinning capabilities.

-Regenerative hydraulic valving for optimal arm speed

-Excellent driver visibility

Capacity / Load Center	Catalog Order No.	Mounting Class	Opening Range	Arm Height	Arm Length	Frame Width	Arm Thickness	Overall Height	Vertical Center of Gravity	Weight	Effective Thickness	Horizontal Center of Gravity
Capacity / Load Center			Opening Range	A	B	C	D	H	CGV	Weight	ET	HCG
(kg@mm)			(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	(mm)	(mm)
1400@500	BCS15D-001A	II	420-1570	415	990	940	70	645	220	415	127	315
1400@500	BCS15D-002A	II	420-1570	415	915	940	70	645	220	405	127	307
1900@500	BCS20D-003A	II	455-1735	415	685	1040	70	665	220	350	127	203
1900@500	BCS20D-004A	II	455-1735	415	785	1040	70	665	220	377	127	239
1900@500	BCS20D-005A	II	450-1730	415	915	1040	70	665	220	418	127	307
1900@500	BCS20D-006A	II	450-1730	415	991	1040	70	665	220	422	127	315
1900@500	BCS20D-007A	II	450-1730	415	1194	1040	70	665	220	465	127	401
2700@500	BCS30D-008A	II	550-1900	460	991	1015	75	730	255	556	412	315
2700@500	BCS30D-008B	III	550-1900	460	991	1015	75	730	255	579	450	312
2700@500	BCS30D-009A	II	545-1890	460	1194	1015	75	730	255	624	142	396
2700@500	BCS30D-009B	III	545-1890	460	1194	1015	75	730	255	640	150	391
2700@500	BCS30D-010A	II	550-1900	460	915	1015	75	730	255	538	142	307
2700@500	BCS30D-010B	III	550-1900	460	915	1015	75	730	255	538	150	305
2200@500	BCS30D-011B	III	490-2300	460	990	1600	75	730	255	710	150	240
2200@500	BCS30D-012B	III	490-2300	460	1195	1600	75	730	255	730	150	240
