CE Certification Rubber Sheet Batch-off Cooling Machine
- Qingdao
- T/T
You May Like
-
Advanced Technology Lab Two Roll Rubber Mixing Mill Laboratory Rubber Mixer
-
Advanced Technology Lab Rubber Kneader Machine Laboratory Rubber Internal Mixer Machine
-
Most Accurate Lab Rubber Vulcanizing Press Machine Lab Hot Press Machine
-
Most Accurate Lab Rubber Vulcanizing Press Machine Lab Rubber Vulcanizer Lab Rubber Mold Machine
-
Germany Technology Lab Two Roll Rubber Mixing Mill
-
Lodz University Used Lab Rubber Calender
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HuaTuo | Model Number | XPG-800 | |
| Voltage | 380V , or according to customer | Power(W) | 90kw | |
| Dimension(L*W*H) | 8000x1000x1500 | Weight | 20 tons | |
| Certification | CE,SGS ISO9001:2008, CE ,SGS ,ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

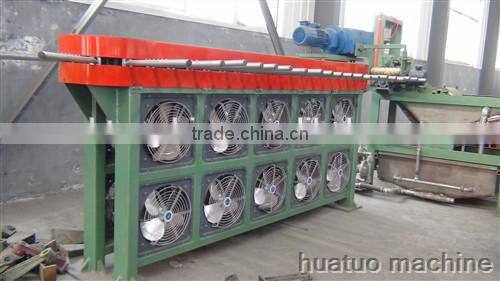

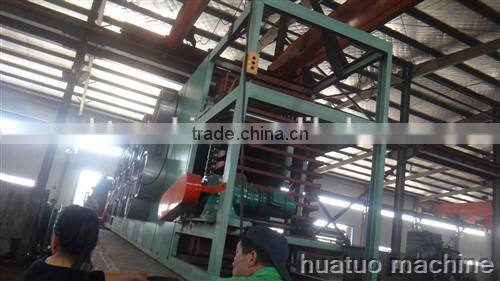

CE certification Rubber Sheet batch-off cooling machine
a. Batch-off Cooling Machine
Usage
Applying separating agent to those rubber sheets extruded by sheeter (open mixing mill or roller-head extruder)adopting plasticated rubber or mixed rubber,then cooling,cutting rubber sheets for the purpose of next work procedure.
Function&feature
1,large separating agent soaking comparatment can implement circulating cooling for water,hence result in obvious cooling effects on rubber sheets.
2,the linear speed of rubber sheet conveyer belt adopts frequency conversion stepless speed regulation,which can satisfy the output speed requirements of different sheeters.
3,the loop chain speed of the cooling stepless speed regulation,which can satisfy the output speed requirements of different sheeters.

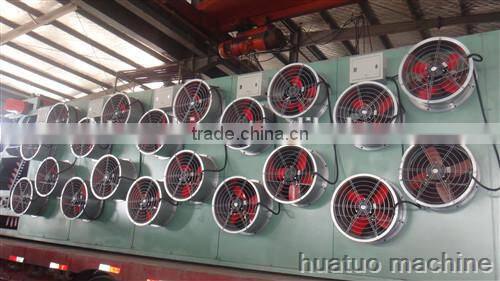

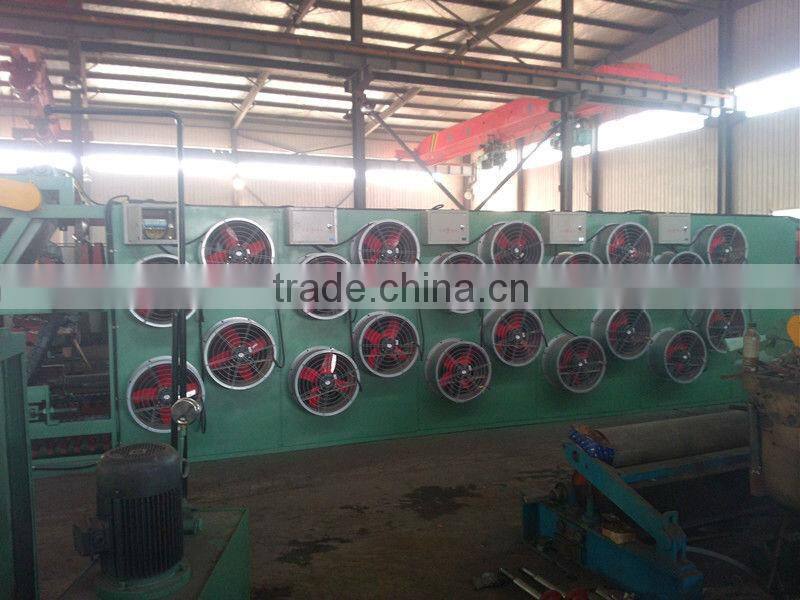

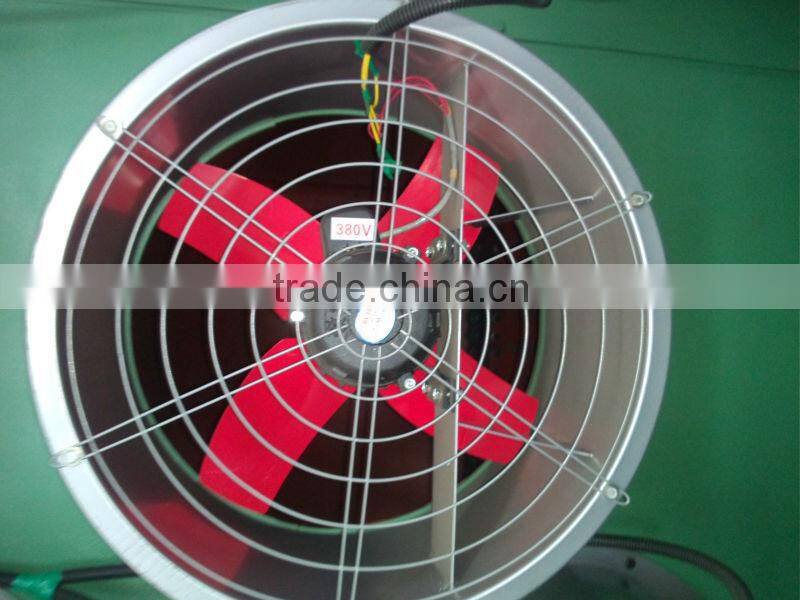

4,the cooling part is equipped with 8-18 fans that start group by group and have good cooling effects.
5,this machine not only can cut sheets and laminate sheets,but also can continuously places sheets and laminate sheets
6,this machine daopts frequency conversation speed regulation technology,so it is easy to operate and free from maintenance.
7,this machine adopts frequency conversation speed regulation technology,so it is easy to operate and free from maintenance
8,the flexible design system can satisfy customers’ special design requirements within the shortest time.
Specification | XKP-600 | XKP-800 |
Width of pegged plastic rod(mm) | 720 | 920 |
Maximum length of suspension film(mm) | 1500 | 1500 |
The largest plastic peg volume(kg) | 1300 | 1500 |
Effective width of pegged plastic rod(mm) | 600 | 800 |
Film thickness(mm) | 6-12 | 6-12 |
Film initial temperature(°C) | 90-120 | 90-120 |
Pegged plastic temperature(°C) | 60-70 | 60-70 |
Drop temperature | <Room temperature+40 | |
Release agent temperature | 20-40 | 20-40 |
Total motor power(approx)(kw) | 13 | 13 |
Gas source pressure(Mpa) | 0.6-0.8 | 0.6-0.8 |
Dimensions(m) | 11×2×3.3 | 11×2×3.3 |
Weight(approx)(Kg) | 7000 | 7000 |
