Advanced Technology Reclaimed Rubber Making Machine
1. GENERAL INTRODUCTION:
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.

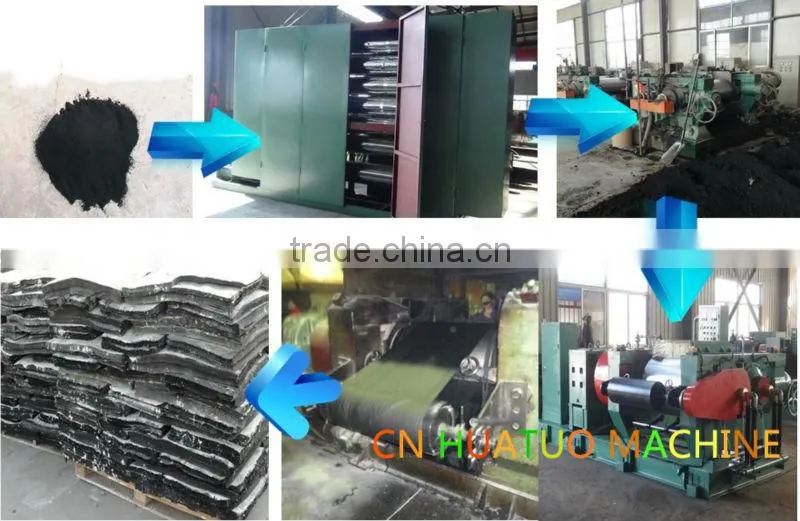

The whole process of reclaimed rubber sheet includes two parts, first part is from Waste Tyres to Rubber Powder, Second Part is from Rubber Powder to Reclaimed Rubber Sheet,detailed introduction as follows:

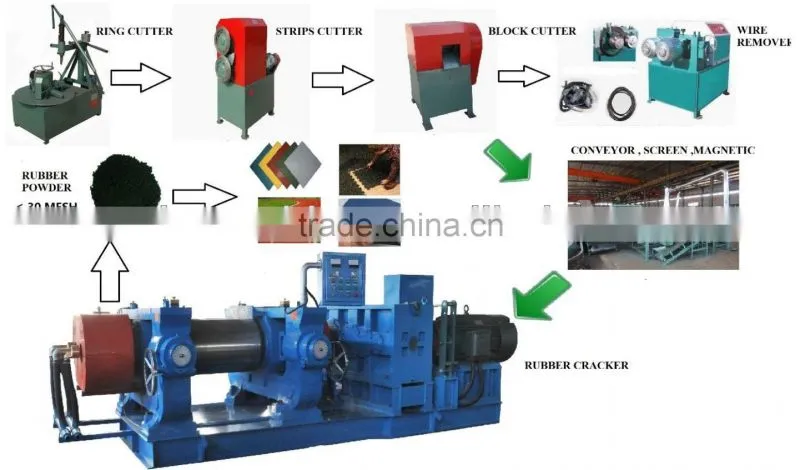

PART ONE: USED TYRE OR RUBBER TO RUBBER POWDER
including two types, one is Semi-automatic type, the other is Automatic type,but the most important machine of both types is the Rubber Cracker

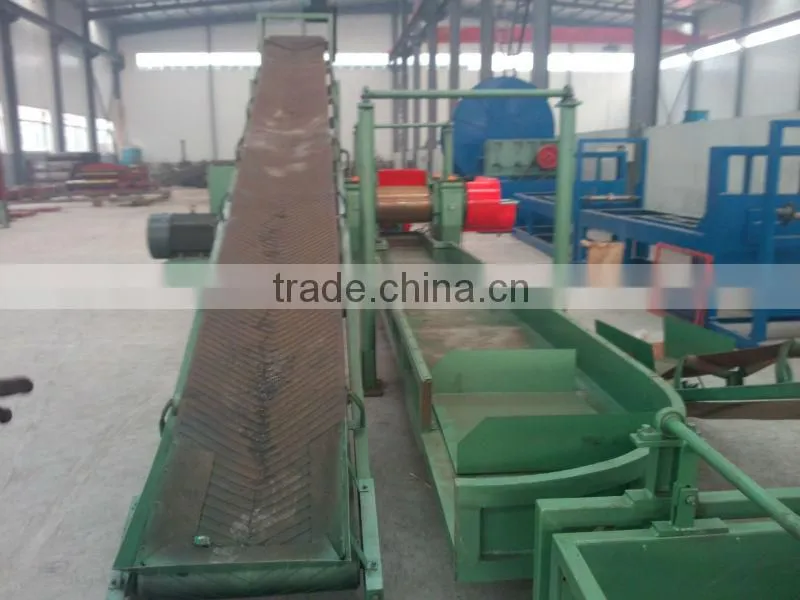

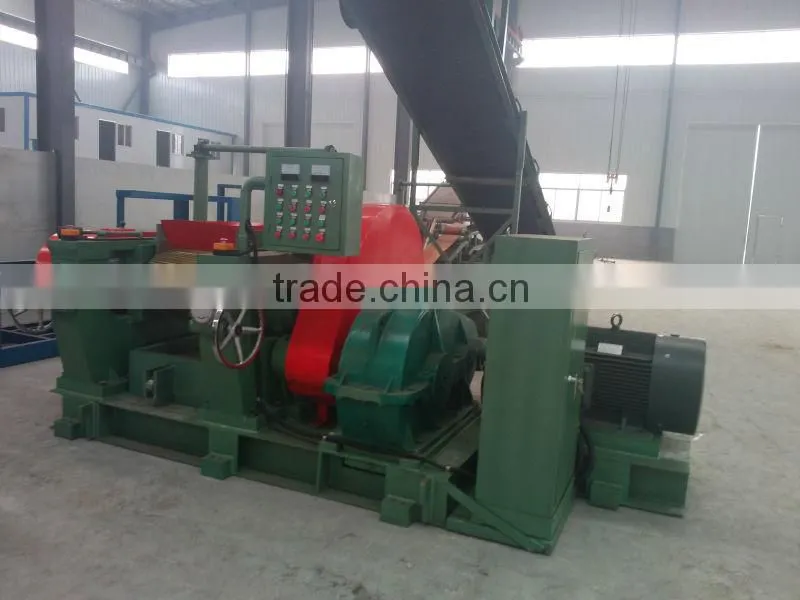

Waste Tyre Recyling Roll Rubber Crusher mill(XKP-560)
Model |
XKP-400 |
XKP-450 |
XKP-560
|
The front roller diameter (mm) |
400 |
450 |
560 |
After the roller diameter (mm) |
400 |
450 |
510 |
Roller working length (mm) |
600 |
650 |
800 |
Velocity of front roller (m/min) |
18.36 |
24.5 |
25.6 |
Roll ratio |
1:1.27 |
1:1.27 |
1:1.3 |
The largest roller spacing (mm) |
6 |
8 |
15 |
Production capacity (kg/h) |
200-400 |
200-600 |
600-2000 |
Motor power (kw) |
37 |
55 |
75/ 90 or 110KW |
Dimensions:length*width*height(mm) |
3320×1900×1850 |
4650×2000×1550 |
4750×2300×2000 |
Product weight (kg) |
7000 |
11000 |
19500 |

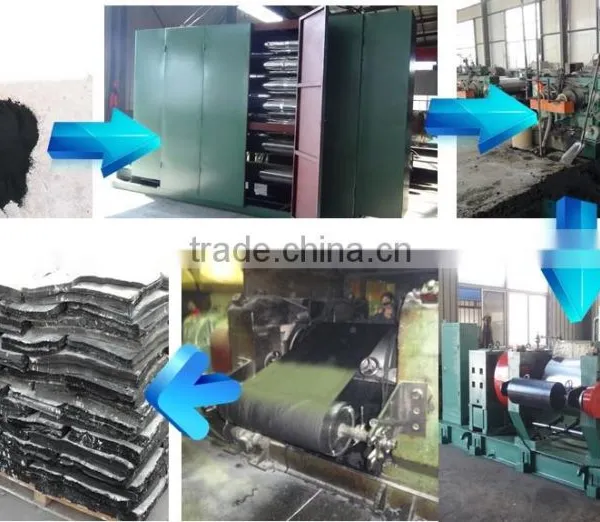

PART TWO: RUBBER POWDER TO MAKE RECLAIMED RUBBER SHEET
Machines needed: devulcanizer-----Rubber Mixing Mill-----Rubber Refiner Mill

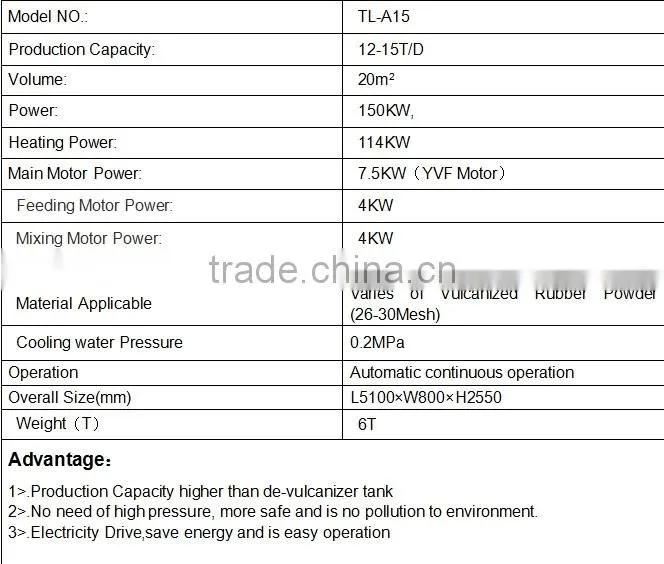

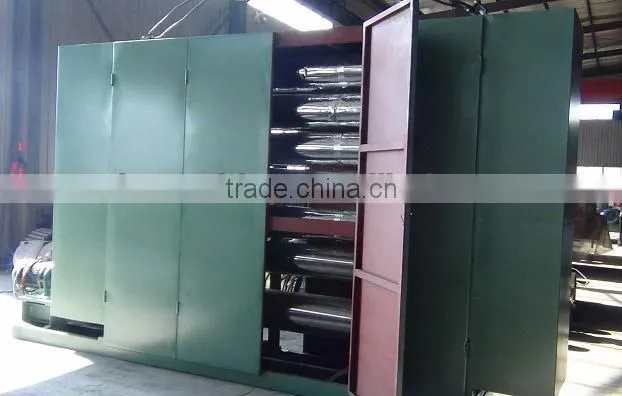

STEP ONE: Rubber De-vulcanizer
New tochnology, less pollutation to the enviroment.

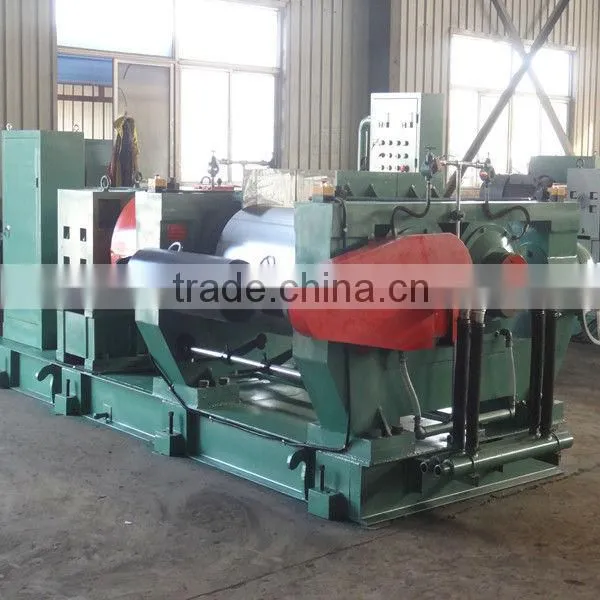

STEP TWO: RUBBER MIXING MILL----- XKN 450*2
Used for Kneading and refining for reclaimed rubber
Version & Parameters |
XKN-450 |
Roll diameter (mm) |
450 |
Roller working surface(mm) |
1000 |
Front roll surface speed(m/min) |
28.6 |
Rear roll surface speed(m/min) |
56 |
Front and back roll of Friction ratio |
1:1.96(according to your need) |
Max nip(mm) |
15 |
Feeding capacity per hour (kg) |
50 kg/per batch |
The main motor model and Power (kw) |
Model: Y280-6 Power:55 |
Reducer model/ratio |
ZSYF315-28 |
Bearing |
23052CK/3WW |
Lubricating mode |
Thin oil lubrication |
Rotate mode |
Motor / reducer direct-coupled |
Size(l/w/h) |
5200*2380*1770 |
Weight(kg) |
11000 |
|
Use:Used for Kneading and refining for reclaimed rubber
| |
STEP THREE: RUBBER REFINER MILL XKJ-480
Version & Parameters |
XKJ-480/612ZG-B |
Roll diameter*Roll length (mm) |
Front roll 480×800 Back roll :612×800 |
Roll effective working surface(mm) |
800 |
Front roll surface speed(m/min) |
32.82 |
Back roll surface speed(m/min) |
59.78 |
Front/back roll Friction ratio |
1:1.82 |
Max Nip: |
15mm |
Main motor model /Power(KW) |
Y280-6 /55 |
Harden Reducer model/ratio |
ZSYF355-31.5 |
Bearing |
Roller bearing bush |
Lubricating mode |
Automatic Thin oil lubrication |
Rotate mode |
Motor/reducer direct-coupled |
Roller temperature adjusting device |
Copper rotary joint |
Scraper device |
the regulating screw rod with hand wheel |
Overall size(mm) |
L4850*W2200*H1950 |
Weight (KG) |
15000 |
Qingdao HuaTuo Machinery Co., Ltd. is one of the important backbone enterprises in rubber machinery industry in China and is the member of Shandong machinery union company
The main products are plate vulcanizing presses, open rubber mixing mills, Banbury intensive kneaders, extruders and rubber and reclaimed rubber machinery.
SINCERELY LOOK FORWARD TO YOUR CONTACT
