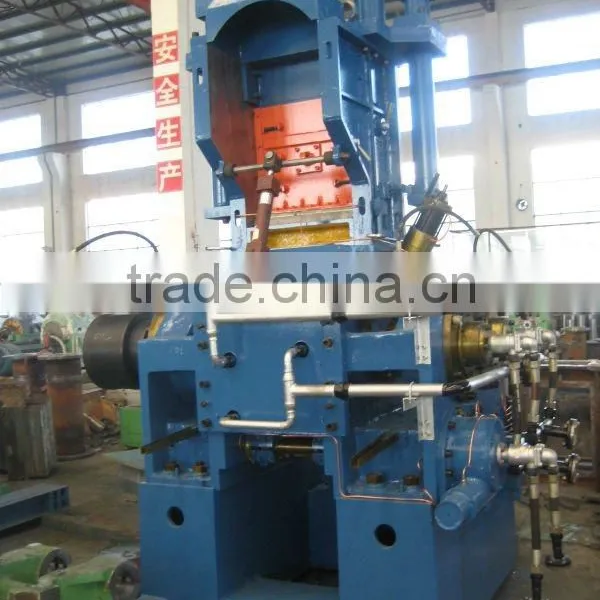

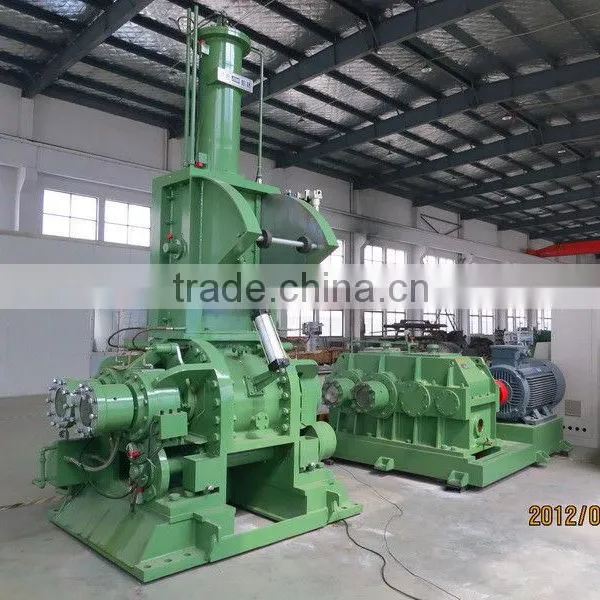

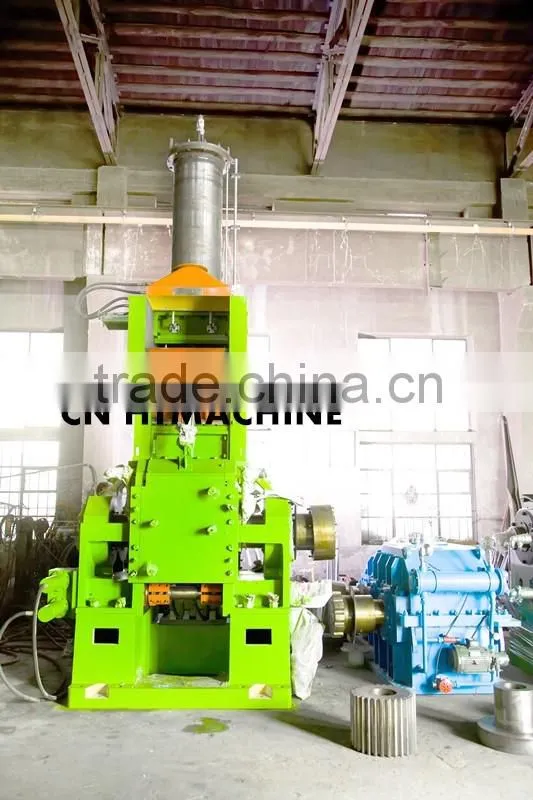

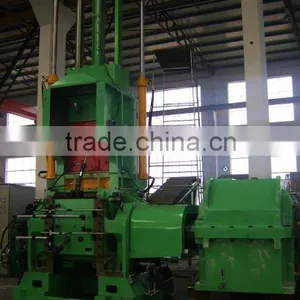

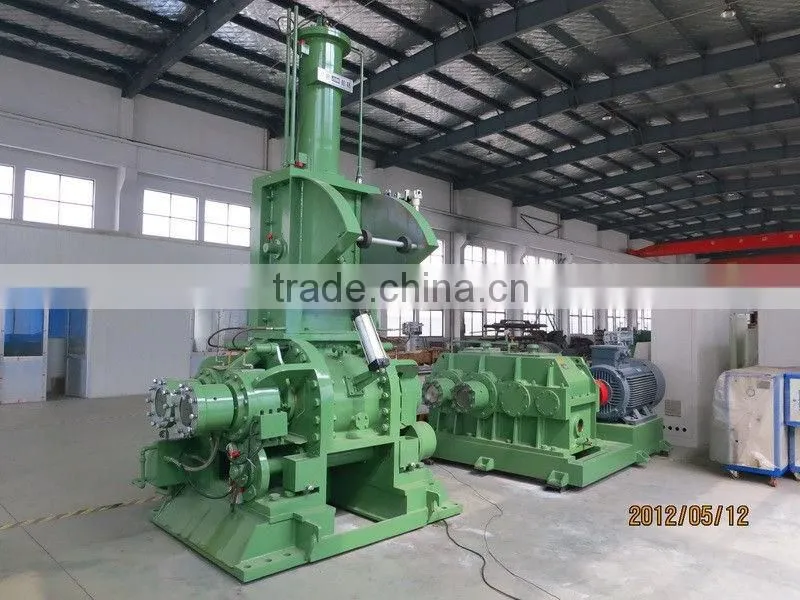

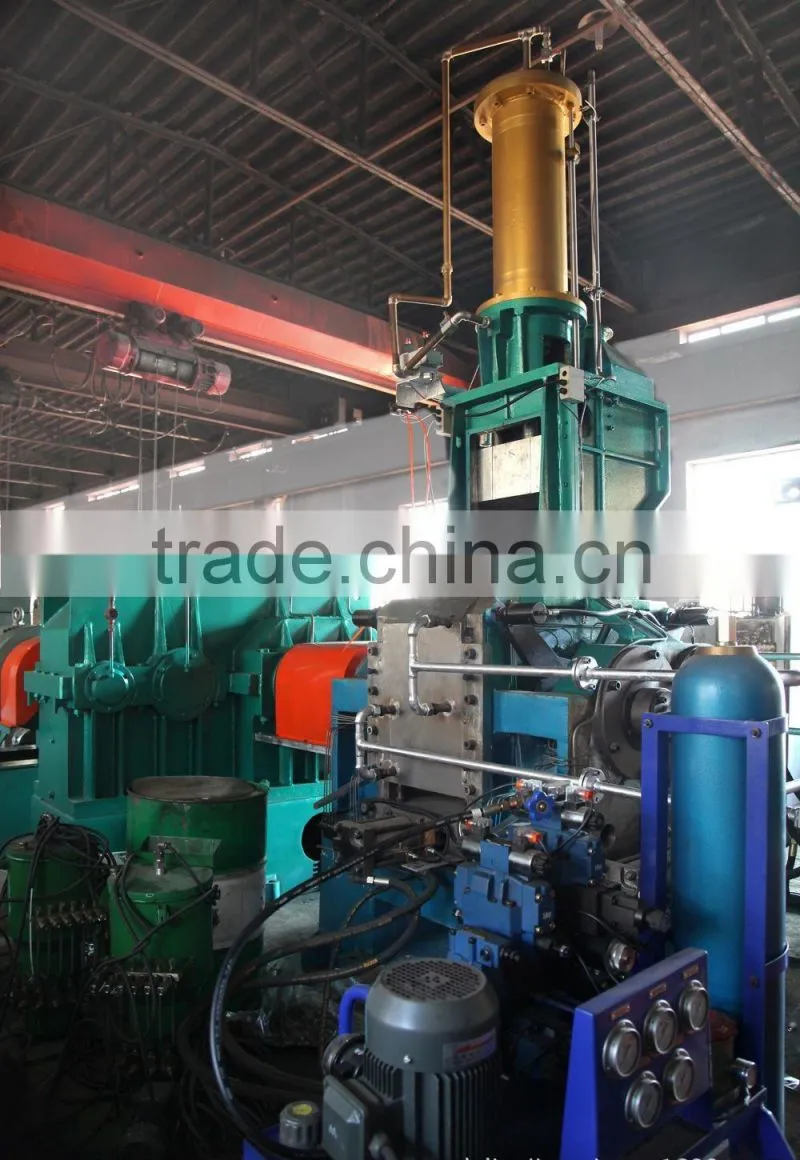

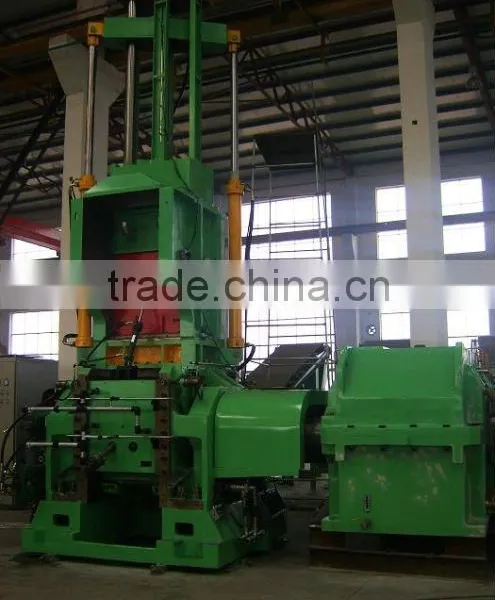

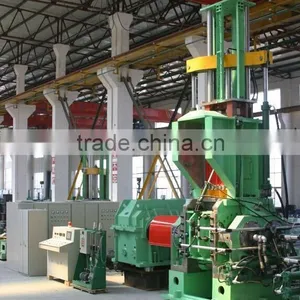

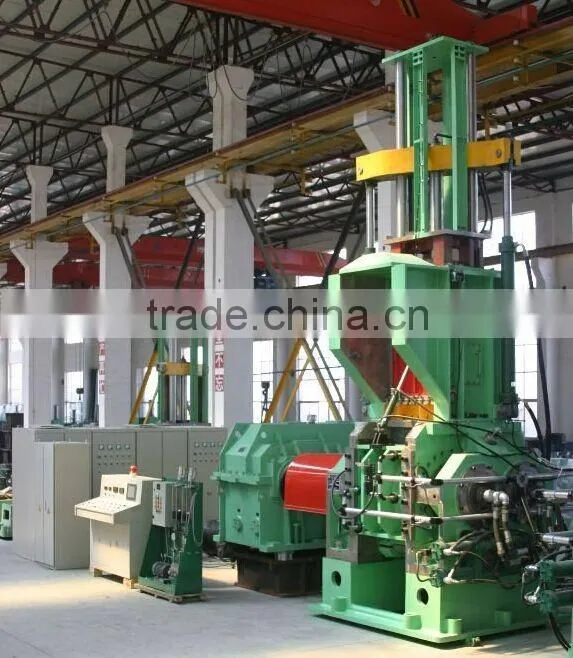

Reclaimed Rubber Line/Drop Door Rubber Banbury Mixer
- 50 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Rubber Kneader | Place of Origin: | Shandong, China |
Brand Name: | CN Huatuo | Model Number: | XSM50*40-XSM-160*40 | Voltage: | 380V,220V, 440V,110V,120V,240V |
Power(W): | 95KW to 450DC | Dimension(L*W*H): | model varies | Weight: | 14-32Tons |
Certification: | CE and ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
Rubber Banbury Mixer Mill 1. Inside of mixing chamber, drop door and float weight are designed with perimeter drilling type to be cooling (for the rubber) or heating (for the plastics).
Rotor is bored sprinkling type for cooling (for the rubber) or heating (for the plastics) which lead to the best effect.
3. Rotors are equipped with rolling bearing to ascertain power economization and longer service life
4. The hydraulic balance type (except 50L) of shaft seal in the rotor is adopted, specific pressure is consisent on the four sealing faces.
The sealing effect is reliable,reaching both sealing and minimizing the wearing rate for the sealing ring.
5. Hydraulic driven drop door and locking device are adopted with plug board to maintain reliable sealing and quick opening and closing.
6. The imported advanced PLC controller with “automatic” and “manual” operations is adopted in the electric system.
Model | X(S)M-50 ´ 40 | X(S)M-80 ´ 40 | X(S)M-120 ´ 40 | X(S)M-160 ´ 40 | |
Total Volume of mixing chamber | L | 5 | 80 | 120 | 160 |
Working capacity of mixing chamber | L | 30 | 60 | 90 | 120 |
Rotating speed of rear rotor | r/min | 40 | 40 | 40 | 40 |
Sped ratio of rotor | 1:1.172 | 1:1.143 | 1:1.15 | 1:1.16 | |
Pressure of compressed air | MPa | 0.6 ~ 0.8 | 0.6 ~ 0.8 | 0.6 ~ 0.8 | 0.6 ~ 0.8 |
Compressed air consume | m3/h | 20 | 30 | 60 | 80 |
Pressure of cooling water | MPa | 0.3 ~ 0.4 | 0.3 ~ 0.4 | 0.3 ~ 0.4 | 0.3 ~ 0.4 |
Cooling water consume | m3/h | 7 ~ 10 | 25 | 27 ~ 45 | 35 ~ 50 |
Steam pressure | MPa | £0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 | 0.5 ~ 0.8 |
Steam consume | m3/h | 200 | 300 | 720 | 900 |
Power of driven motor | kw | 95 | 210 | 280 | 450 DC |
Overall dimension | mm | 5600 ´ 2700 ´3300 | 5930 ´ 2620 ´ 3900 | 7400 ´ 3100 ´ 4230 | 6620 ´ 2640 ´ 4300 |
Weight | t | 14 | 24 | 28 | 32 |
