High Precision In Mould Label Rubber Plastic Film Label Die Cutting Machine

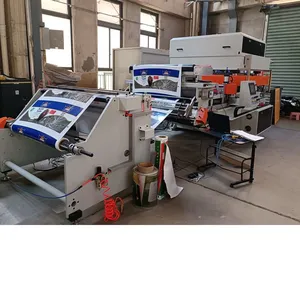

High Precision In Mould Label Rubber Plastic Film Label Die Cutting Machine photo-1

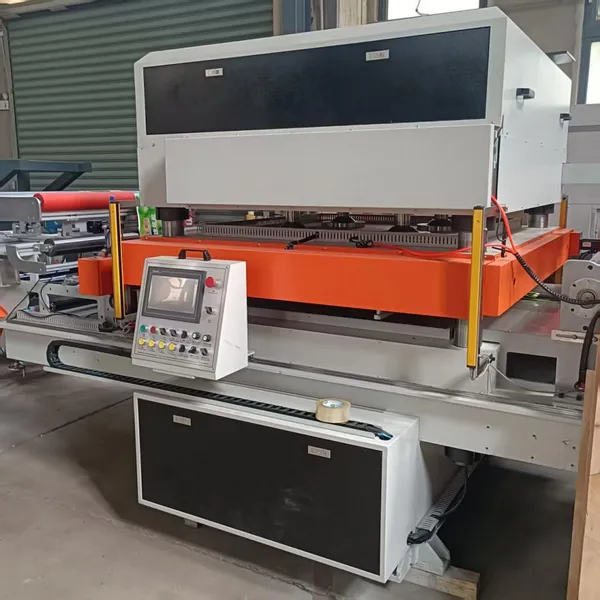

High Precision In Mould Label Rubber Plastic Film Label Die Cutting Machine photo-2

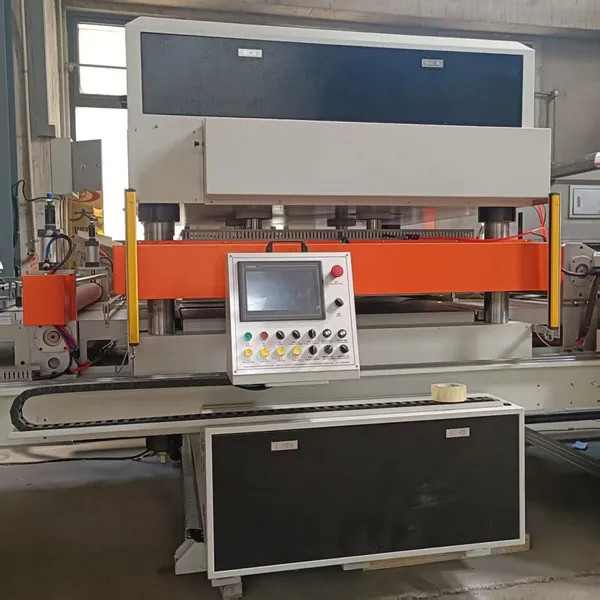

High Precision In Mould Label Rubber Plastic Film Label Die Cutting Machine photo-3

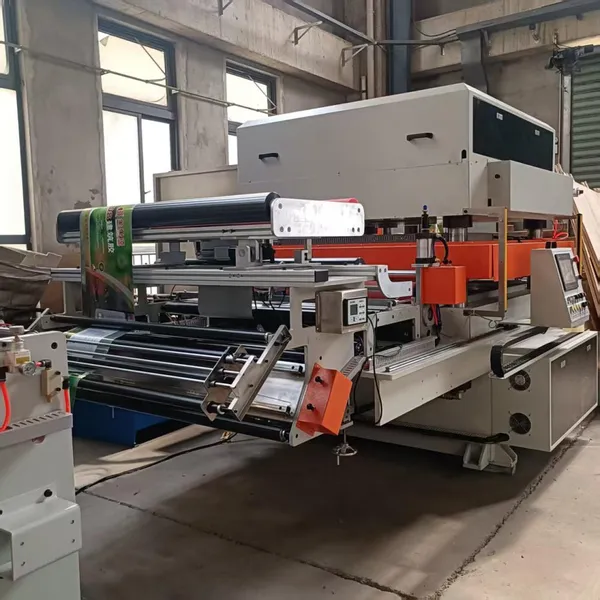

High Precision In Mould Label Rubber Plastic Film Label Die Cutting Machine photo-4
US$ 70000 1 - 8 Set
US$ 50000 ≥9 Set
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
offered
Structure:
Other, flatbed die cutting machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Certification CE
Warranty offered
Structure Other, flatbed die cutting machine
Automatic Grade Automatic
After-sales Service offered
Customized Customized
Condition New
1, Technical Date :

Die cutting area1200*1200mm          Stroke100mm

Max cutting pressure30T (adjustable  table height 800mm

Stroke adjustment tolerance :±0.01m/m

Cutting speed  :about 20  times/minute (reference to pulling length)

  Configuration list

 Pulling material Servo  Motor         1set          SIEMENS

 Automatic pressure adjustment motor   1 set         INOVANCE

PLC                                    1 set         SIEMENS

Touch Screen                           1 set          MCGS

Security grating                       2 sets    Taiwan

Mark tracking sensor                   1 set  Panosonic

Mark tracking sensor move structure    1 set   Dapeng Machinery Own

Main machine Servo Motor               1 set     Inovance China

 ----------------

Infeed (unwinding) structure   1 set  working width 1200mm air-shaft  Infeed (unwinding) motor       1set    ZAGA Shanghai

Magnetic powder clutch          2 set    Shengda China

Magnetic Powder brake           2 set     Shengda China

 Forward/Reverse Switch   1 batch

Motor Frequency converter          1 set  Mitsubishi Janpan

Rewinding  shaft for waste rewinding

Rewinding motor and magnetic powder clutch  1 set

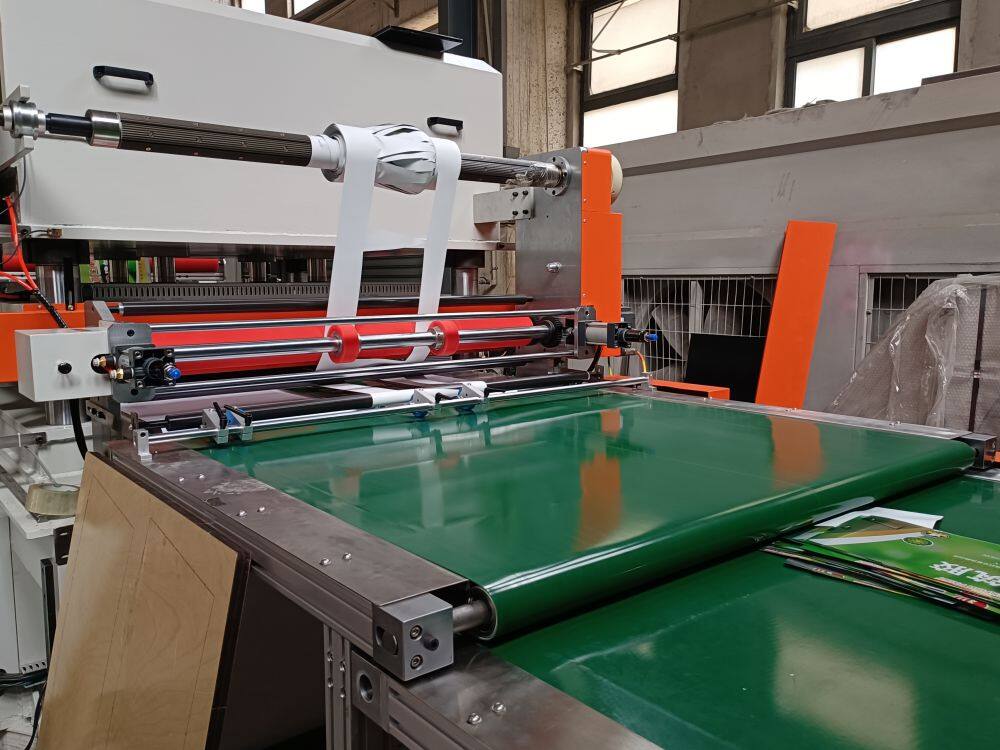

Conveyor belt  table , width 1200mm  length about 1200mm, 1 set



*The frame is welded and integrated to ensure the stability of the machine,Specially designed cutting positioning mechanism (imported), with accuracy of ± 0.01mm, can be used for full and half cutting, with fine adjustment accuracy of 0.01mm. The depth adjustment is automatically set in the touch screen, which is convenient for employees to operate.

*Precision feeding is equipped with Japanese servo motor to achieve feeding accuracy

*Safety cover, safety electric eye protection device, CE safety standard.




Product Tags: Die Cutting Machine , Label Die Cutting Machine , In Mould Label Die Cutting Machine
