Specifications
lab mixing milllow energy consumption
little space occupation
easy operation
low noise

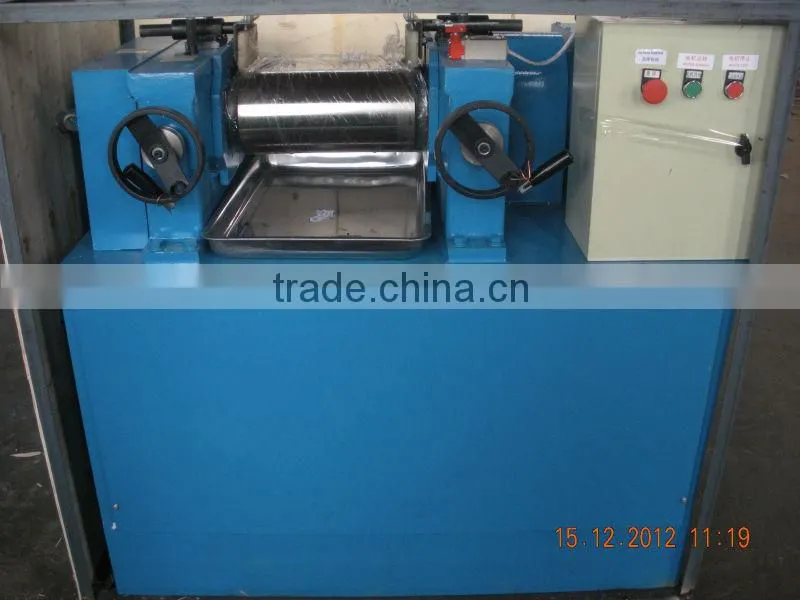

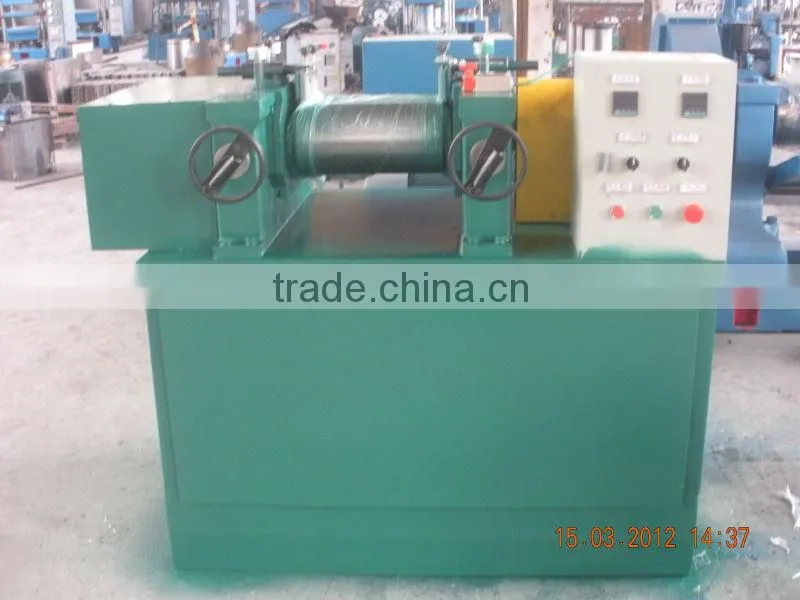

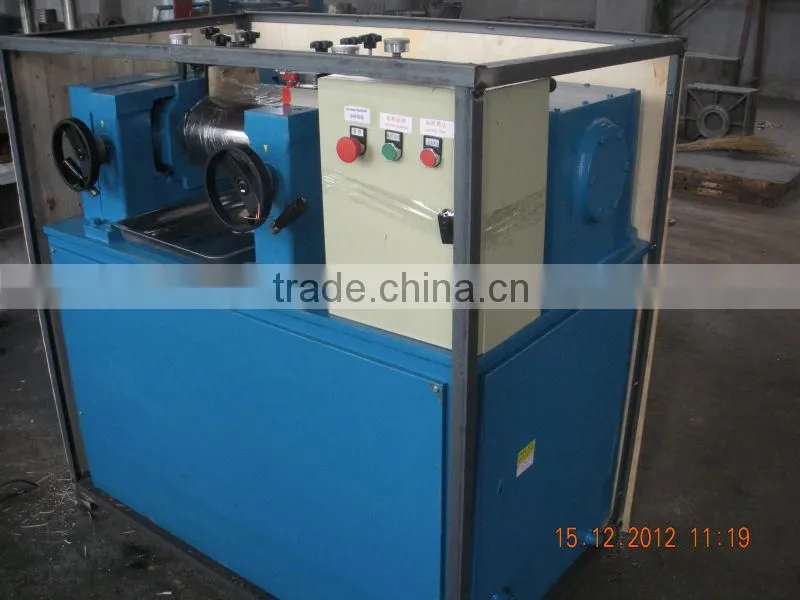

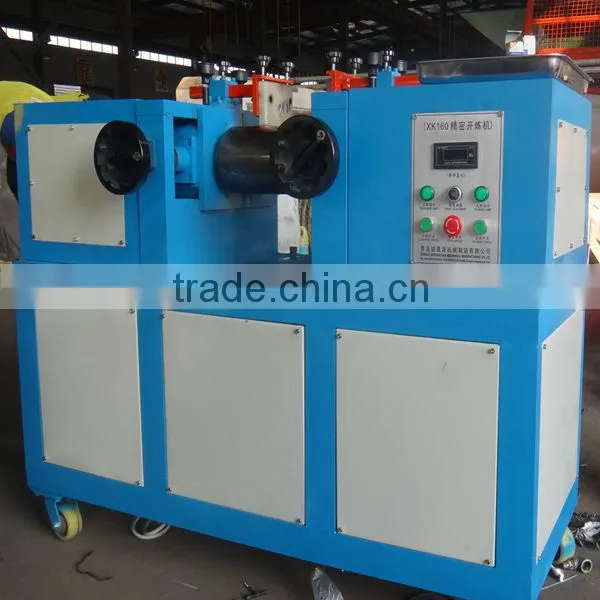

Lab rubber mixing mill
Introduction:
XK-160 Rubber Mixing Mill are just like mixing mills but they are smaller in size. The rollers of lab mixing mill are made of cast iron rollers and possesses a good surface hardness. The rollers of lab mixing mills are cooled by water and heated by the steam inside. Or simply heated by electricity. The mill has low operating cost and low power consumption. It is easy to install and its compact leaving space for maximum floor utilization.
General advantage
2.1. Automatic temperature and time controlsystem
2.2. High Mixing Performance
2.3. Uncompromising quality
2.4. Easy installation
Special features:
1. Steam heating and water cooling headers and branches neatly piped in enclosed case with valve box
2. Guides are tilting type and in split design
3. Rear roll with scraper blade
4. Stainless steel tray
Main Technical Parameters :
type |
DIA and length of roller(mm*mm) |
Ratio of front and back roll |
front roll speed(m/min) |
onetime feeding quantity(kg) |
driving power(kw) |
weight(t) |
overall dimension(mm) |
XK-160C |
160*320 |
1:1.22 |
8.03 |
1-2 |
5.5 |
1.1 |
L1100*W800*H1200 |
