Reclaimed Rubber Line/Rubber Internal Banbury Mixer

FOB Price

USD $50,000 - $75,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	CN HUATUO	Model Number	90L
Voltage	380V	Dimension(LWH)	Models varied
Weight	20Tons	Certification	CE
Warranty	Three Years	After-sales Service Provided	Engineers available to service machinery overseas

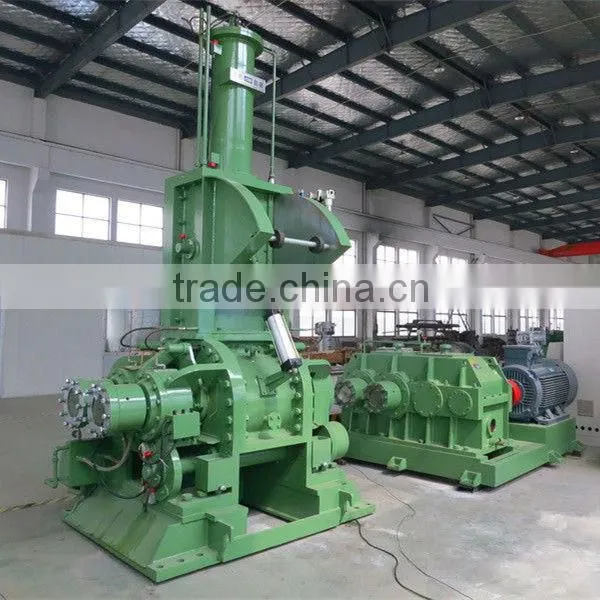

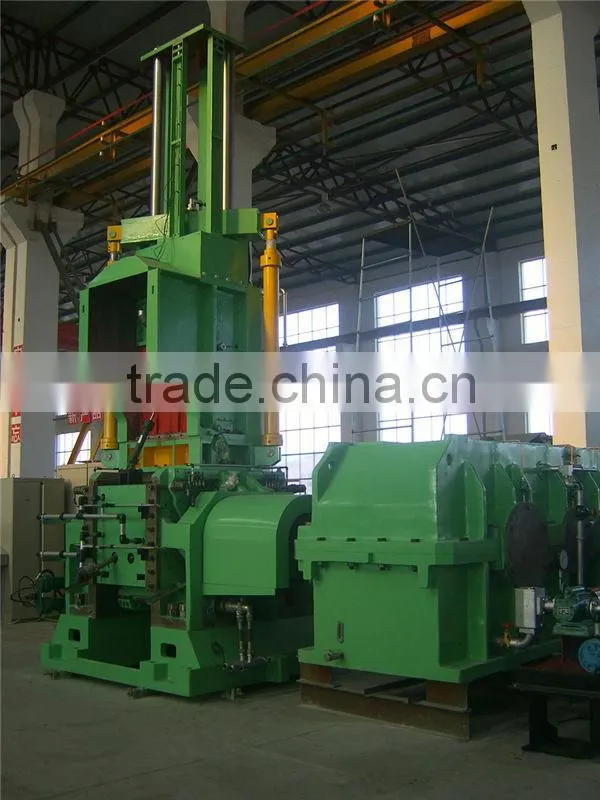

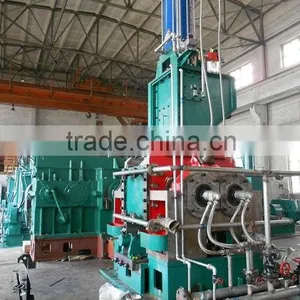

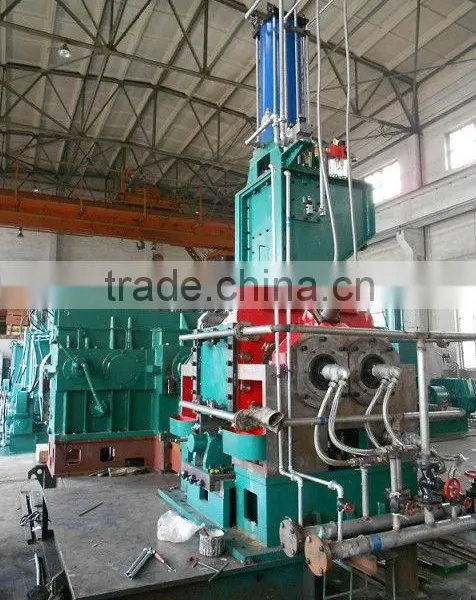

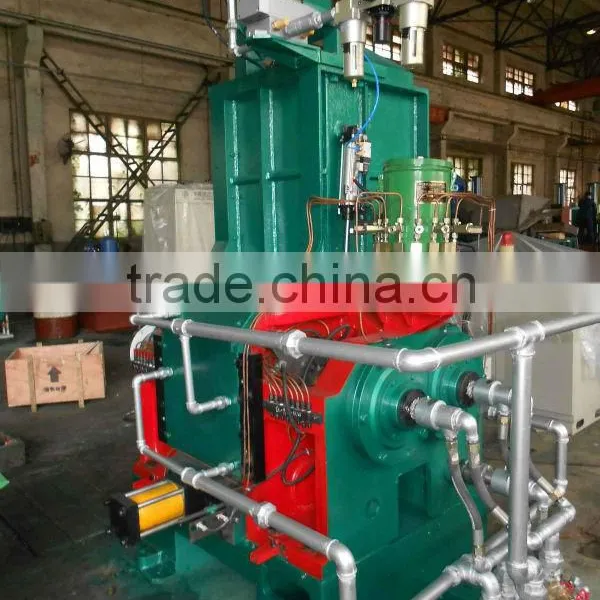

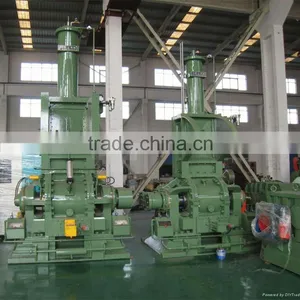

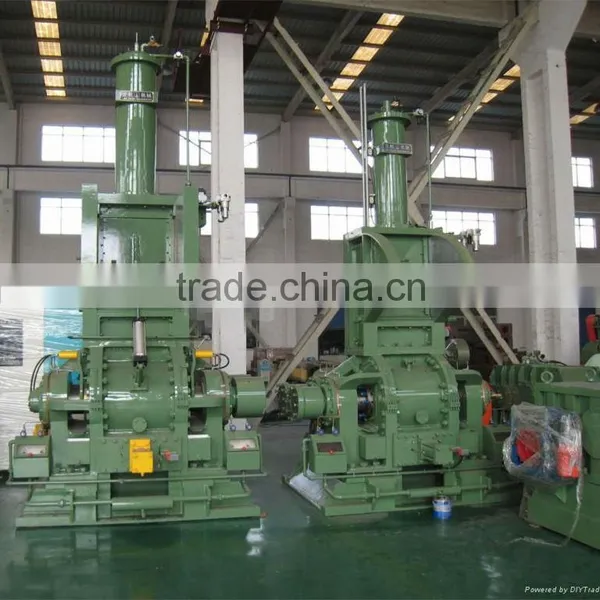

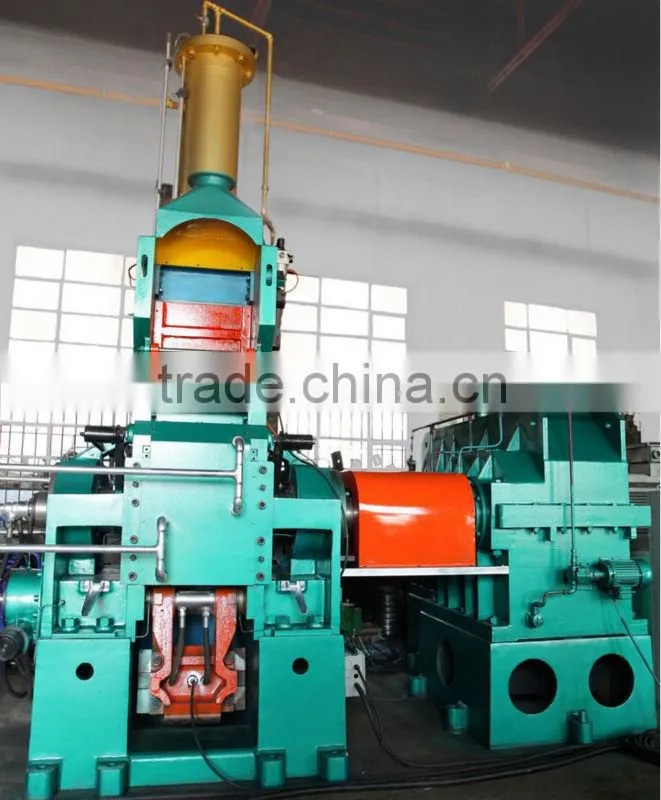

Rubber Internal Banbury Mixer

The machine is mainly used for mixing and plasticating of rubber or plastics.

Features:

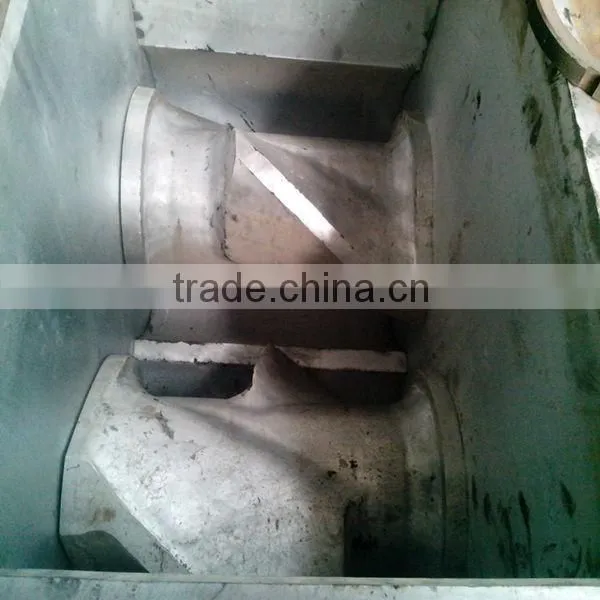

1.Different type of rotors can satisfy the mixing technical requirement.

2.Rotor chamber,discharge door and ram are circulation-cooled.with TCU, it can guarantee the quality of mixed rubber compound.

3.Touch surface of rotor,chamber,discharge door,ram and others contacting with mixing rubber is plated with chrome or wear-resistant hard metal.

4.Hydraulic type sealing structure gurrantees the closed grain of the adhesive meterials.

5.Upper ram is hydraulic or pneumatic pressure type, which can control the press continuously.

6.The floating weight is falling type, driven by gear and hydraulic oil tank with good sealing performance.

7.Various driving system matchs the customers’ requirement.

8.Control system is adopted with PLC system.

Technique Parameter

Modle			X(S)M-25×(10~100)	X(S)M-50×40	X(S)M-75×40	X(S)M-80×40	X(S)MN-90×(6~60)	X(S)M-110×40	X(S)M-110×(6~60)
Total volume of mixing chamber L			2-wings	2-wings	2-wings	2-wings	engagement	2-wings	4-wings
Working volume of mixing chamber L			20	30	50	60	56	82.5	81
Speed of rear rotor r/min			10~100	40	40	40	6~60	40	6~60
Speed ratio of rotors			1:1.16	1:1.15	1:1.15	1:1.15	1:1	1:1.15	1:1.15
Driving motor power kw			132	110	160	220	520	250	450
Consumption of compressed air m3/h			~15	~20	~30	~35	~140	~60	~60
Steam consumption m3/h			~90	~200	~280	~300		~720	~720
Pressure of compressed air MPa			0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Consumption of cooling water m³/h			~8	~10	~20	~25	~25	~35	~35
Pressure of cooling water (rubber mixing ) MPa			0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Steam pressure MPa			0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8		0.5~0.8	0.5~0.8
Dimensions	L	mm	3070	5910	6955	7000	7040	6620	7800
	W	mm	3135	2510	5100	2760	2865	2640	2855
	H	mm	3650	3200	4000	4500	4150	4392	4392
Gross weight		T	~7.8	~14.85	~22	~23	~23	~24	~24
Note:The machine is divided into left or right driven: and cooling by wator,heating by steam or hot oil.
