22'' Two Roll Rubber Mixing Mill







1, Features of 22" rubber open mixing mill



1.The roll is made of chilled cast iron of vanadium and titanium alloy,so the surface is hard and wearable; Smooth Surface,Highly Polished,Scratch proof by cutting knife etc.



2.This  rubber rolling mill has overload  protection devices,and the major components can't be damaged because of over loading.



3.Perfect emergency stop device can ensure the safety of personnel and equipment.



4.Stock pan is easy to clean up with dislodging device.



5.The transmission system adopts higher hard tooth flank dual axis reducer,which has compact structure,low noise and high efficiency.



6.Human nature designed operating system reduces labor intensity.



7, cooling system:  It has appropriate arrangement for cooling and heating,circulation of steam and cooling water can be through he rollers to control the temperature



8, All electrical connections are safe:short circuit is not possible by any means







 2.Advantage of  xk-400/16" rubber open mixing mill



1)Gap Adjustment Mode:





 Manual or Electrical (by motor)





2)Lubricating method:





 Manual or Auto;Grease or Thin oil







3)Emergency stop device:





 Pull Rod and Emergency button







4)Roller bearings:





 Nylon Bushing or Copper Sleeve or Spherical Roller Bearing











3,Purpose:



the rubber rolling mill mainly works for thermal refining, sheeting,plasticating and mixing of the rubber;it is the most widely-used equipment for production of rubber products.









4,Working Principle:







 the Glue Stock on the two rollers rotating reversely with different linear speed is pulled in the nip of the two rollers by the frictional force,with the reduction of the friction surface through the rollers,it is cut and extruded strongly;in the mean time,the chain scission and oxidation occurs under a certain temperature condition,increasing its plasticity,the aim of milling achieve.





5, Structure



1:lubrication device(front roller),



2:front roller,



3:emergency brake,



4:decelerator,



5:main motor



6:water inlet and water outlet



7:nip adjustment device



8:lubrication system



9:to connect material



10:base



11:driving gear



12:braking device



13:speed ratio gear



14:electrical control system and rack and so on





Model

XK-160

XK-250

XK-300

XK-360

XK-400

XK-450

XK-560

Diameter of rolls(mm)

160

250

300

360

400

450

560

Working length of rolls(mm)

320

620

750

900

1000

1200

1530

Linear speed of front roll(m/min)

11.24

14.4

15.1

16.25

18.65

24.5

29.09

Speed ratio of front & rear roll

1:1.35

1:1.17

1:1.27

1:1.25

1:1.27

1:1.27

1:1.2

Max. roll gap(mm)

4.5

8

8

10

10

15

20

Feeding capacity per batch(kg)

1-2

10-15

15-20

20-25

18-35

25-50

50-65

Driving motor power(kw)

7.5

18.5

22

30

37

55

75

Bearing body structure

Rolling bearing/nylon bushing/copper bushing

Lubrication mode

Grease/thin oil pump

Gap adjusting mode

Manual/electric

Overall dimension(mm)

L

1140

2900

3580

3780

4250

5000

5900

W

900

1500

1550

1850

1850

2280

2180

H

1370

1550

1695

1740

1760

1850

2000

Weight(ton)

1

3.2

5.2

6.5

7.3

12.5

22

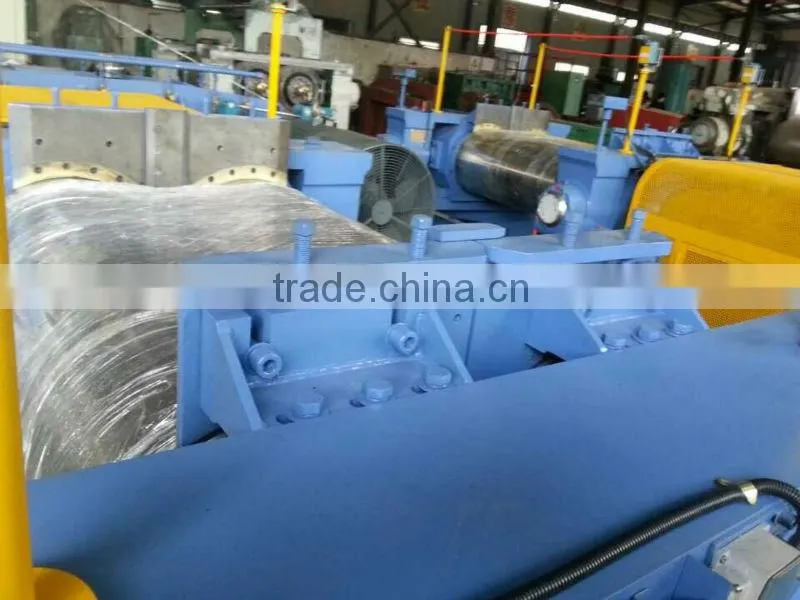

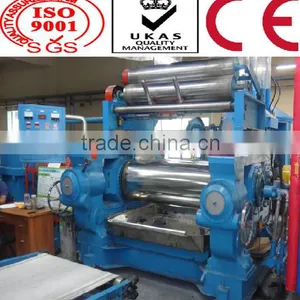

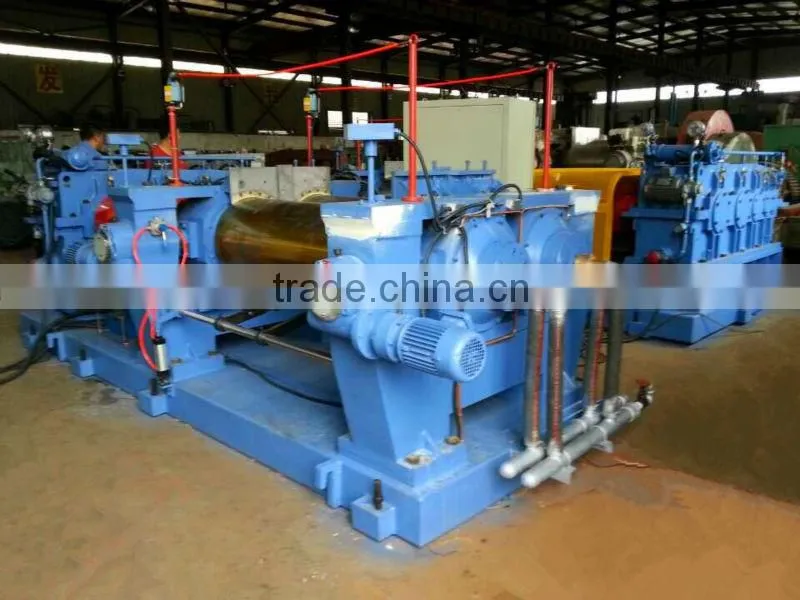

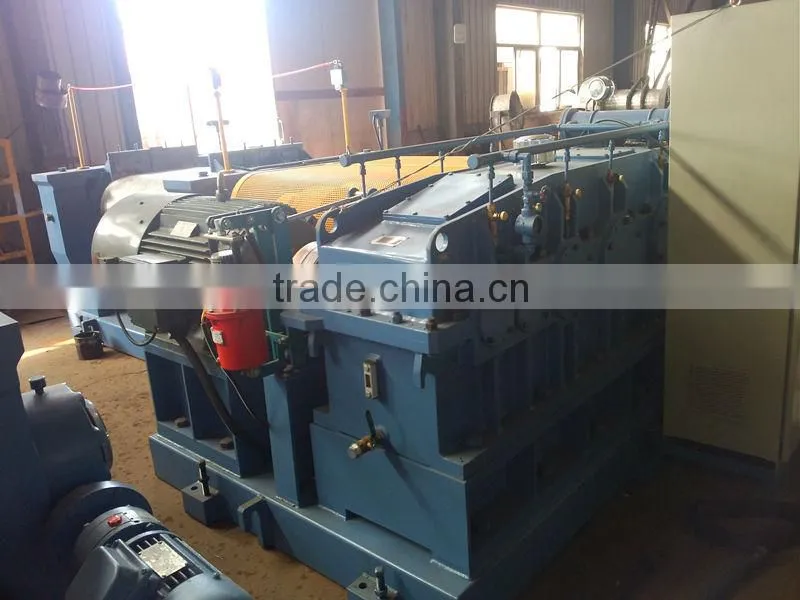

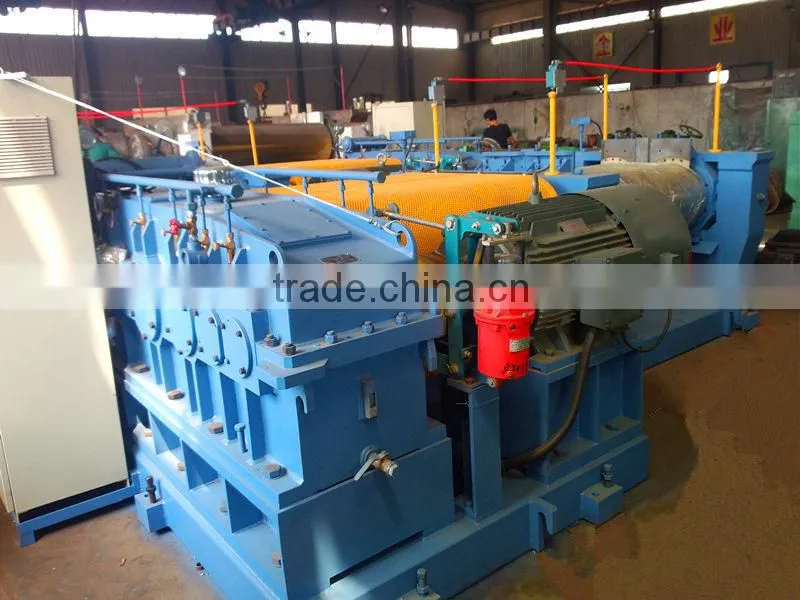

 Pictures for  double shaft whole machines

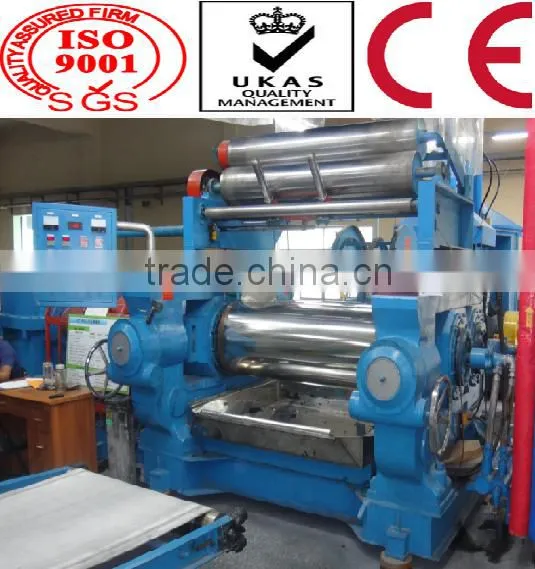

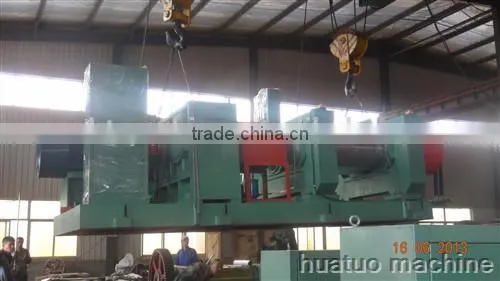

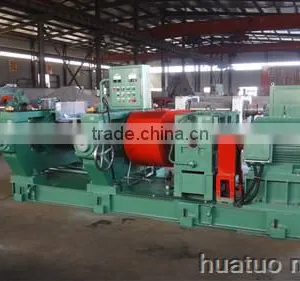

22'' two roll double shaft two roll rubber mixing mill22'' two roll double shaft two roll rubber mixing mill22'' two roll double shaft two roll rubber mixing mill



Picture for parts of mixing mill as follows:

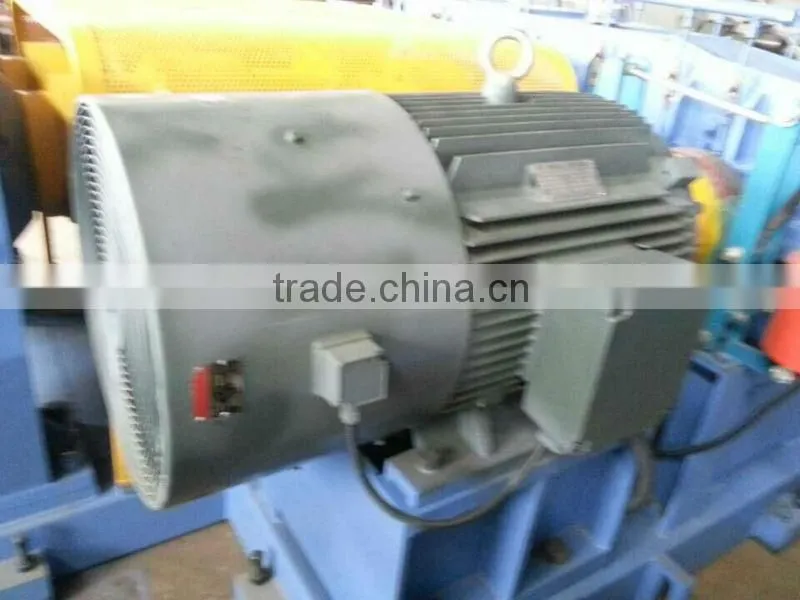

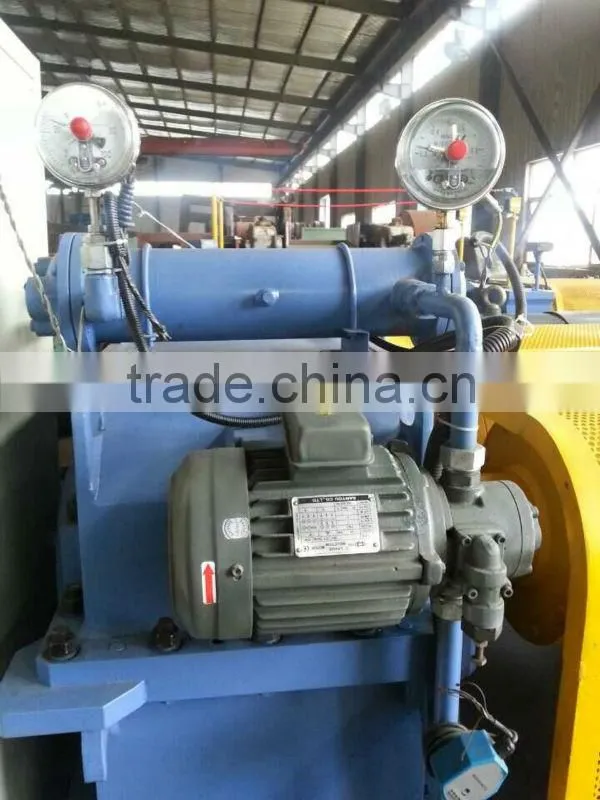

1: YVF type  Motor



22'' two roll double shaft two roll rubber mixing mill



2:  stock guide

22'' two roll double shaft two roll rubber mixing mill22'' two roll double shaft two roll rubber mixing mill



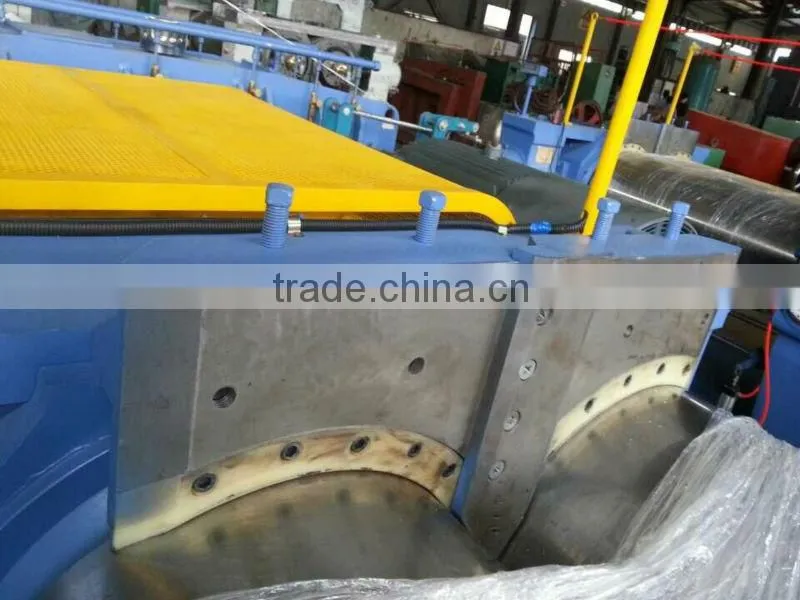

3:roller bearing bush



22'' two roll double shaft two roll rubber mixing mill



4: Closed Cooling Water System



22'' two roll double shaft two roll rubber mixing mill



22'' two roll double shaft two roll rubber mixing mill

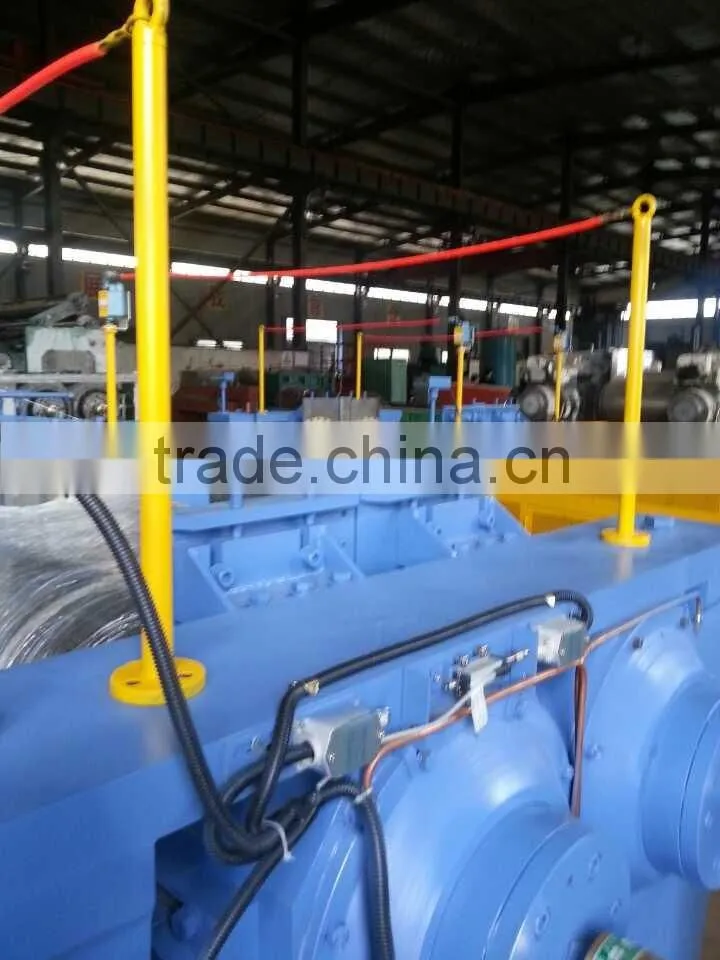

5: Emergency stop device





22'' two roll double shaft two roll rubber mixing mill



22'' two roll double shaft two roll rubber mixing mill

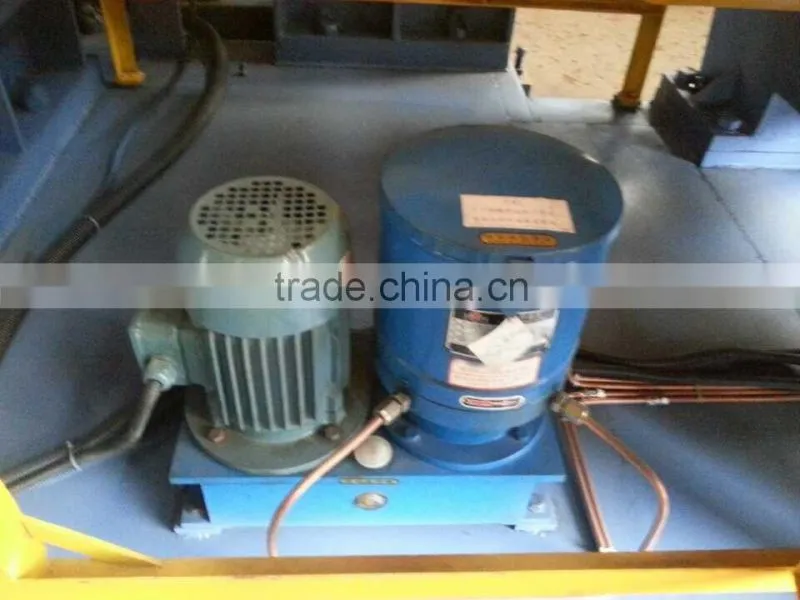

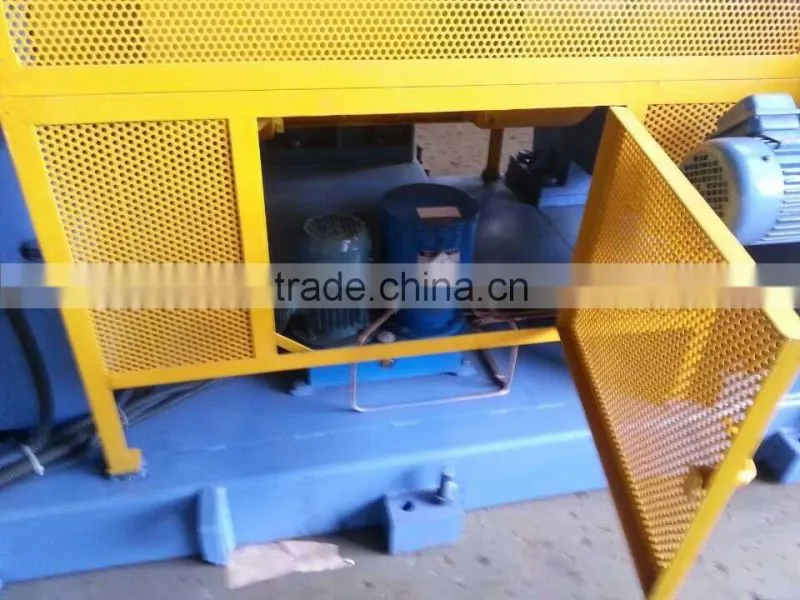

6: Automatic lubricate system



22'' two roll double shaft two roll rubber mixing mill22'' two roll double shaft two roll rubber mixing mill
