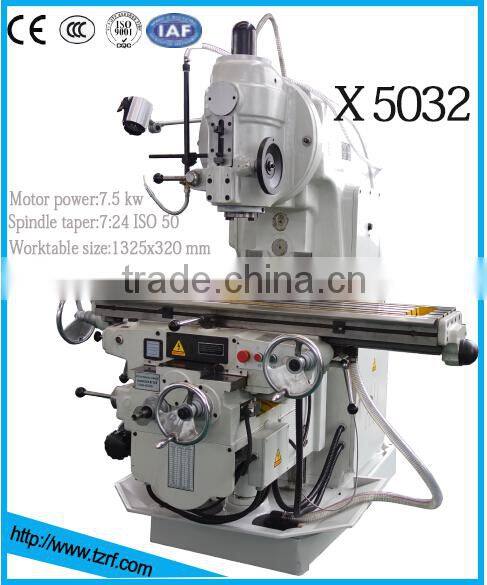

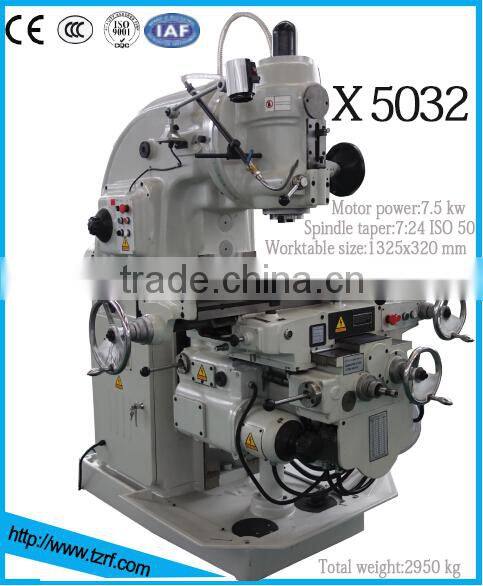

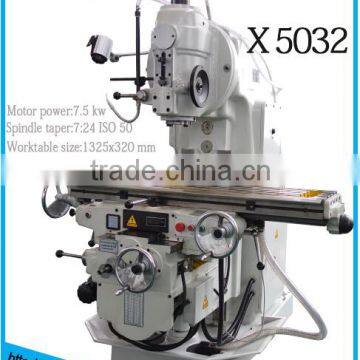

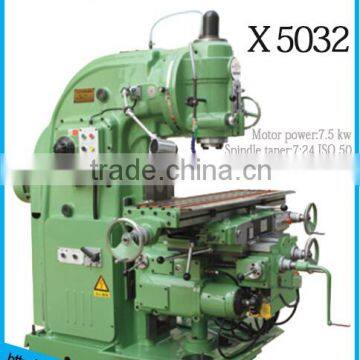

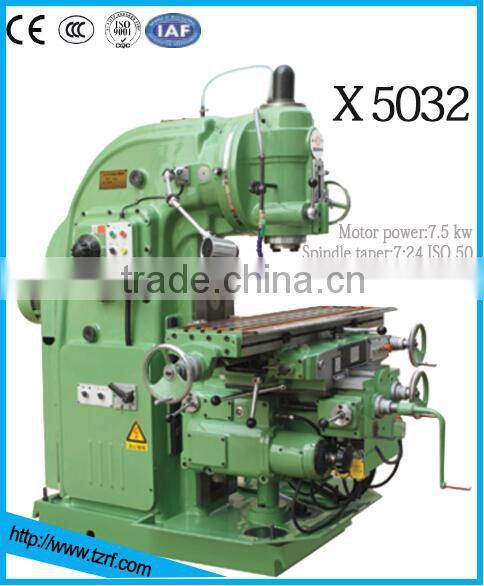

X5032 Vertical Knee-Type machine one more powerful metal cutting machine,it has high rigidity,wide range of spindle feed also can bear a heavy burden.The spindle taper hole can install many kinds of cylindrical cutter,disc cutter,form cutter,end milling cutter and so on,it is suitable for maching all parts plane,inclined plane,groove,hole etc,it is one ideal maching equipment for machinery manufacturering,mould,apparatus,instrument,car and motor car.
Main specification | X5032 | X5040 | |
Table size | 320 x 1325 mm | 400 x 1700 mm | |
Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 | |
Spindle bore | 29 mm | 29 mm | |
Distance from spindle nose to table surface | 60-410 mm | 30-500 mm | |
Distance from spindle axis to bed vertical guideway surface | 350 mm | 450 mm | |
T-slot(number/width/spacing) | 3/18/70 | 3/18/90 | |
Table max. longitudinal travel manual/automatic | 700/680 mm | 900/880 mm | |
Table max. cross travel manual/automatic | 255/240 mm | 315/300 mm | |
Table max. vertical travel manual/automatic | 350/330 mm | 385/365 mm | |
Table rapid speed longitudinal/cross/vertical | 2300/1540/770 mm/min | 2300/1540/770 mm/min | |
Max. turning angle of vertical milling head | ±45° | ±45° | |
Spindle travel | 70 mm | 85 mm | |
Number of spindle speed | 18(steps) | 18(steps) | |
Spindle speed range | 30~1500 r.p.m | 30~1500 r.p.m | |
Number of table feed | 18(steps) | 18(steps) | |
Main motor power | 7.5 KW | 11 KW | |
Feed motor power | 2.2 KW | 3 KW | |
Overall dimension | 2294 x 1770 x 1904 | 2556×2159×2258 | |
Net weight/Gross weight | 2900 kg/3200kg | 4250 KG/4350KG | |

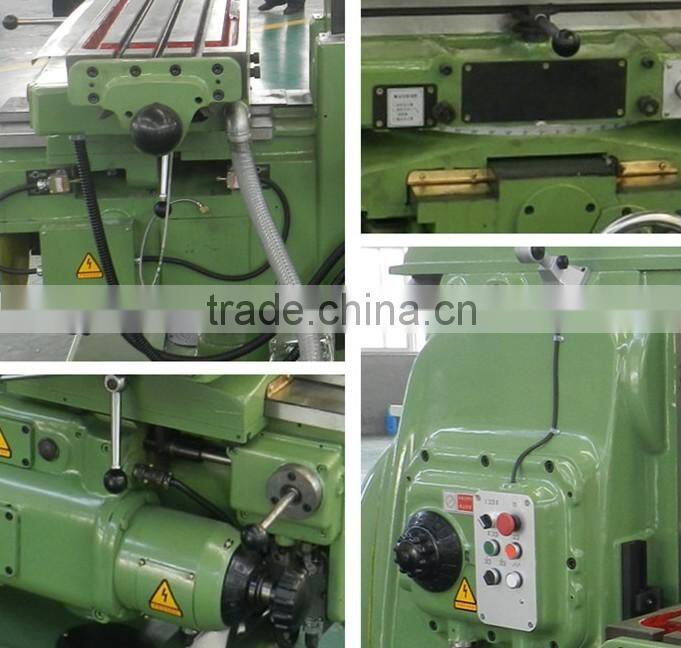

Machine features:
- Rectangular guideways;
- Hardened and ground table surface;
- Spindle swivels +/-45 degrees;
- Quill moves up and down

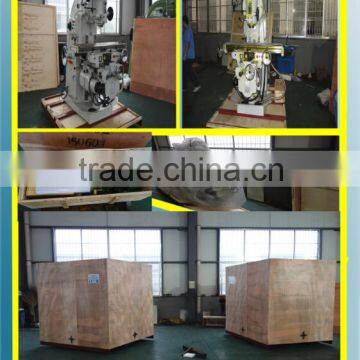

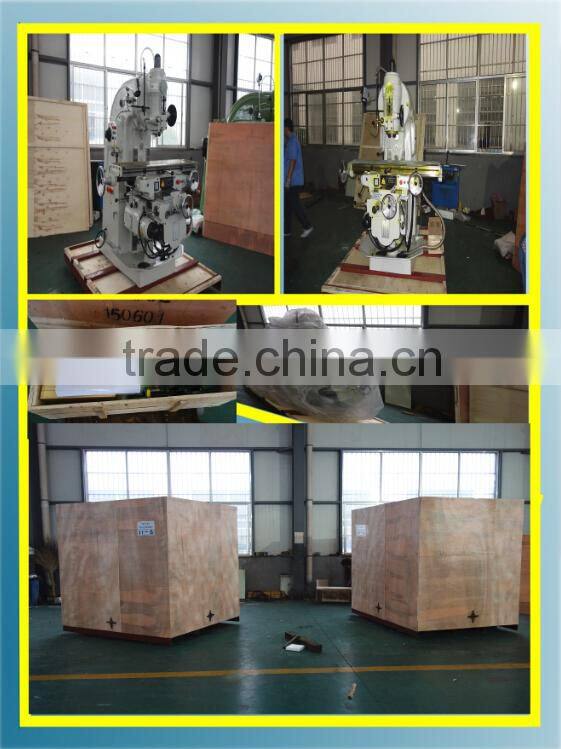

Packing&Shipping:
Machine model: X5032 NO.2 size milling machine
Type of package: Plywood case
Packing dimension: 2115X1710X2250mm (one set in one case)
N.W./G.W.: 2900/3100KGS
Suitable Container and quantity:
20' Standard Container: 3sets
40' Standard Container: 6sets
OUR SERVICES:
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
Technical support online service provided .
Technical files service provided.
Machine operation video provided
On-site training service provided.
Spare parts replacement and repair service provided.
All of the questions will be replied within 24 hours
FAQ:
Payment terms:
1. TT 30% advance payment before production, pay the balance before delivery
2. LC at sight
