Specifications
1.high precise2.wide machining range of workpiece
3.more durable use time
4.can install digital read out screen

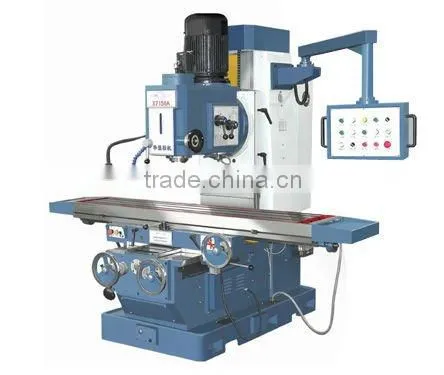

X7150 is a bed-type milling machine from our own design.It is used for processing the surface,slope,trench,hole and gear of small and medium size parts,which is also an ideal processing equipment in mechanical manufacturing line,metal mould line,instrument and apparatus line,car and other lines.
Item |
Model:X7150 |
Spindle taper |
ISO 50 |
Spindle to worktable(mm) |
130—630 |
Spindle center to column(mm) |
580 |
Spindle speed range(r.p.m) |
20—1600 |
Worktable size(mm) |
1800X420 |
Max. worktable travel(L/H/W)(mm) |
1400/460/530 |
Worktable T-slot(number/width/distance)(mm) |
3/18/100 |
Swivel angle of headstock(degree) |
20 |
Sleeve travel(mm) |
105 |
Main motor(kw) |
7.5 |
Power feed motor(kw) |
1.5 |
Coolant pump motor(w) |
90 |
Table feed range(mm/min) |
23.5---1180(L,H)11.75---590(V) |
Range moving speed(mm/min) |
2300(L,H) 1150(V) |
Speed of rapid traveling(mm/min) |
2300(L,H) 1150(V) |
Overall dimention(mm) |
2390X1860X2220 |
