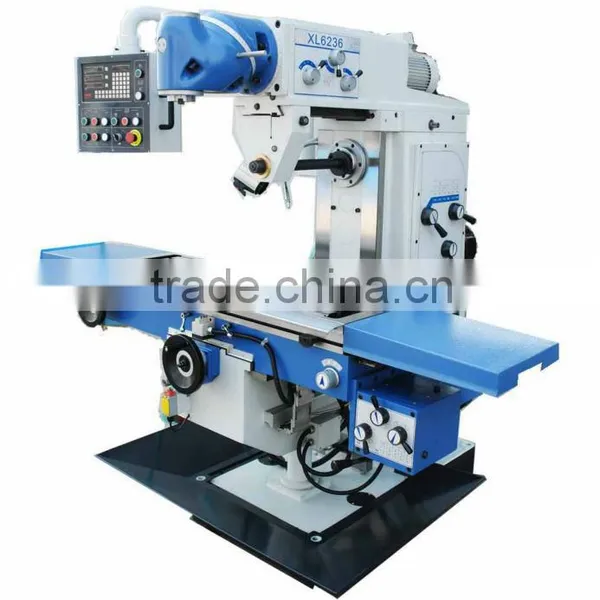

Universal Milling Machine XL6236

Name: Universal Milling Machine XL6236
Brand: HELI
SKU: 103162235

Negotiable MOQ: 4 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number XL6236

Type Vertical

CNC or Not Normal

Voltage 380V

Power(W) 2200 4000

Dimension(L*W*H) 2220*1790*2040

Weight 2400KG

Certification CE and ISO9001

Warranty 1 YEAR

Specifications

1.Rigid rectangular table guideway
2.Hardened and durable table surface
3.Automatic feeds on x, y axes

Specification			Unit	Technical parameters
Spindle taper				7:24 ISO40(V);7:24 ISO50(H)
Distance from spindle center line to column surface			mm	350~850
Distance from spindle nose to worktable			mm	210~710
Distance from spindle center line to worktable			mm	0~500
Distance from spindle center line to arm			mm	175
Spindle speed			r/min	11steps 35~1600 (V) ;12steps 60~1800 (H)
Worktable size			mm	1250×360
Worktable travel		Longitudinal	mm	1000
		Cross	mm	320
		Vertical	mm	300
Worktable longitudinal/ cross power feed			mm/min	8steps 15~370 ;Rapid:540
Worktable elevating power feed			mm/min	590
Worktable “T”slot	Number		mm	3
	Width		mm	18
	Distance		mm	80
Main motor			Kw	2.2 (V) 4 (H)
Worktable power feed motor			W	750
Worktable elevating motor			KW	1.1
Coolant pump			W	90
Coolant flow			L/min	25
Overall dimension (L×W×H)			mm	2220×1790×2040
Net weight			kg	2400
