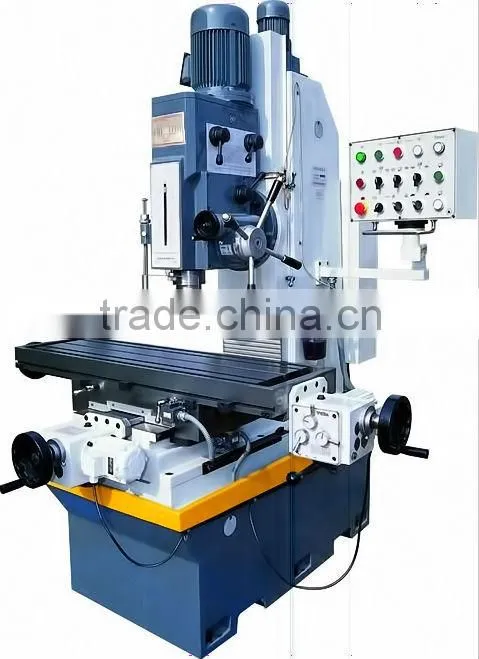

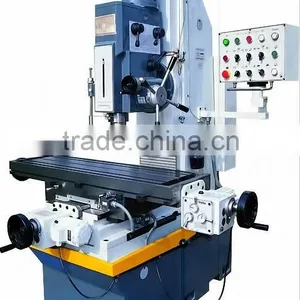

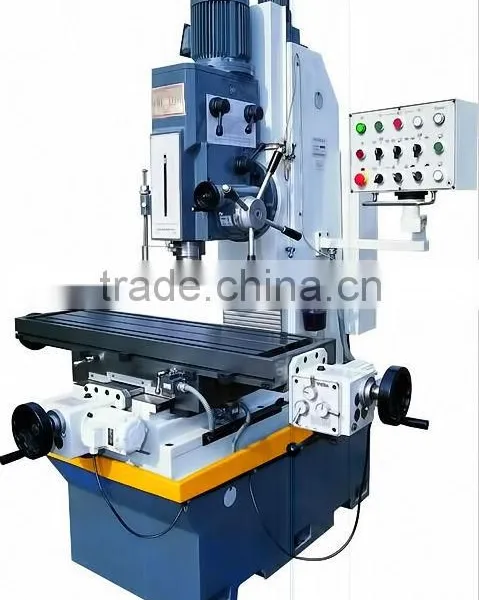

Bed-Type Milling and Drilling Machine XZ5150A
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HELI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Turret Milling Machine 3PHUS$ 2,500 - 2,900MOQ: 1 Set -
Small Turret Milling Machine 4HPUS$ 2,800 - 3,200MOQ: 1 Set
-
Vertical Knee-Type Milling Machine X5036BNegotiableMOQ: 1 Set
-
Vertical Milling Machine X5036BUS$ 5,300 - 6,000MOQ: 1 Set
-
Vertical and Horizontal Dual-purpose High-speed Milling Machine X6336NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HELI
Model Number
Z5150A
Type
Vertical
CNC or Not
Normal
Voltage
380V
Power(W)
2400
Dimension(L*W*H)
173*173*230
Weight
1950kg
Warranty
12months
Specifications
1.3 axis automatic spindle speed2.high precise and stable
3.high rigidity and hardened guide way
TABLE : |
Unit |
XZ5150A |
Table size |
mm |
1220×360 |
T slot |
no |
3 |
Size ( Width ) |
mm |
14 |
Centre distance |
mm |
95 |
Max. load of Table |
kg |
300 |
machining range : |
|
|
Longitudinal travel |
mm |
600 |
Cross travel |
mm |
360 |
Vertical travel |
mm |
500 |
MAIN SPINDLE : |
|
|
Spindle taper |
|
ISO40 |
quill travel |
mm |
180 |
spindle speed /step |
rpm |
94-2256/16 |
spindle axis to column surface |
mm |
400 |
spindle nose to table surface |
mm |
120-620 |
FEEDS : |
|
|
Longitudinal/cross feed |
mm / min |
24-720 |
Vertical |
|
1300 |
Longitudinal rapid speed |
mm / min |
1040 |
Rapid Traverse vertical |
|
1300 |
POWER : |
|
|
main motor |
kW |
1.5/2.4 |
feed motor |
kW |
0.37 |
elevating motor for headstock |
kW |
0.55 |
coolant motor |
kW |
0.04 |
others |
|
|
package dimension |
cm |
180×190×225 |
overall dimension |
cm |
173×173×230 |
N/W; G/W |
kg |
1750/1950 |
