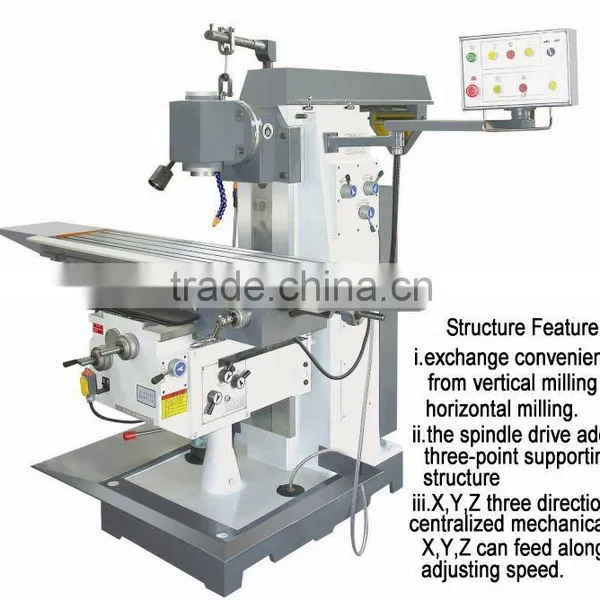

Multifunction Vertical Knee-Type Milling Machine X6032

Name: Multifunction Vertical Knee-Type Milling Machine X6032
Brand: HeLi
SKU: 103162163
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HeLi

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HeLi

Model Number X6032

Type Other, Vertical and Horizontal

CNC or Not Normal

Specifications

1.adopt rectangular guideway.2.spindle drive adopt three-point supporting structure.3.x,y,z centralized-control feed mechanical

X6032 VERTICAL MILLING MACINE

STUCTURE FEATURES:

exchange conveniently from vertical milling to horizontal milling.
The spindle drive adopt three-point supporting structure.
X,Y,Z centralized-control feed mechanically,it also can feed together with adjusting speed.
Lengthen the slide block(1000mm) with long worktable stroke and strong stability.

the main technical specifications:

SPECIFICATION	UNIT	X6032
Spindle taper		7:24 ISO40(V/H)
Distance between spindle nose and table surface	mm	0-500
Distance from spindle axis to vertical guideway	mm	320
Spindle speed range	r.p.m	40-1300(12steps)
Table size	mm	1500 x 320
Table travel	mm	1100 x 320 x 500
Mian motor power	kw	3/1.1/0.75/0.09
Cooling pump flow	L/min	25
N.W	kg	2300
