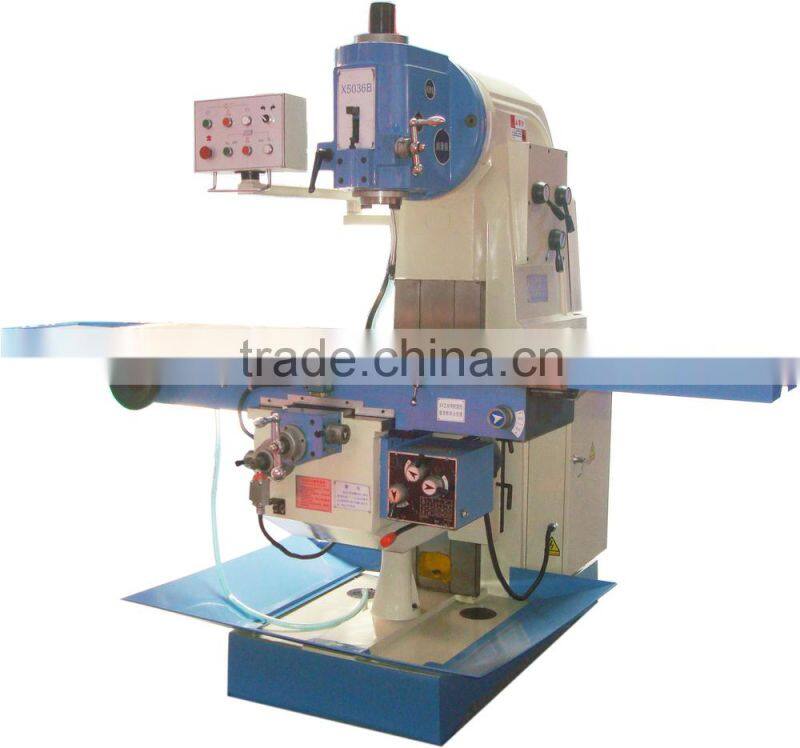

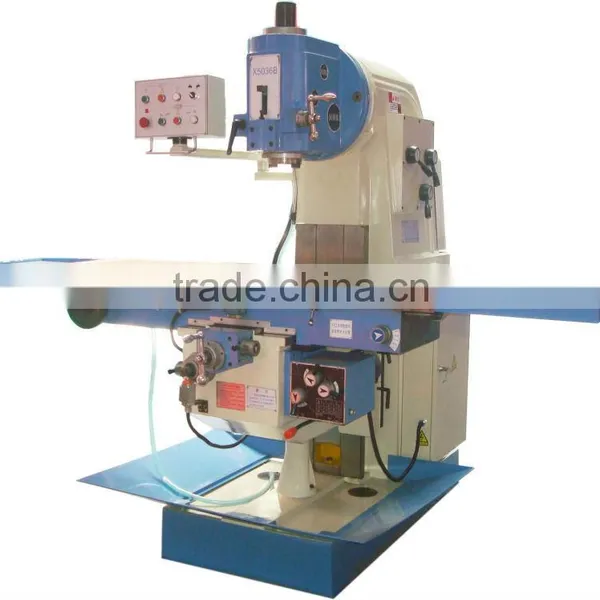

Vertical Knee-Type Milling Machine X5036B

Name: Vertical Knee-Type Milling Machine X5036B
Brand: HELI
SKU: 103162271
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number X5036B

Type Vertical

CNC or Not Normal

Voltage 380V/440V

Power(W) 4kw

Dimension(L*W*H) 1700 x 1680 x 1880mm

Weight 200KG

Certification ISO9001-2008

Warranty 12 months

After-sales Service Provided No overseas service provided

Specifications

1.the milling head can tilt 45.
2.X,Y,Z with power feed
3.the hardened table and guideway
4.dynamic braking stop reliable

Constructive Key Features:

The milling head can tilt ±45°.

The spindle adopt dynamic braking with large brake torque,stop fastly and reliable.

X,Y,Z axis with power feed.

X,Y,Z with high hardened and ground steel guideway,supported on precision bearings.

Lubricating manually can lubricate all the screw,guideway completely.

SPECIFICATION	UNIT	X5036B
Spindle taper		7:24ISO 50
Distance between spindle nose and worktable	mm	60-420
Range of spindle speed	r.p.m	60-1700
Table size	mm	1370 x 360
Table travel(horizontal/cross/vertical)	mm	1000/ 320/360
Speed of longitudinal,cross travel	mm/min	(8steps)12-370(rapid feed 550)
Speed of worktable vertical feed	mm/min	590
T-slot No./Width/Distance of rotary table	mm	3/18/80
Suspension girder travel	mm	---
Main motor power	kw	4
Motor power for worktable feed	w	750
Motor power for up&down table	w	1100
Motor of coolant pumps	w	90
Flow of coolant pumps	L/min	25
Overall Dimension	mm	1700 x 1680 x 1880
N.W/G.W	kg	2200/2500
